AAEON BOXER-6614 - Embedded Computers
003611-HW-AAEON-O11
Overview

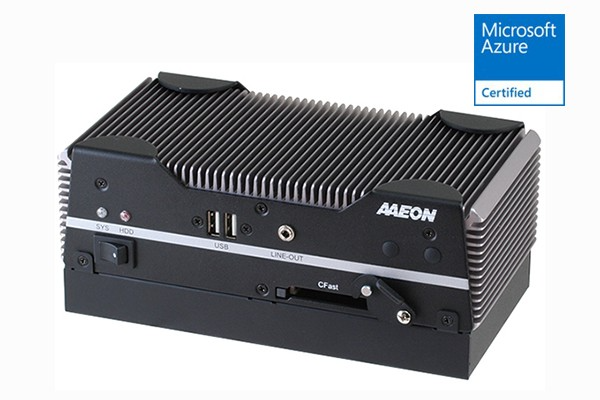

AAEON introduces the newest product in the Boxer series, BOXER-6614, which utilizes the Intel® Celeron® N2930 Quad Core 1.83 GHz SoC N2930/ Celeron® N2807 Dual Core 1.58 GHz (Optional): this embedded controller expands its graphics performance greatly with the newest generation of Celeron® processors.
| SYSTEM | |
| CPU | Intel® Celeron™ Processor N2930, 1.83 GHz |
| Chipset | Intel® System on Chip |
| System Memory | DDR3L 1333 SODIMM slot x 1 (Support Max. Capacity 8GB) |
| Display Interface | VGA, HDMI |
| Storage Device | CFast™, HDD/SSD |
| Ethernet | Intel® I210/I211, 10/100/1000Base-TX x 2 |

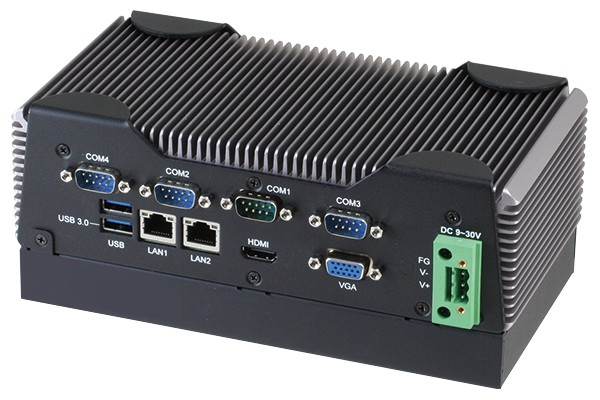

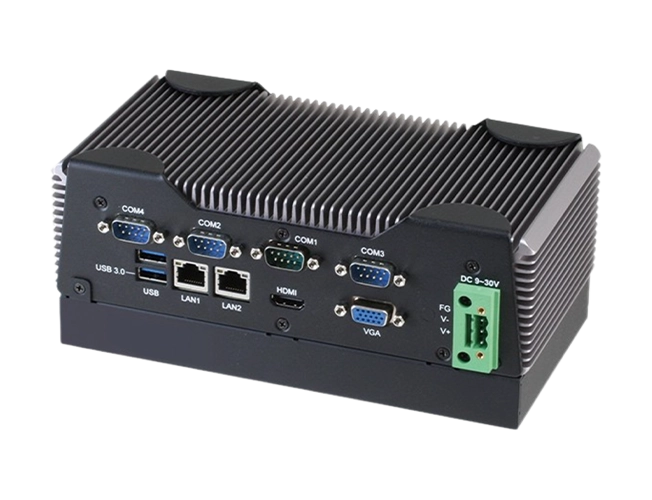

| I/O | RS-232/422/485 x 2 RS-232 x 2 USB 2.0 x 3 USB 3.2 Gen 1 x 1 VGA x 1 HDMI x 1 Line-out x 1 LAN x 2 CFast slot x 1 Antenna holes x 2 Power switch Power input |
| Expansion | Full-size Mini-Card x 1 (PCIE + USB, w/SIM slot) Half-size Mini-Card x 1 (PCIE + USB) |
| Indicator | Power LED HDD active LED |
| OS support | Windows® 10 Windows® 8.1 (32/64-bit) Windows® 7(32/64-bit) WES7/WES8 Linux Ubuntu 14.04/ Kernel 3.13.0 |
| POWER SUPPLY | |
| Power Requirement | 9 - 30V with 3-pin terminal block |
| MECHANICAL | |
| Mounting | Wallmount DIN Rail (Mounting kit is optional) |
| Dimensions (W x H x D) | 8.35" x 4.21" x 2.53" (212.15mm x 107mm x 64.2mm ) |
| Gross Weight | 6.6 lb (2.8 kg) |
| Net Weight | 4.4 lb (2 kg) |
| ENVIRONMENTAL | |
| Operating Temperature | -4°F ~ 131°F (-20°C ~ 55°C) with wide temperature CFast™ card -4°F ~ 140°F (-20°C ~ 60°C) with wide temperature HDD (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices) |
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| Storage Humidity | 95% @ 40°C, non-condensing |
| Anti-Vibration | 5 Grms/ 5 ~ 500Hz/ operation –CFast™ card 1 Grms/ 5~ 500Hz/ operation – HDD |
| Certification | CE/FCC class A, UL |
In this era of information explosion, the advertising of consumer products will not be confined to the family television, but will also spread to high-traffic public areas, like department stores, the bus, transportation station, the supermarket etc. The advertising marketing industry will resort to every conceivable mean to transmit product information to consumers. System integrators will need a multifunction device to satisfy commercial needs for such public advertising.
