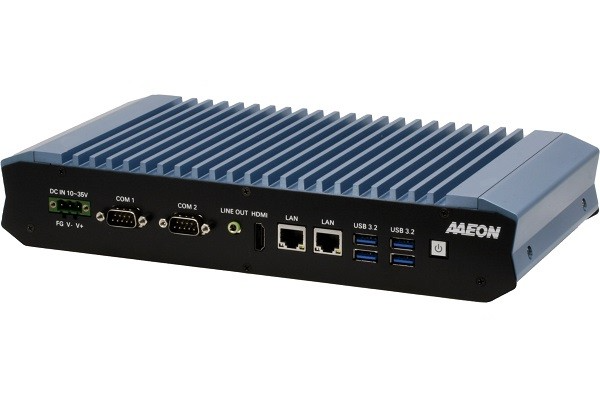

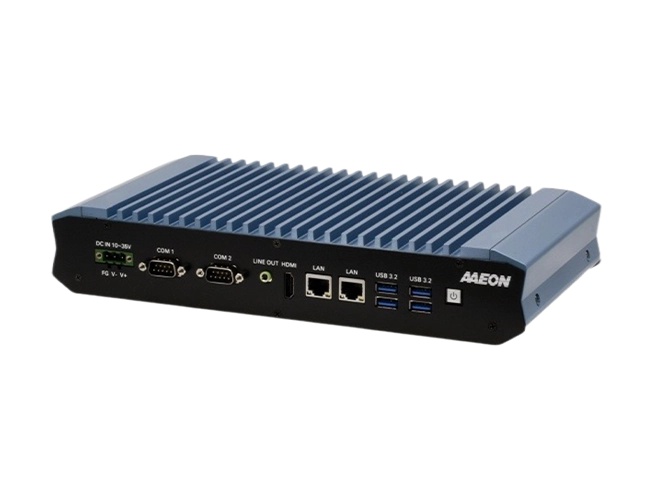

AAEON BOXER-6642-CML Fanless Embedded Box PC
TF:
003607-HW-AAEON-O07
Overview
BOXER-6642-CML Fanless Embedded Box PC with Socket Type 10th Generation IntelĀ® Coreā¢ Processor
| SYSTEM | |
| CPU | IntelĀ® Coreā¢ i9-10900TE IntelĀ® Coreā¢ i7-10700TE IntelĀ® Coreā¢ i5-10500TE IntelĀ® Coreā¢ i3-10100TE IntelĀ® CeleronĀ® G5900TE |
| Chipset | IntelĀ® Q470E |
| System Memory | DDR4 SO-DIMM x 2, up to 64GB |
| Display Interface | HDMI 1.4 x 1 |
| Storage Device | M.2 2280 slot x 1 (PCIex4), 2.5ā SATA SSD/HDD bay x 1 |
| Ethernet | IntelĀ® i211-AT x 1, i219-LM x 1 |
| I/O | HDMI x 1 RJ-45 x 2 for GbE LAN (i211-AT x 1, i219-LM x 1) USB 3.2 Gen 2 x 4 USB 2.0 x 2 DB-9 x 4 for RS-232/422/485 DB15 x 1 for 8 channel DIO Line out x 1 3 pin 10~35V Power Input x 1 Power Button with LED x 1 |
| Expansion | M.2 2230 E Key x 1 M.2 2280 M Key x 1 Full-Size Mini Card x1 (mSATA/PCIe switch by BIOS, default PCIe) SIM x 1 |
| Indicator | Power LED |
| OS support | WindowsĀ® 10 IoT Enterprise 64-bit Linux Ubuntu 20.04.2 |
| POWER SUPPLY | |
| Power Requirement | 10-35V DC-in with 3-pin terminal block |
| MECHANICAL | |
| Mounting | Wall Mount |
| Dimensions (W x H x D) | 11.58" x 5.98" x 2.11" (292.4mm x 152mm x 53.5mm) |
| Gross Weight | 8.4lb (3.8kg) |
| Net Weight | 6.2lb (2.8kg) |
| ENVIRONMENTAL | |
| Operating Temperature | 32Ā°F ~ 113Ā°F (0Ā°C ~ 45Ā°C) (35W CPU), according to IEC68-2-14 with 0.5 m/s AirFlow (w/Industrial wide Temp. SSD/RAM) |
| Storage Temperature | -40Ā°F ~ 176Ā°F (-40Ā°C ~ 80Ā°C) |
| Storage Humidity | 5 ~ 95% @ 40Ā°C, non-condensing |
| Anti-Vibration | 2 Grms/5 ~ 500Hz/operation (with SSD) |
| Anti-Shock | 50G, IEC 68-2-27, half sine, 11 ms duration (with SSD) |
| Certification | CE/FCC Class A |
The BOXER-6642-CML is the first fanless industrial PC from AAEON to offer the 10th Generation Intel Core i3/i5/i7/i9 and IntelĀ® CeleronĀ® processors (up to 35W TDP). Utilizing a socket-type desktop chipset, the system can be easily scaled or upgraded to match the performance needs of any application. Additionally, its slim design, only 54mm thick, allows it to fit into almost any tight space, allowing it to be deployed right where it needs to be.
