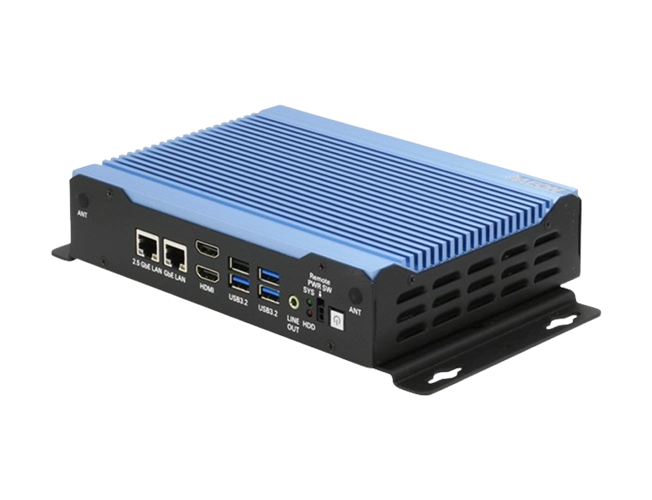

AAEON BOXER-6643-TGU Fanless Embedded Box PC
TF:
003606-HW-AAEON-O06
Overview
BOXER-6643-TGU Fanless Embedded Box PC with 11th Generation Intel® Core™ SoC Processor | Tiger Lake | BOXER-6643-TGU
| SYSTEM | |
| CPU | Intel® Core™ i7-1185G7E Intel® Core™ i5-1145G7E Intel® Core™ i3-1115G4E |
| Chipset | Intel® SoC |
| System Memory | DDR4 3200MHz SO-DIMM x 2, max 64GB |
| Display Interface | HDMI 2.0 x 2 |
| Storage Device | M.2 2280 M Key NVMe Slot x1 (PCIex4) 2.5" SATA Drive Bay x1 |
| Ethernet | RJ-45 x 2 for 1G/2.5GbE LAN (i219x1, i225x1) |

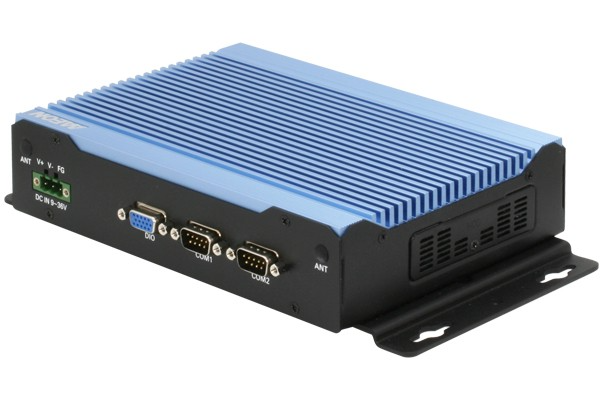

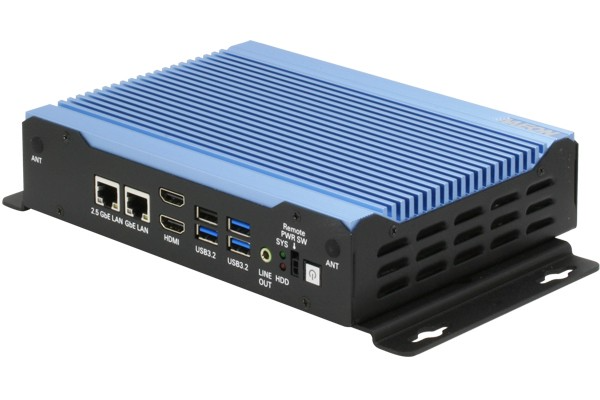

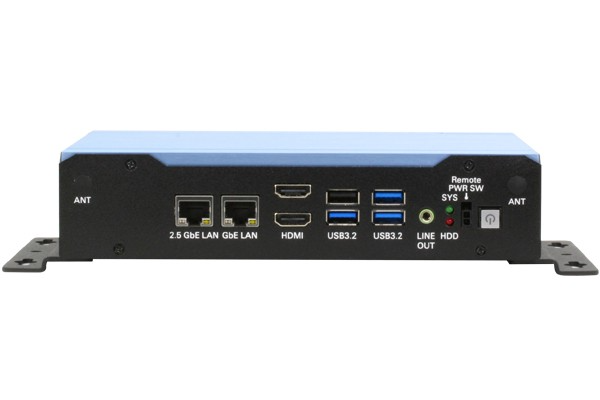

| I/O | HDMI 2.0 x 2 RJ-45 x 2 for 1G/2.5GbE LAN (i219 x 1, i225 x 1) USB Type-A x3 for USB3.2 Gen2 USB Type-A x1 for USB 2.0 DB-9 x 2 for RS-232/422/485 DB15 x1 Male for Digital I/O 8-channel Line out x 1 3 pin 9~36V Power Input x 1 Power Button with LED x 1 |
| Expansion | M.2 3052 B Key x 1 (for 5G module) Full-Size Minicard x1 (PCIe + USB / SATA, Default PCIe + USB) SIM Slot x 1 |
| Indicator | Power / System LED |
| OS support | Windows® 10 IoT 64-bit Window 10 Pro Linux Ubuntu 20.04.2 |
| POWER SUPPLY | |
| Power Requirement | DC-in 9-36V x1 for 3-pin Terminal Block |
| MECHANICAL | |
| Mounting | Wall Mount |
| Dimensions (W x H x D) | 9.84” x 5.62” x 2.03” (250 x 143 x 51.5) with bracket 7.87” x 5.62” x 1.75” (200 x 143 x 44.5) w/o bracket |
| Gross Weight | 4.4 lb (2.0 kg) |
| Net Weight | 3.3 lb (1.5 kg) |
| ENVIRONMENTAL | |
| Operating Temperature | -4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Storage Humidity | 5 ~ 95% @ 40°C, non-condensing |
| Anti-Vibration | 3 Grms/ 5 ~ 500Hz/ operation (with SSD) |
| Anti-Shock | 50G, IEC 68-2-27, half sine, 11 ms duration (with SSD) |
| Certification | CE/FCC Class A |
The BOXER-6643-TGU brings the power of 11th Generation Intel® Core™ U processors to a compact, rugged platform that delivers greater performance and capabilities over previous generations. The system supports up to 64GB of memory to unlock the full potential of the system’s processing capabilities. Along with the Intel® Iris® Xe embedded graphics, users can leverage the GPU to power AI and Edge Computing industrial applications, or high definition graphics in digital signage and kiosk applications.
