AAEON BOXER-6645-ADS Fanless Embedded Box PC with Socket Type
TF:
003605-HW-AAEON-O05
Overview
BOXER-6645-ADS Fanless Embedded Box PC with Socket Type 12th/13th Generation IntelĀ® Coreā¢ Processors
| SYSTEM | |
| CPU | 13th Generation IntelĀ® Coreā¢ Processors: IntelĀ® Coreā¢ i9-13900TE, IntelĀ® Coreā¢ i9-13900E, IntelĀ® Coreā¢ i7-13700TE, IntelĀ® Coreā¢ i7-13700E, IntelĀ® Coreā¢ i5-13500TE, IntelĀ® Coreā¢ i5-13500E, IntelĀ® Coreā¢ i3-13100TE, IntelĀ® Coreā¢ i3-13100E 12th Generation IntelĀ® Coreā¢/CeleronĀ® Processors: IntelĀ® Coreā¢ i9-12900E, IntelĀ® Coreā¢ i7-12700TE, IntelĀ® Coreā¢ i7-12700E, IntelĀ® Coreā¢ i5-12500TE, IntelĀ® Coreā¢ i5-12500E, IntelĀ® Coreā¢ i3-12100TE, IntelĀ® Coreā¢ i3-12100E, IntelĀ® CeleronĀ® Processor G6900TE, IntelĀ® CeleronĀ® Processor G6900E |
| Chipset | IntelĀ® H610E/Q670E |
| System Memory | DDR5 4800MHz SODIMM x 2, up to 64GB |
| Display Interface | HDMI 1.4b (Type-A) x 2 DP 1.4a x 2 *A2 model supports four simultaneous display outputs *A1 model supports three simultaneous display outputs |
| Storage Device | 2.5ā SATA 6Gb/s Drive Bay x 2 (A2 SKU supports RAID 0, 1) M.2 2280 M-Key x 1 (NVMe, extra heatsink required, refer to optional accessories) (A2 Model) |
| Ethernet | IntelĀ® I210-AT, 10/100/1000 Base-TX x 2 IntelĀ® I219-LM, 10/100/1000 Base-TX x 1 IntelĀ® I226-LM, 2.5GbE Base-TX x 1 |
| I/O | USB 3.2 Gen 2 (5Gbps) x 4 (A1 Model) USB 3.2 Gen 2 (10Gbps) x 8 (A2 Model) USB 2.0 x 4 (A1 Model) Audio x 1 (MIC-in, Line-out) DB-9 x 6 for RS-232/422/485 SMA Antenna Hole x 6 DIO x 8 |
| Expansion | M.2 2230 E-Key x 1 for WiFi module M.2 3052 B-Key x 1 for 4G/5G module |
| Indicator | System LED x 1 HDD LED x 1 |
| OS support | WindowsĀ® 10 IoT Enterprise 64-bit WindowsĀ® 11 PRO 64-bit Linux Ubuntu 20.04 (Kernel 15.5 or above) |
| POWER SUPPLY | |
| Power Requirement | 3-pin DC Input 12~24V |
| MECHANICAL | |
| Mounting | Wall Mount |
| Dimensions (W x H x D) | 10.39" x 3.8" x 7.33" (264mm x 80.92mm x 186.2mm) |
| Gross Weight | 11.7 lb (5.3 kg) |
| Net Weight | 9.5 lb (4.3 kg) |
| ENVIRONMENTAL | |
| Operating Temperature | -4Ā°F ~ 122Ā°F (-20Ā°C ~ 50Ā°C), IEC68-2 with 0.5 m/s AirFlow (w/Industrial wide Temp. SSD/RAM)(TDP 65W CPU) -4Ā°F ~ 140Ā°F (-20Ā°C ~ 60Ā°C), IEC68-2 with 0.5 m/s AirFlow (w/Industrial wide Temp. SSD/RAM) Memory (Max. 32GB)/Storage (TDP 35W CPU) |
| Storage Temperature | -40 Ā°F ~ 176Ā°F (-40Ā°C ~ 80Ā°C) |
| Storage Humidity | 5 ~ 95% @ 40Ā°C, non-condensing |
| Anti-Vibration | 3 Grms/ 5 ~ 500Hz/ operation ā SSD 1 Grms/ 5 ~ 500Hz/ operation ā HDD |
| Anti-Shock | 50G, IEC68-2-27, half sine, 11ms duration (with SSD) |
| Certification | CE/FCC Class A |

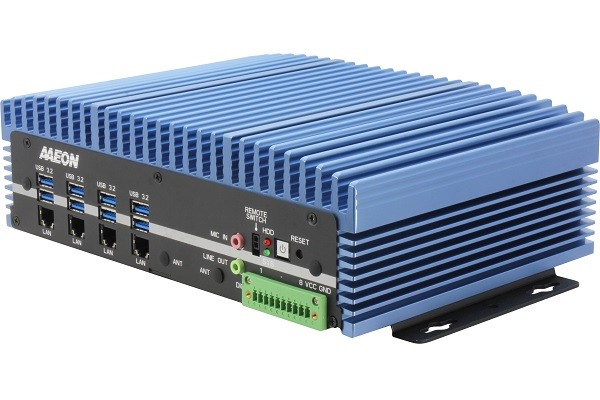

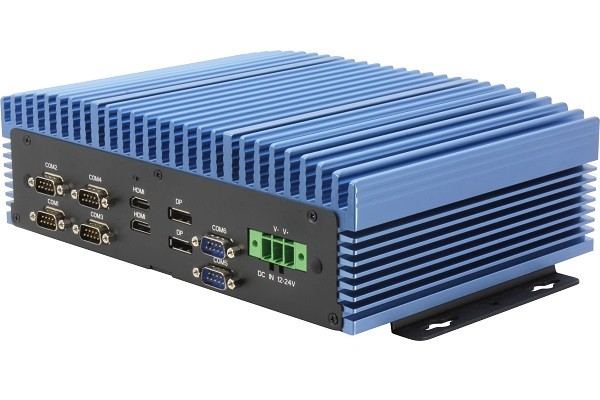

The BOXER-6645-ADS contains exceptional processing capabilities of up to 16 cores and 24 threads with 12th Generation IntelĀ® Coreā¢ i3/i5/i7/i9 Processor platforms, providing limitless potential for applications that demand high-performance computing, alongside a rich I/O featuring four independent display interfaces for A2 model,A1 model supports three independent display and multiple LAN ports within a rugged, fanless chassis.
