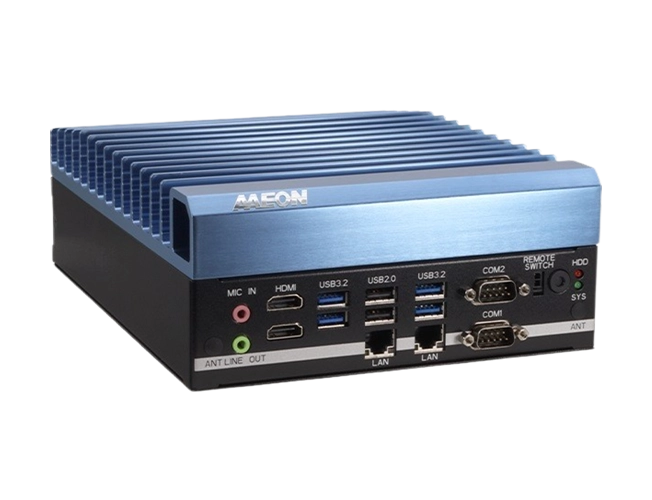

AAEON BOXER-6645U-RPL Fanless Embedded Box PC
-
NG # 003602-HW-AAEON-O02
Manufactured by:
BOXER-6645U-RPL Fanless Embedded Box PC with Socket Type 12/13/14th Generation Intel® Core™ Processor
Specification
SYSTEM CPU 12/13/14th Generation Intel® Core™ LGA 1700 socket-type Processor, Max TDP 65W
13th Generation Intel® Core™ Processors:
Intel® Core™ i9-13900TE, Intel® Core™ i9-13900E
Intel® Core™ i7-13700TE, Intel® Core™ i7-13700E
Intel® Core™ i5-13500TE, Intel® Core™ i5-13500E
Intel® Core™ i3-13100TE, Intel® Core™ i3-13100E
14th Generation Intel® Core™ Processors:
Intel® Core™ i9-14900, Intel® Core™ i9-14900T
Intel® Core™ i7-14700, Intel® Core™ i7-14700T
Intel® Core™ i5-14500, Intel® Core™ i5-14500T
Intel® Core™ i3-14100, Intel® Core™ i3-14100TChipset Intel® H610E System Memory DDR5 SODIMM x 2, up to 64GB Display Interface HDMI x 2, 4K x 2K @30Hz Storage Device 2.5” SATA Drive Bay x 2
M.2 2280 M-Key x 1 (PCIe Gen 3 [x4]) for NVMeEthernet Intel® I219-LM, GbE RJ-45 x 1

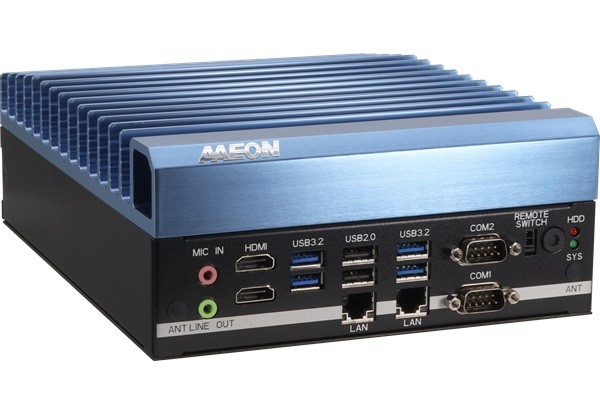

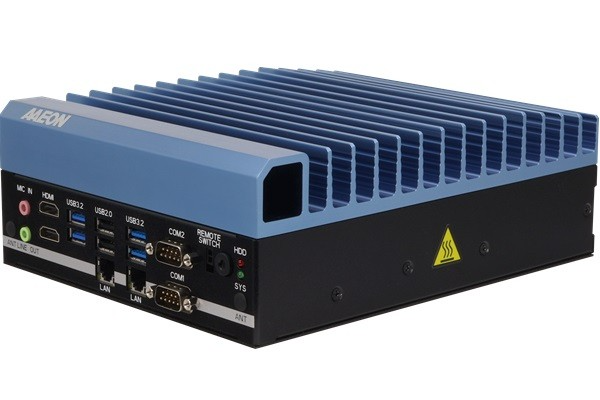

Intel® I226-LM, 2.5GbE RJ-45 x 1I/O USB 3.2 Gen 2 x 4, USB 2.0 x 2
DB-9 x 2 for RS-232/422/485
Audio x 1 (Mic-in/Line-out)
Power Button with power LED x 1
Remote Power On/Off x 1Expansion M.2 2280 M-Key x 1 (For NVMe Storage)
M.2 2230 E-Key x 1 (for Wi-Fi/Bluetooth)
Full Size MiniPCIe x 1 (optional for mSATA)
Onboard TPM 2.0Indicator System / Storage OS support Windows® 10 IoT Enterprise 64-bit
Windows® 11 PRO 64-bit

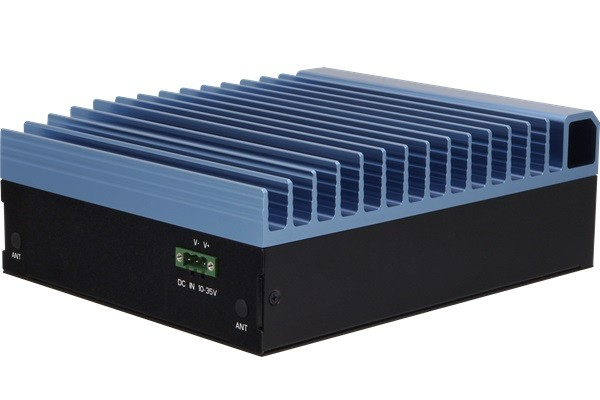

Linux Ubuntu 22.04POWER SUPPLY Power Requirement 3-pin DC Input 10~35V MECHANICAL Mounting Wallmount Dimensions (W x H x D) 7.09" x 3.04" x 8.66" (180mm x 77.2mm x 220mm)
8.43" x 3.31" x 8.66" (214mm x 84.2mm x 220mm) with bracketsGross Weight 8.59 lb (3.9 kg) Net Weight 6.39 lb (2.9 kg) ENVIRONMENTAL Operating Temperature -13°F ~ 131°F (-25°C ~ 55°C), IEC60068-2 with 0.7 m/s AirFlow, with wide temperature memory/storage (TDP 65W CPU)
-13°F ~ 158°F (-25°C ~ 70°C), IEC60068-2 with 0.7 m/s AirFlow, with wide temperature memory/storage (TDP 35W CPU)Storage Temperature -40˚F ~ 176˚F (-40˚C ~ 80˚C) Storage Humidity 5 ~ 95% @ 40˚C, non-condensing Anti-Vibration IEC60068-2-64, 3 Grms/ 5 ~ 500Hz/ operation (with SSD) Anti-Shock 50G, IEC60068-2-27, half sine, 11ms duration (with SSD) Certification CE/FCC Class A
Description
Built for optimum performance, the BOXER-6645U-RPL breaks across generations with support for 12th, 13th, and 14th Gen Intel® Core™ socket type processors, 10V to 35V power input range with power protection, and a wealth of interfaces conveniently grouped for maximum ease of deployment.
