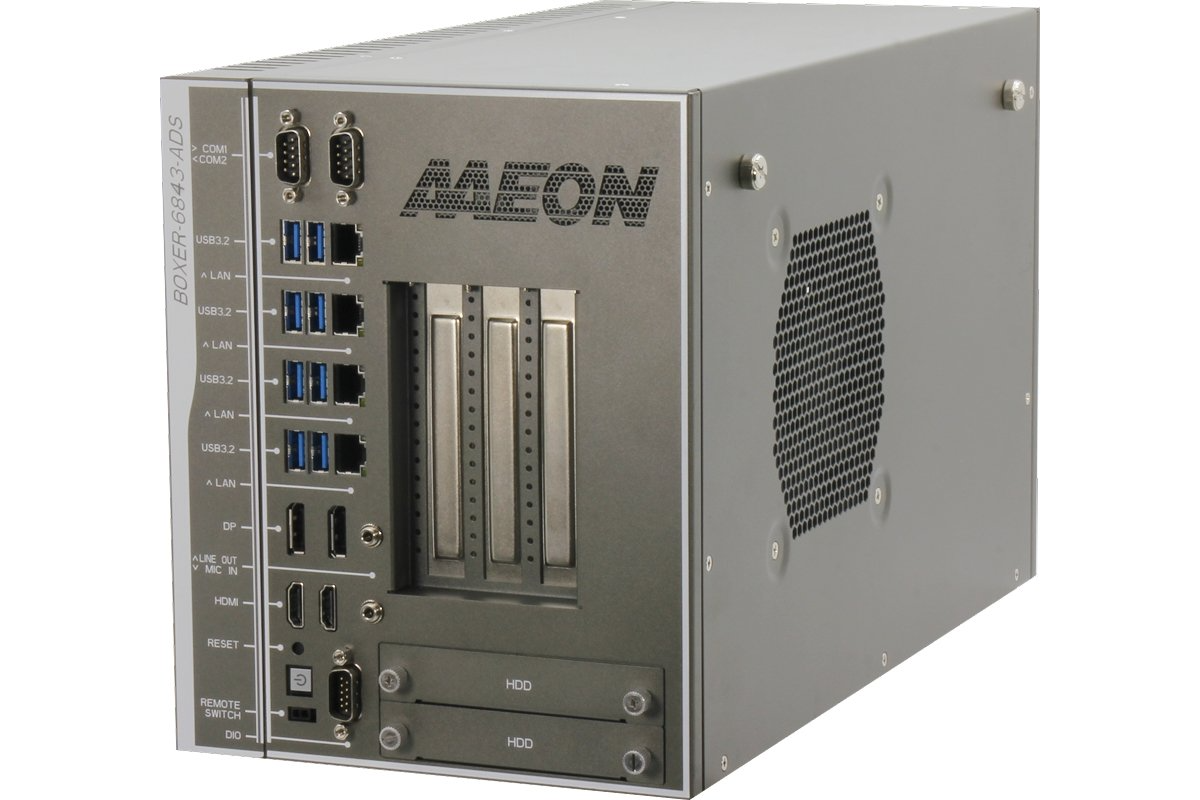

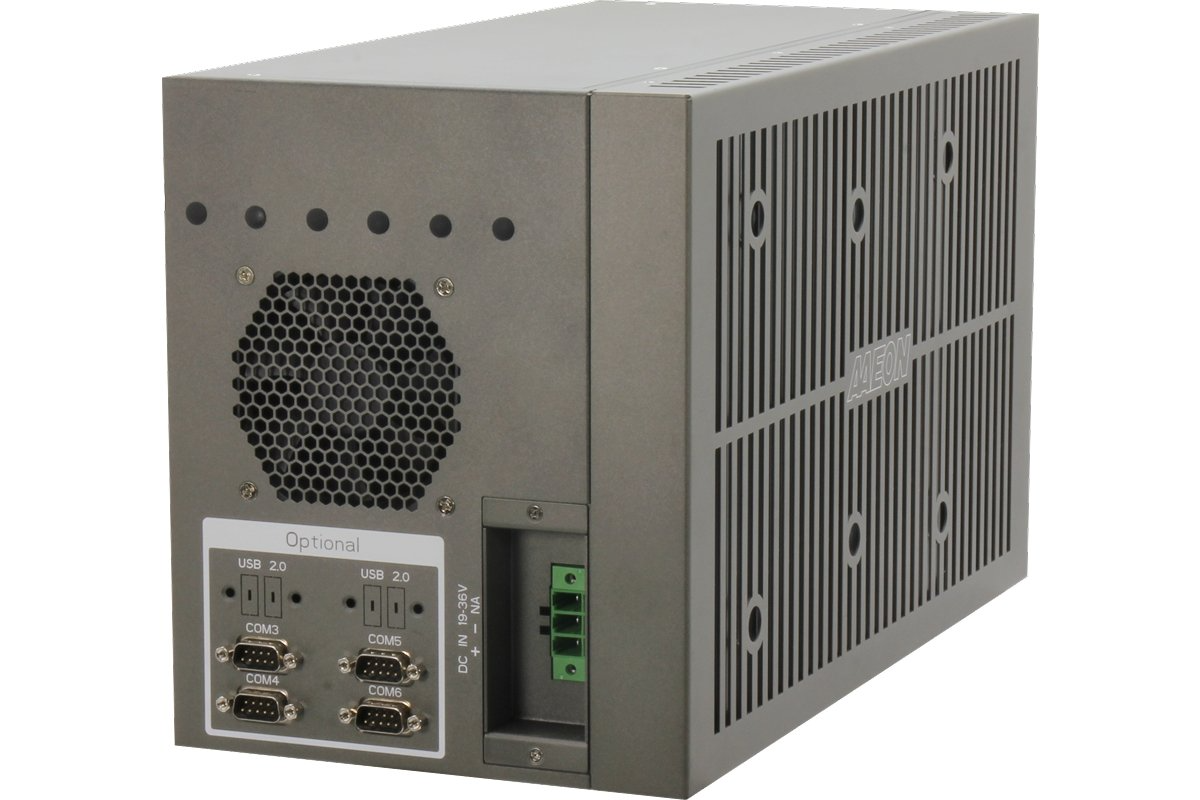

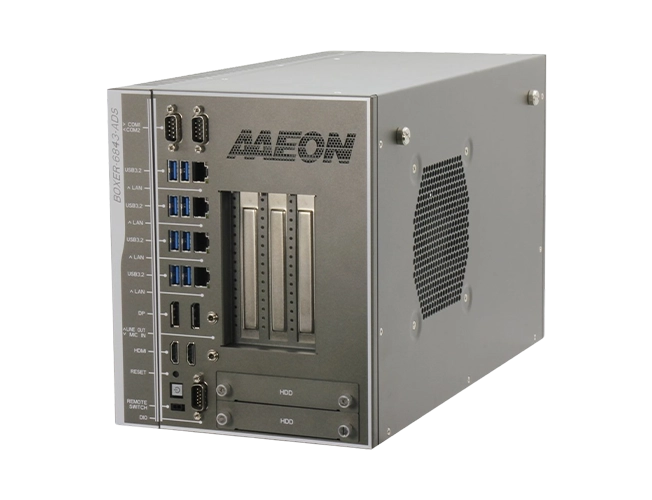

AAEON BOXER-6843-ADS Fanless Embedded Controller
TF:
003618-HW-AAEON-O18
Overview
Unlock Real-Time AI Insights, Boost Efficiency, and Protect Your Data with BOXER-6843-ADS
| System | |
| CPU | -- |
| CPU Support | 12th Generation IntelĀ® Coreā¢, TDP Max. 65W IntelĀ® Coreā¢ i9-12900TE/i9-12900E IntelĀ® Coreā¢ i7-12700TE/i7-12700E IntelĀ® Coreā¢ i5-12500TE/i5-12500E IntelĀ® Coreā¢ i3-12100TE/i3-12100E 13th Generation IntelĀ® Coreā¢, TDP Max. 65W IntelĀ® Coreā¢ i9-13900TE/i9-13900E IntelĀ® Coreā¢ i7-13700E IntelĀ® Coreā¢ i5-13500E IntelĀ® Coreā¢ i3-13100TE 14th Generation IntelĀ® Coreā¢, TDP Max. 65W IntelĀ® Coreā¢ i9-14900/i9-14900T IntelĀ® Coreā¢ i7-14700/i7-14700T IntelĀ® Coreā¢ i5-14500 IntelĀ® Coreā¢ i3-14100/i3-14100T |
| Chipset | Q670E |
| System Memory | DDR5 4800Mhz U-DIMM x 4, up to 128GB |
| Display Interface | HDMI x 2 (Type-A) Display Port x 2 |
| Storage Device | 2.5" SATA Drive Bay x 2 (external, swappable) M.2 2280 M-Key x 2 (PCIe Gen 4 [x4]) 3.5" SATA Drive Bay (internal, non-swappable, optional) |
| Ethernet | 2.5GbE x 3 (IntelĀ® I226-IT) GbE x 1 with LED Indicator (IntelĀ® I219-LM) |
| I/O | HDMI x 2, Display Port x 2 RJ-45 x 4 3.2 Gen 2 x 8 (Type-A) DB-9 Male x 6 for RS-232/422/485 (Autoflow, Programmable) DB-15 Male x 1 for 8-bit DIO Audio (Mic-in/Line-out) DC 19 ~ 36V 3-pin Terminal Block Connector Power Button with LED x 1 Remote Power On/Off x 1 Reset Button x 1 |
| Expansion | M.2 2230 E-Key x 1 M.2 3052 B-Key w/SIM x 1 M.2 2280 M-Key/B+M-Key x 2 Full-Size Mini Card x 1 (PCIe + USB) PCIE [x4] x 1 + PCIE [x16] x 1 Max. Power Consumption of GPU card 300W Max. Size of GPU card 305mm x 120mm x 50mm |
| Indicator | ā |
| OS Support | WindowsĀ® 10 IoT Enterprise LTSC 2021 WindowsĀ® 11 Pro Linux Ubuntu 22.04 |
| Power Supply | |
| Power Requirement | DC 19~36V 3-pin Terminal Block |
| Mechanical | |
| Mounting | Wallmount |
| Dimensions | 7.35" x 8.92" x 14.76" (186.8 x 226.5 x 375 mm)(Without brackets) 7.35" x 9.19" x 16.50" (186.8 x 233.5 x 419 mm)(With brackets) |
| Gross Weight | 20.9 lb (9.5Kg) |
| Net Weight | 18.1 Ib (8.2 Kg) |
| Environmental | |
| Operating Temperature | -4Ā°F ~ 113Ā°F (-20Ā°C ~ 45Ā°C), according to IEC68-2 with 0.5 m/s AirFlow (w/Industrial wide Temp. SSD/RAM) |
| Storage Temperature | -40Ā°F ~ 176Ā°F (-40Ā°C ~ 80Ā°C) |
| Storage Humidity | 5 ~ 95% @ 40Ā°C, non-condensing |
| Anti-Vibration | 3 Grms/ 5 ~ 500Hz/ operation (with SSD) |
| Anti-Shock | 50G, IEC 68-2-27, half sine, 11 ms duration (with SSD) |
| Certification | CE/FCC class A |
With the BOXER-6843-ADSā 14th Gen IntelĀ® Coreā¢ processing and certified support for the NVIDIA L4 GPU, you can now move large language models (LLMs) from the cloud to the edge for reduced latency, improved security, and faster automated decision-making across every facet of industrial setups.Combining the BOXER-6843-ADS with the NVIDIA L4 GPU not only lets you to process vast datasets locally, but opens the door to LLM integration capable of 360-degree operational optimization.
