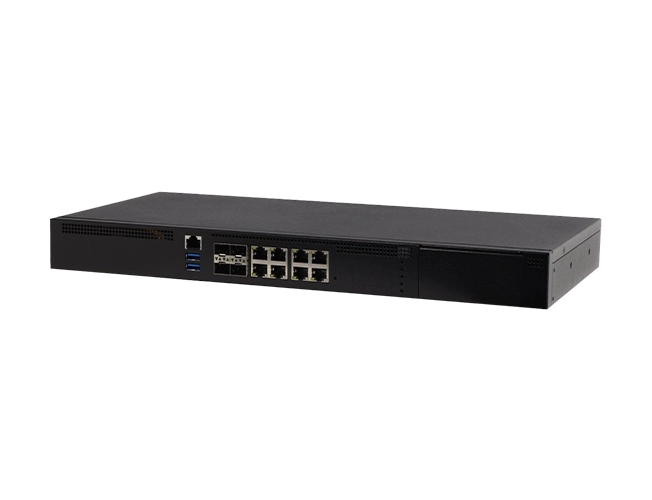

AAEON FWS-7370 Network Appliance
TF:
003641-HW-AAEON-O41
Overview
The FWS-7370 possesses everything needed to scale next-gen networking applications to unprecedented heights. The most advanced processor platform possible meets modular hardware that allows you to dictate how you configure your virtual environment.
| PLATFORM | |
| Form Factor | Rackmount Network Appliance |
| processor | Intel Atom® P5300/C5000 Processors (Max 83W) |
| Chipset | SoC |
| System Memory | DDR4 SO-DIMM up to 64GB ECC/Non ECC |
| NETWORK | |
| Ethernet | Intel® Ethernet Controller I226-V, 2.5GbE RJ-45 x 4 1GbE by Marvell® Alaska® 88E1543, 1GbE RJ-45 x 4 10GbE SFP+ x 4 |
| Bypass | 2 Pairs |
| NIM Slot | NIM x 1 (Optional) |
| STORAGE | |
| HDD | 2.5” HDD Bay x 2 (1 SATA co-lay with M.2 2242 M-Key) |
| CF/CFast/mSATA | eMMC for optional, up to 128GB |
| EXPANSION/INTERNAL INTERFACE | |
| PCIe Slot | PCIe [x4] Slot x 1 (PCIe [x1) x 2 signal) M.2 3042/52 B-Key x 1 (5G) |
| USB | USB 2.0 (Type-A) x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| Watchdog Timer | 1~255 step by software programmable |
| Software Button | GPIO Programmable push button x 1 |
| TPM | TPM 2.0 SPI |
| GPIO | DIO Pin Header x 1 (4-in/4-out) optional |
| Fan | System Fan x 2 |
| MTBF (hours) | 30,480 |
| Color | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| Power Requirement | AC/DC open frame 200W PSU |
| Operating Temperature | 32°F ~ 122°F (0°C ~ 40°C) with 0.2m/s air flow |
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| Operating Humidity | 10%~90% relative humidity, non-condensing |
| Storage Humidity | 10 ~ 80% @ 40C, non-condensing |
| Vibration | 0.5G / 5 ~ 500Hz / operation 1.5G / 5 ~ 500Hz / non-operation |
| SHOCK | 10G peak acceleration (11 m sec. duration), operation 20G peak acceleration (11 m sec. duration), non-operation |
| Dimension (W x D x H) | 16.9” x 7.8” x 1.7” (430mm x 200mm x 44mm) |
| I/O INTERFACE | |

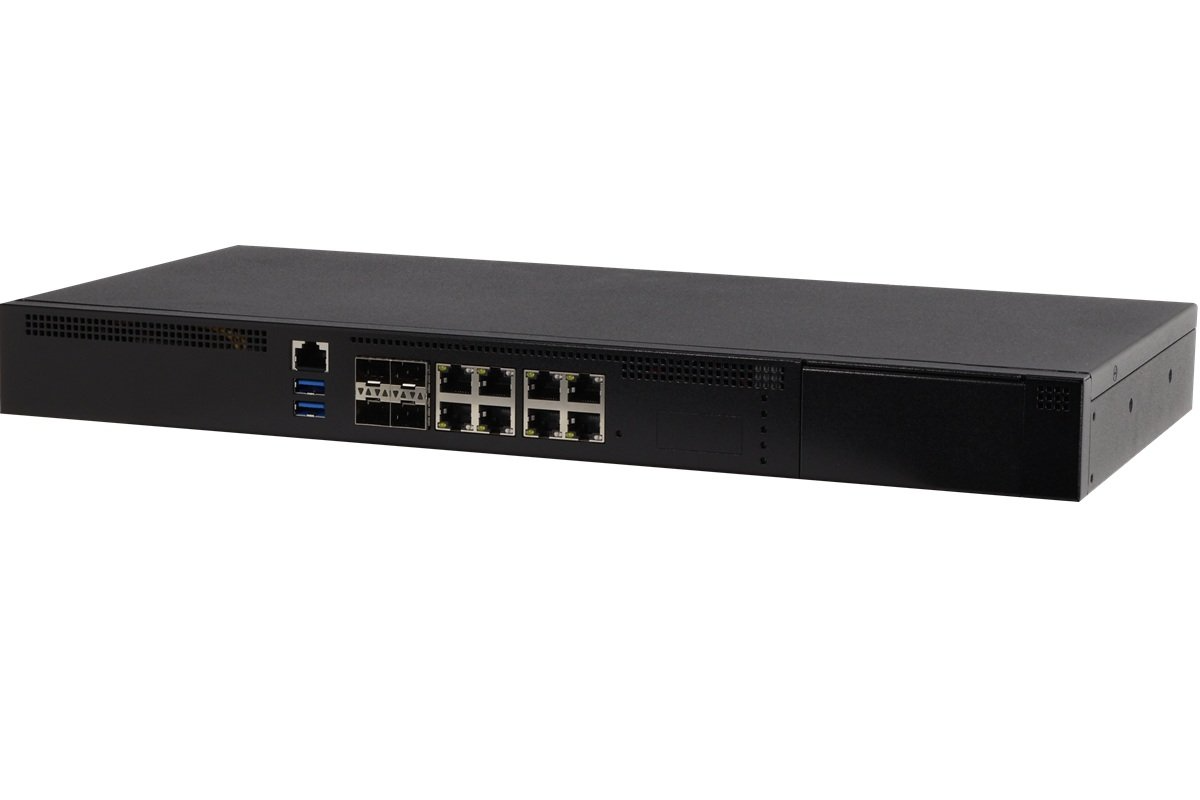

| Front Panel | Power LED x 1 Status LED x 1 Bypass LED x 2 Storage Active LED x 1 SW programmable button x 1 USB 2.0 type-A Port x 2 RJ-45 Console Port x 1 |

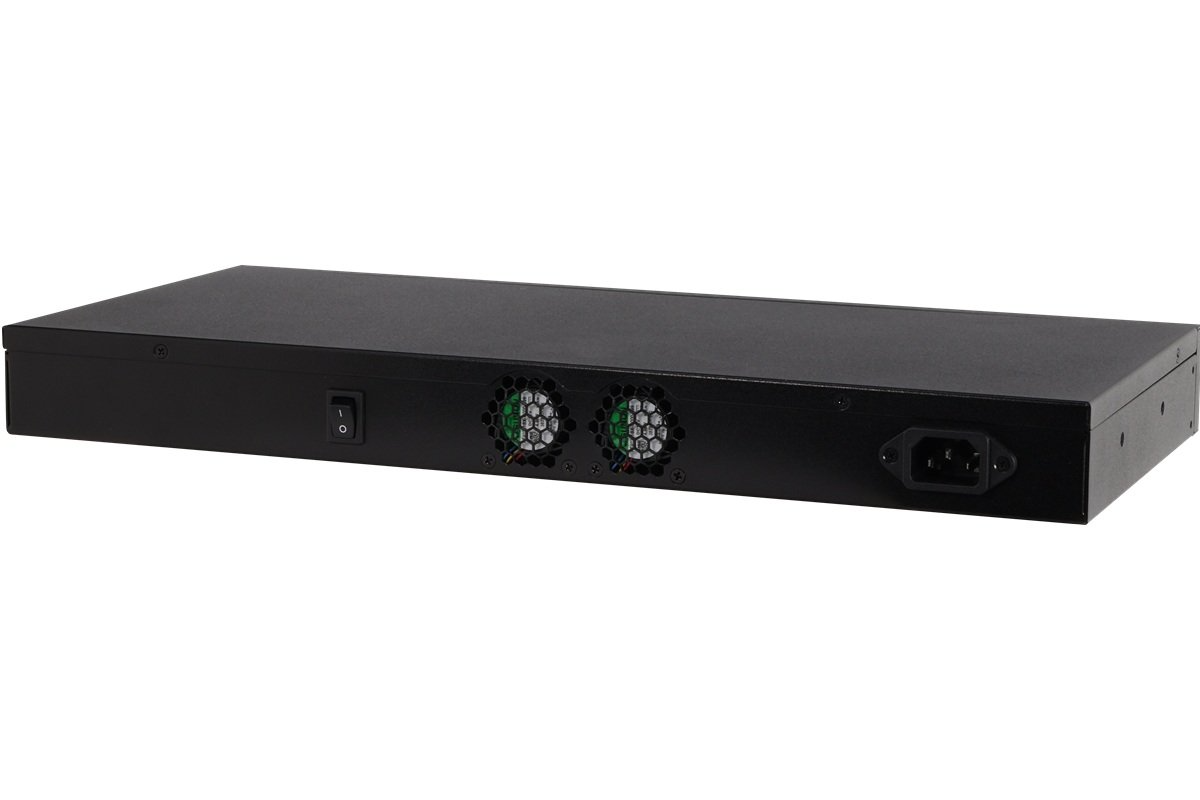

| Rear Panel | AC Power Input Connector x 1 Power Button x 1 |
Slimmer than its predecessors, the FWS-7370 is flexible in deployment potential, while also being easily integrated either as part of broader networking ecosystems, or even as a standalone solution. With the FWS-7370, you don’t have to choose – it excels everywhere.
