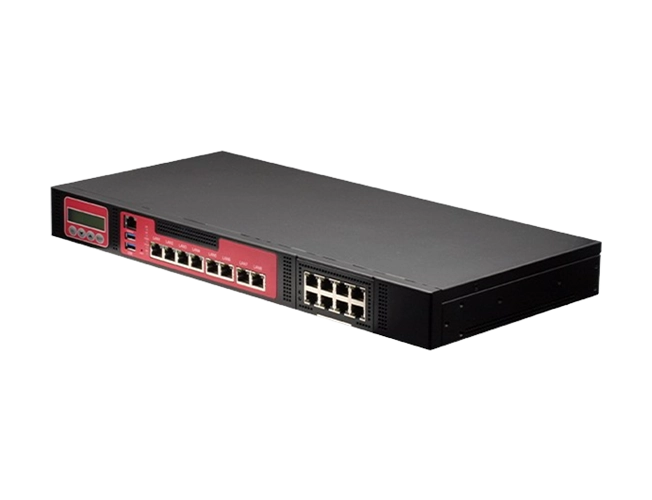

AAEON FWS-7831 1U Rackmount Intel® 8th Generation Platform Network Appliance
TF:
003647-HW-AAEON-O47
Overview
The FWS-7830 and FWS-7831 rackmount network appliances provide flexible network solutions with the power of the 8th Generation Intel Core and Xeon processors, formerly Coffee Lake.
| PLATFORM | |
| Form Factor | 1U Rackmount Network Platform |
| processor | Intel® Xeon® processor E-2100 family for Intel® C246 Chipset Intel® Core™/ Celeron® processor for Intel® H310 Chipset |
| Chipset | Intel®C246/H310 |
| System Memory | 260-pin DDR4 1600/1866/2133 SODIMM/ECC x 2, upto 64GB |
| NETWORK | |
| Ethernet | Intel® i210 Gigabit Ethernet x 8 or Intel ® i210 Gigabit Ethernet x 6 + SFP Ethernet ports x2 (C246) Intel® i210 Gigabit Ethernet x 6 (H310) |
| Bypass | 2 Pairs |
| NIM Slot | Need to configure riser card |
| DISPLAY | |
| Graphics Controller | Intel® UHD Graphics 630 |
| Connector | (HDMI x1 Optional) |
| STORAGE | |
| HDD | Internal 2.5” HDD bay x 2 or ( 3.5” HDD bay x 1 can’t use with NIM Optional ) |
| CF/CFast/mSATA | mSATA |
| EXPANSION/INTERNAL INTERFACE | |
| PCIe Slot | - |
| Mini-Card | Mini-Card x 1 (PCIe[x1]+mSATA) |
| IPMI | - |
| USB | USB 3.2 Gen 1 x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| Watchdog Timer | 1~255 steps by software programmable |
| Software Button | GPIO Programmable push button x 1 |
| TPM | (TPM2.0 9665/TPM v1.2 9660 optional) |
| GPIO | 4 bits input, 4 bits output |
| Fan | 2 |
| MTBF (hours) | 362,825 Hours |
| Color | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| Power Requirement | 220W ATX PSU |
| Operating Temperature | 32°F ~ 104°F (0°C ~ 40°C) |
| Storage Temperature | -4°F~ 140°F (-20°C ~ 60°C) |
| Operating Humidity | 10%~80% relative humidity, non-condensing |
| Storage Humidity | 0%~80% @40°C; non-condensing |
| Vibration | 0.5 Grms/ 5 ~ 500Hz / operation (3.5” Hard Disk Drive x 5) 1.5 Grms/ 5 ~ 500Hz / non operation |
| SHOCK | TBD |
| Dimension (W x D x H) | 16.93” x 7.87” x1.73”(430mm x 200mm x 44mm) |
| I/O INTERFACE | |

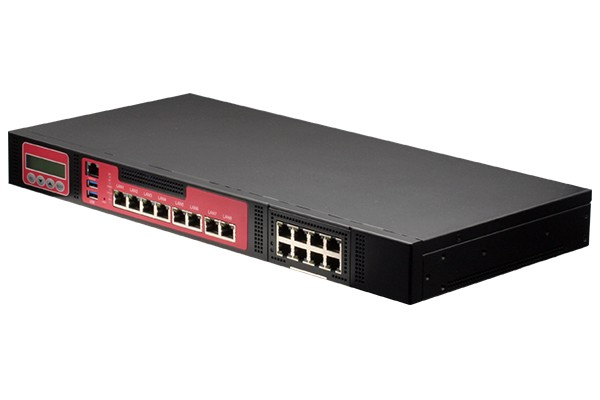

| Front Panel | Power LED x 1, Status LED x 1, HDD Active LED x 1 ,USB 3.2 Gen 1 Ports x 2 - RJ-45 Console x 1 |

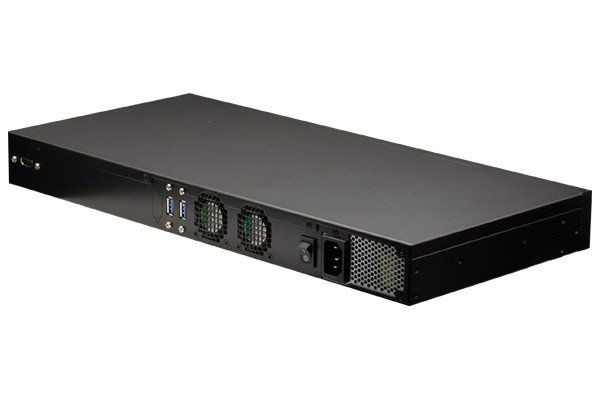

| Rear Panel | AC Power Input x 1, Power Switch x 1, (Rear Expansion Slot x 1 Optional) |
With a range of processors to choose from, from the dual core i3 up to six-core Xeon E-2 processors, these network appliances are built for UTM, SD-WAN, web monitoring, load balancing, and even Network Virtualization.
