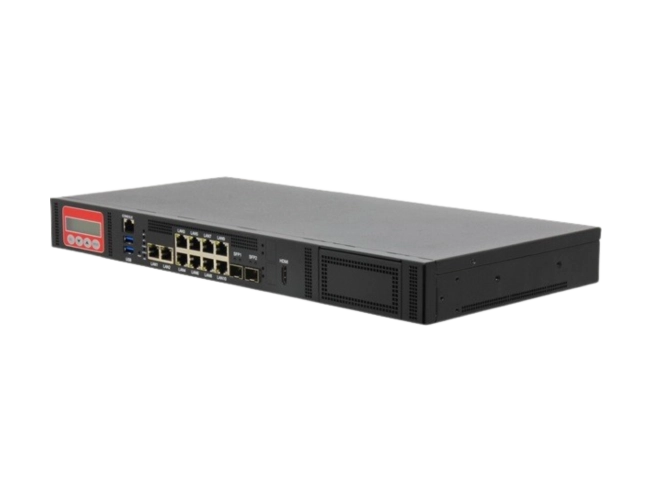

AAEON FWS-7851 1U Rackmount Network Appliance
-
NG # 003643-HW-AAEON-O43
Manufactured by:
The new FWS-7851 is a rackmount network appliance that gives you the flexibility and versatility to deploy and power solutions to meet specific project objectives across industries.
Specification
PLATFORM Form Factor 1U Rackmount Network Appliance processor 12th/13th Generation Intel® Core™ Processors Chipset Intel® W680 Chipset (Project Base: Intel® Q670, H610) System Memory
DDR5 SODIMM slots x 2NETWORK Ethernet Intel® I226-V 2.5GbE RJ-45 x 10 (Including 2 pairs Bypass) + Intel® I210-IS GbE SFP x 2, optional: 10GbE SFP+ x 2 (PCIe[x4] via PER-T639
Note: Intel® H610 Chipset SKU limited to 2.5GbE RJ-45 x 8Bypass 2 Pairs LAN Bypass 3.1 ( LAN 3-4, LAN 5-6) NIM Slot 1 DISPLAY Connector HDMI port x 1 STORAGE HDD 2.5" HDD x 2 (default) or 3.5" HDD x 1(If no NIM module present) EXPANSION/INTERNAL INTERFACE Mini-Card M.2 2242 M-Key (PCIe [x4]) x 1 USB USB 3.2 Gen 1 x 2 MISCELLANEOUS RTC Internal RTC Watchdog Timer 1~255 Software Button 1 TPM TPM2.0 SPI GPIO Reserved internal pin header 8-bit Digital I/O interface (4-in /4-out) Fan System Fan x 2 MTBF (hours) TBD Color Black PHYSICAL & ENVIRONMENTAL SPEC Power Requirement 220W Power Operating Temperature 32°F ~ 104°F (0°C ~ 40°C ) Storage Temperature -4°F~ 140°F (-20°C ~ 60°C) Operating Humidity 10%~80% relative humidity, non-condensing Storage Humidity 0%~80% @40°C; non-condensing Vibration 0.5 g rms/ 5 ~ 500Hz / operation (2.5” Hard Disk Drive)
1.5 g rms/ 5 ~ 500Hz / non operationSHOCK 10 G peak acceleration (11 m sec. duration), operation

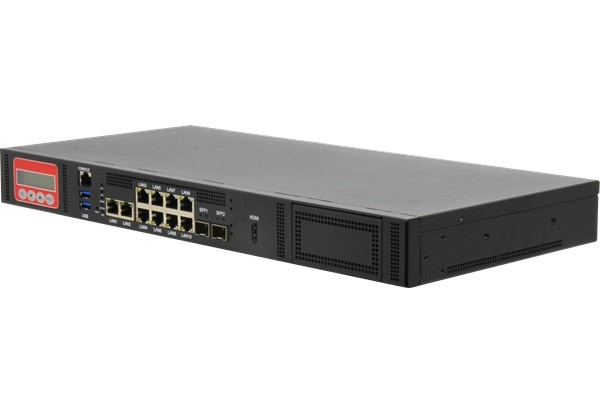

20 G peak acceleration (11 m sec. duration), non operationDimension (W x D x H) 16.93” x 7.87” x 1.73” (430mm x 200mm x 44mm) I/O INTERFACE Front Panel Intel® I226-V 2.5GbE RJ-45 x 10 (Including 2 pairs Bypass) + Intel® I210-IS GbE SFP x 2, optional: 10GbE SFP+ x 2 (PCIe[x4] via PER-T639
Power LED x 1
Status LED x 1
HDD Active LED x 1
USB 3.2 Gen 1 x 2
HDMI x 1
RJ-45 Console x 1
LCM display with keypad x 1
Software Programmable Button x 1

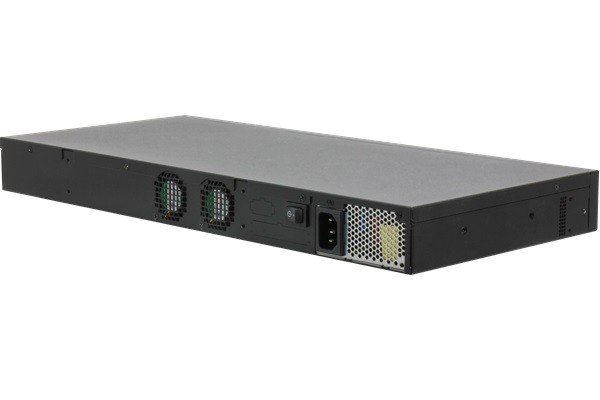

NIM Slot x 1Rear Panel AC Power Input x 1
Power Switch x1
Description
Built with a groundbreaking modular yet interconnected power supply design, the FWS-7851 boosts both reliability and power efficiency, all while maintaining exceptional networking capabilities and expansion options.
