AAEON ICS-6280 DIN Rail Industrial-Grade Network Appliance
TF:
003640-HW-AAEON-O40
Overview
The ICS-6280 Industrial-Grade Network Appliance is built to provide secure networks in the toughest industrial environments.
| SYSTEM | |
| FORM FACTOR | DIN Rail/ Desktop |
| PROCESSOR | Intel Atom® Processor X Series Intel Atom® x6425E |
| SYSTEM MEMORY | 260-pin DDR4 3200MT/s SODIMM with IBECC support x 1 |
| CHIPSET | SoC |
| ETHERNET | Intel® Ethernet Controller I210-AT GbE x 4 |
| BYPASS | Supports upto 2 Pairs LAN Bypass (Optional) |
| BIOS | AMI SPI Flash BIOS |
| SERIAL ATA | SATA III port x 1 for 2.5”SSD support |
| CF/CFAST/MSATA | mSATA (Full size) socket colay SATAIII port x 1 |
| EXPANSION INTERFACE | Supports Mini-card slot x 1 with Micro SIM socket |
| USB | USB 3.2 Gen 1 x 2 |
| SERIAL PORT | Supports up to RS-232/422/485 COM Port x 2 |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| RTC | Internal RTC |
| SYSTEM FAN | Fanless |
| COLOR | Black |
| POWER SUPPLY | Dual 2-Pin Phoenix terminal block |
| DIMENSION | 5.12” x 4.96” x 2.83” (130mm x 126mm x 72mm) |
| POWER REQUIREMENT | Redundant 9~48Vdc power input |
| MTBF (HOURS) | TBD |
| DISPLAY | |
| GRAPHICS CHIPSET | Intel® HD Graphics |
| INTERFACE | HDMI port x 1, VGA port x 1 |
| I/O | |

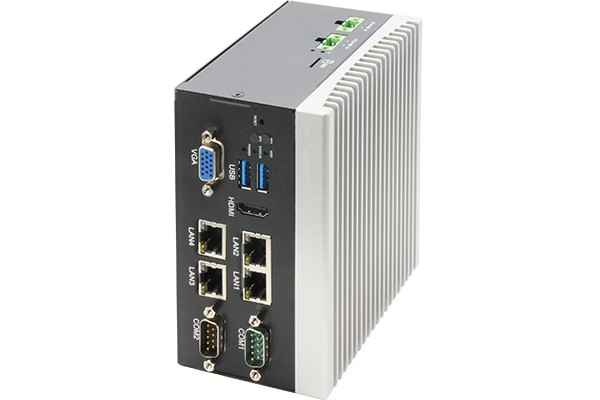

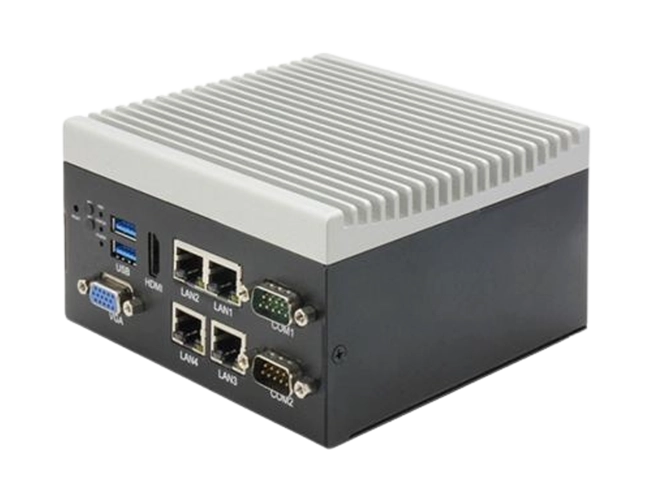

| FRONT I/O PANEL | RJ-45 GbE x 4 RS-232/422/485 COM Ports x 2 HDMI portx1 VGA port x 1 USB 3.2 Gen 1 x 2 Micro SIM slot x 1 Software programmable button x 1 Power LED x 1 HDD LED x 1 Status LED x 1 |
| REAR I/O PANEL | DIN Rail/ Wallmount Lock |

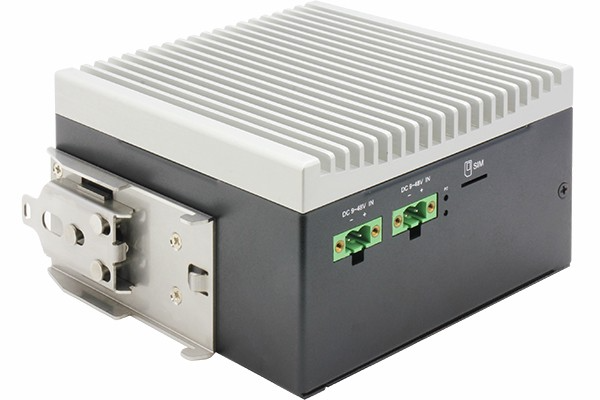

| TOP PANEL | 2-Pin Terminal Block +9~46VDC x 2 |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -40°F ~ 167°F (-40°C ~ 75°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 10% ~ 80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 g rms/ 5 ~ 500Hz / operation (2.5” SSD) 1.5 g rms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
Powered by Intel® Atom™ x6000 series processors (formerly Elkhart Lake), the ICS-6280 provides a substantial performance increase over previous generations, while also being equipped with application-specific benefits such as remote device management technology for Industrial IoT networks.
