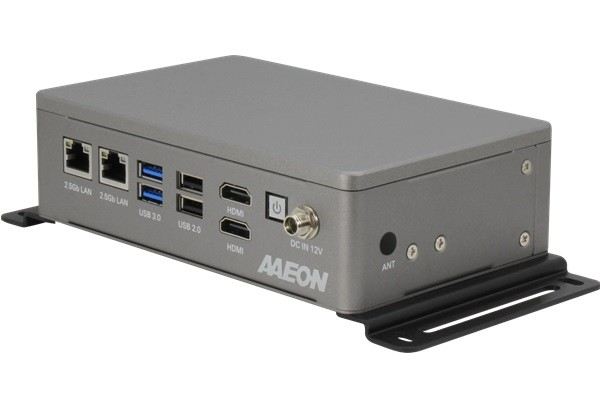

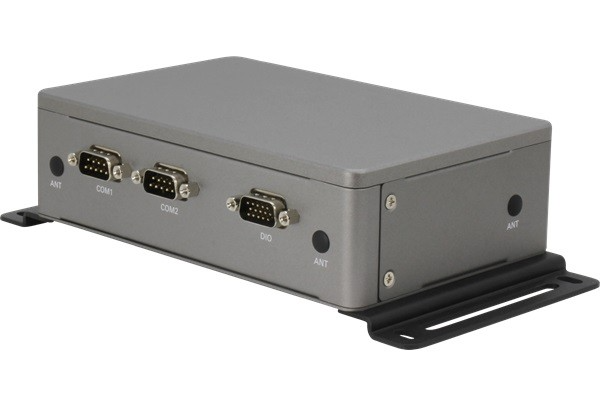

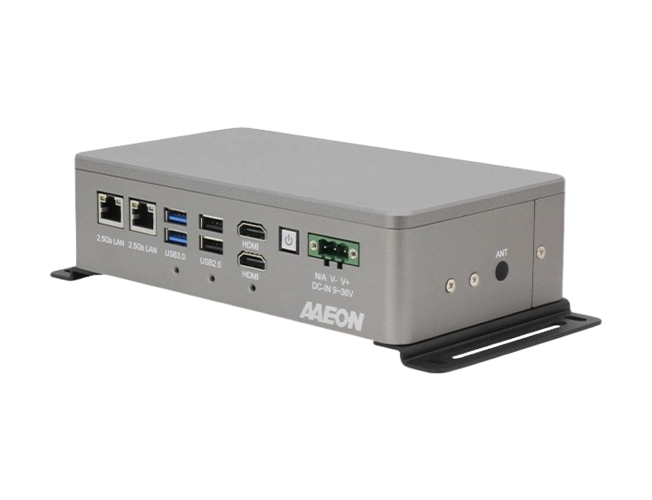

BOXER-6406-ADN Fanless Compact Embedded Computer
003613-HW-AAEON-O13
Overview
BOXER-6406-ADN Fanless Compact Embedded Computer with Intel Atom® Processor X-series/N-series
| SYSTEM | |
| CPU | Intel® Processor N50 (formerly Alder Lake-N) |
| CHIPSET | Intel® SoC |
| SYSTEM MEMORY | (Default: No) DDR5 4800Mhz SODIMM x 1, up to 32GB |
| DISPLAY INTERFACE | HDMI x 2 |
| STORAGE DEVICE | M.2 2280 M-Key x 1 (PCIe Gen 3 x 2) 2.5" SATA HDD/SSD x 1 |
| ETHERNET | RJ-45 x 2 for 2.5GbE LAN (Intel® I226-LM) |
| I/O | HDMI x 2 RJ-45 x 2 for 2.5GbE LAN (Intel® I226-LM) USB 3.2 Gen 2 x 2 (Type-A) USB 2.0 x 2 (Type-A) DB-9 x 3 for RS-232/422/485 DB-15 x 1 Male for Digital I/O 8-Channel 3-pin Terminal Block for DC In x 1 Power Button with LED x 1 |
| EXPANSION | M.2 2280 M-Key x 1 (PCIe [x2]) M.2 2230 E-Key x 1 Full-Size Mini Card x 1 (PCIe + USB) SIM Slot x 1 |
| INDICATOR | — |
| OS SUPPORT | Windows® 10 IoT Enterprise Windows® 11 Pro Linux Ubuntu 22.04 |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9 ~ 36V DC-In x 1 for 3-pin Terminal Block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 7.32" x 4.12" x 1.93" (186mm x 104.6mm x 49.1mm) without bracket 8.74" x 4.12" x 2.21" (222mm x 104.6mm x 56.1mm) with bracket |
| GROSS WEIGHT | 4.32 lb (1.96 Kg) |
| NET WEIGHT | 2.56 lb (1.16 Kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation (with SSD) |
| ANTI-SHOCK | 50G, IEC 68-2-27, half sine, 11 ms duration (with SSD) |
| CERTIFICATION | CE/FCC Class A |
The BOXER-6406-ADN, measuring just 222mm x 104.6mm x 56.1mm, is an exceptionally compact and fanless embedded box PC, making it highly suitable for deployment in various functions within smart factory settings. Its durable features, including wide temperature and power input ranges, high shock and vibration tolerance, and lockable I/O connectors, perfectly complement the low-power Intel Atom® Processor X Series/Intel® Processor N-series Processor platform, combining efficiency with ruggedness. As a result, the BOXER-6406-ADN is tailor-made for automated guided vehicle (AGV), edge gateway, and factory automation applications.
