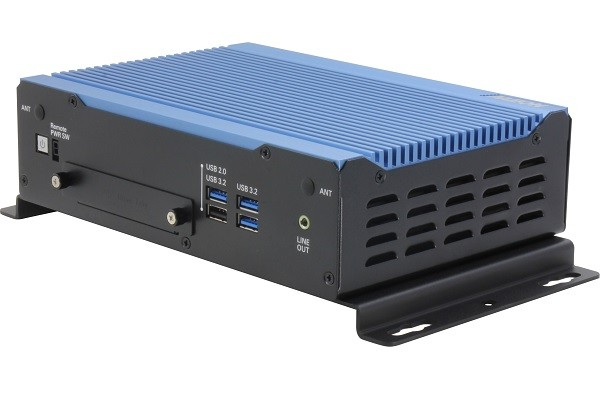

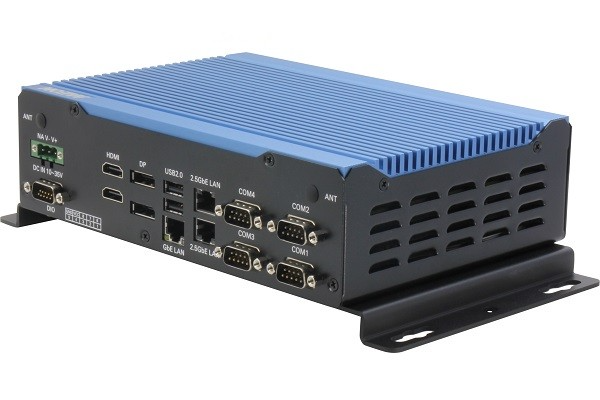

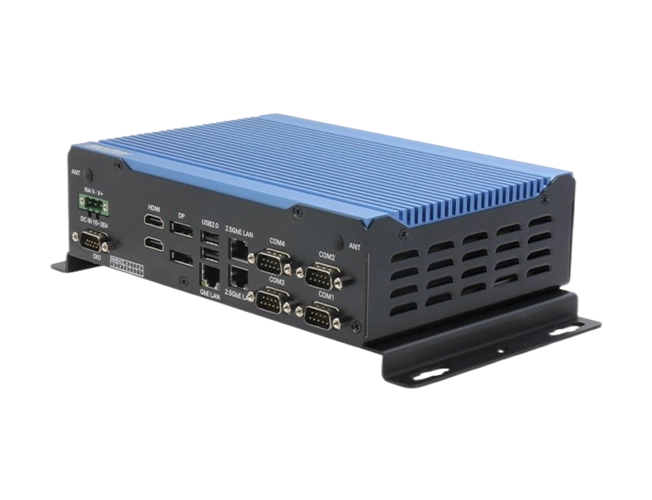

BOXER-6646-ADP Fanless Compact Embedded Computer
TF:
003604-HW-AAEON-O04
Overview
BOXER-6646-ADP Fanless Compact Embedded Computer with 12 Generation IntelĀ® Coreā¢ i7/i5/i3 Processor
| SYSTEM | |
| CPU | 13th Generation IntelĀ® Coreā¢ Processors: IntelĀ® Coreā¢ i7-1370PE IntelĀ® Coreā¢ i5-1350PE IntelĀ® Coreā¢ i3-1320PE 12th Generation IntelĀ® Coreā¢ Processors: IntelĀ® Coreā¢ i7-1270PE IntelĀ® Coreā¢ i5-1250PE IntelĀ® Coreā¢ i3-1220PE |
| Chipset | IntelĀ® System on Chip |
| System Memory | DDR5 SODIMM slot x 2, max. 64GB |
| Display Interface | HDMI x2, Display Port x 2 |
| Storage Device | Removable 2.5" SATA Drive Bay x 1 M.2 2280 M Key NVMe Slot x 1 |
| Ethernet | RJ-45 x 2 for 2.5GbE LAN i225-LM x 2 RJ-45 x 1 for GbE LAN i219-LM x 1 |
| I/O | USB Type-A x 3 for USB3.2 Gen2 (10Gbps) USB Type-A x 3 for USB 2.0 DB-9 x 4 for RS-232/422/485 Line out SMA Antenna Holes x 6 D-Sub for DIO 8 bit x 1 Power Button with LED indicator x 1 Remote Power on/off 2pin connector x 1 |
| Expansion | M.2 E key 2230 x 1 M.2 B Key 3052 x 1 (for 5G/LTE module) |
| Indicator | System Power LED x 1 |
| OS support | WindowsĀ® 10 IoT Ent LTSC, WindowsĀ® 11 PRO, Ubuntu 22.04 |
| POWER SUPPLY | |
| Power Requirement | DC-in 10~35V in 3pin Terminal block connector |
| MECHANICAL | |
| Mounting | Wall Mount |
| Dimensions (W x H x D) | 8.66āx 6.06ā x 2.42ā (220 mm x 154 mm x 61.6 mm) |
| Gross Weight | 6.6 lbs. (3.0 kg) |
| Net Weight | 4.9 lbs. (2.2 kg) |
| ENVIRONMENTAL | |
| Operating Temperature | -4Ā°F ~ 158Ā°F (-20Ā°C ~ 70Ā°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) |
| Storage Temperature | -40Ā°F ~ 176Ā°F (-40Ā°C ~ 80Ā°C) |
| Storage Humidity | 5 ~ 95% @ 40Ā°C, non-condensing |
| Anti-Vibration | SSD: Random, 3Grms, 5~500Hz |
| Anti-Shock | SSD: 50G @ wallmount, Half-sine, 11ms |
| Certification | CE/FCC class A |
Taking embedded computing to the next level, AAEONās BOXER-6646 is an exceptionally versatile, compact, and sophisticated all-purpose solution. Powered by 12th Generation IntelĀ® Coreā¢ processors with dual-channel DDR5 support, and equipped with industry-leading features such as a DIO port, multiple 2.5GbE LAN, and four display ports, the BOXER-6646 is capable of handling high workloads within a more compact form factor. Hosting a wide power input range alongside wide-voltage input power protection features, the BOXER-6646 is a compact, sophisticated, and versatile industrial automation solution.
