FWS-2276 Desktop 4 LAN Ports Network Appliance
003636-HW-AAEON-O36
Overview
Designed to offer customers more choice and allow AAEON to respond more quickly to requests for customized systems, the FWS-2276 board and chassis is compatible with the existing FWS-2272, and both appliances effectively handle Software Defined-WAN (SD-WAN), Virtual Customer Premise Equipment (vCPE) technology, Unified Threat Management (UTM), Virtual Private Networking (VPN), Intrusion Detection and Prevention Systems (IDS, IPS), Firewall technology, and Load Balancing applications.
| SYSTEM | |
| Form Factor | Desktop Network Appliance |
| processor | Intel® Celeron® Processor N3350 SoC |
| Chipset | SoC |
| System Memory | Onboard LPDDR4, 2GB, Optional DDR3L 1866MHz Single-Channel SODIMM x 1(Max 8GB, up to 1600MHz) |
| NETWORK | |
| Ethernet | Intel® Ethernet Controller I210, GbE x 4 |
| Bypass | 1 pair bypass function |
| DISPLAY | |
| Graphics Controller | Intel® HD graphics integrated |
| STORAGE | |
| HDD | 2.5” HDD Bay x 1 |
| CF/CFast/mSATA | Onboard 8GB eMMC, SATA 6.0 Gb/s port x 1 |
| INTERNAL/ EXPANSION INTERFACE | |
| USB | USB 3.2 Gen 1 x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| Watchdog Timer | 1~255 steps by software programmable |
| TPM | (TPM v1.2 9660/TPM2.0 9665 Optional) |
| GPIO | 4 bits input, 4bits output optional |
| Fan | 1 |
| MTBF (hours) | 166,000 |
| Color | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| Power Requirement | 12V DC Power |
| Operating Temperature | 32°F ~ 104°F (0°C ~ 40°C ) |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ 60°C) |
| Operating Humidity | 10%~80% relative humidity, non-condensing |
| Storage Humidity | 10%~80% @40°C; non-condensing |
| Vibration | 0.5 Grms/ 5 ~ 500Hz / operation (2.5" HDD) 1.5 Grms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
| Dimension (W x D x H) | 6.5” x 3.62” x 1.57” (165mm x 92mm x 40mm) |
| I/O | |

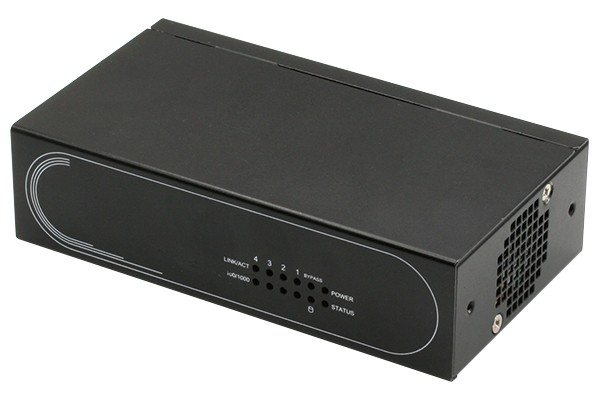

| Front Panel | Power LED x 1 Status LED x 1 HDD Active LED x 1 Bypass LED x 1 LAN LEDs x 8 |

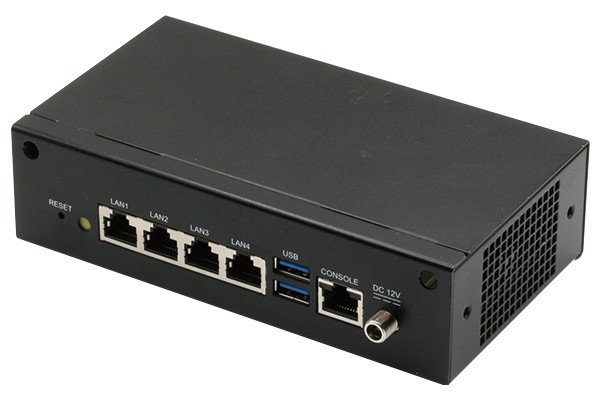

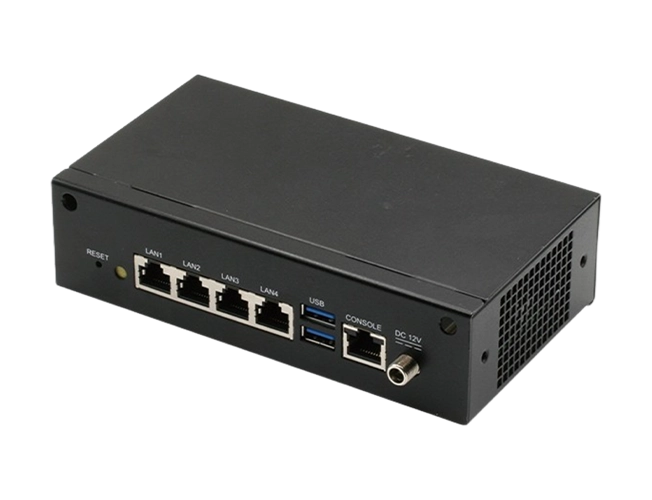

| Rear Panel | USB 3.2 Gen 1 Port x 2 RJ-45 Port x 4 RJ-45 Console x 1 12V DC Power Input x 1 Software Programmable Button x 1 Antenna Hole x 2 Optional |
The differences between the two systems are that while the FWS-2272 offers wireless WiFi/3G/LTE support, the FWS-2276 features a 2.5” SATA HDD Bay and a bypass function to safeguard the flow of network traffic in the event of software complications or loss of power. However, since the system boards and chassis are cross-compatible, buyers can custom-order appliances with the features they need to suit their requirements.
