FWS-7840 1U Rackmount Comet Lake Platform Network Appliance
003645-HW-AAEON-O45
Overview
The FWS-7840 rackmount network appliance is built to power higher-bandwidth networks that require greater flexibility. Featuring the Intel® Xeon® W processors (formerly Comet Lake), the FWS-7840 leverages higher processor core counts and access to innovative technologies such as Intel® Deep Learning Boost to power network applications such as SD-WAN, Next Generation Firewall (NGFW), Unified Thread Management (UTM), and even AI Edge Server.
| PLATFORM | |
| Form Factor | 1U Rackmount Network Platform |
| processor | 10th Generation Intel® Core™/ Xeon® processor |
| Chipset | Intel® W480E |
| System Memory | 2 x DDR4 2666MHz U-DIMM ECC DIMM slots up to 64G |
| NETWORK | |
| Ethernet | 8 x 1Gb RJ45 Port or 6 x 1Gb RJ45 + 2 x 1Gb SFP , with 2 xi350AM4 LAN chips 2 x 10Gb SFP+ with XL710 AM2 LAN chip (Option) |
| Bypass | 2 Pairs |
| NIM Slot | NIM Slot x 2 |
| DISPLAY | |
| Graphics Controller | Intel® UHD Graphics |
| Connector | (HDMI x1 Optional) |
| STORAGE | |
| HDD | SATA III port x 2, 2.5” HDD/SSD up to 2 |
| CF/CFast/mSATA | 1 x Mini card socket (Option mSATA) |
| EXPANSION/INTERNAL INTERFACE | |
| Mini-Card | Mini Card x 1 |
| PCIe Slot | Optional PCIe [x8] slot x 1, via riser card |
| USB | USB 3.2 Gen 1 x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| Watchdog Timer | 1~255 steps by software programmable |
| Software Button | GPIO Programmable push button x 1 |
| TPM | TPM v2.0 9665 |
| GPIO | 4 bits input/4 bits output |
| Fan | System Fan x 2 |
| MTBF (hours) | TBD |
| Color | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| Power Requirement | 220W ATX PSU or 250W ATX PSU |
| Operating Temperature | 32°F ~ 104°F (0°C ~ 40°C ) |
| Storage Temperature | -4°F~ 140°F (-20°C ~ 60°C) |
| Operating Humidity | 10%~80% relative humidity, non-condensing |
| Storage Humidity | 0%~80% @40°C; non-condensing |
| Vibration | 0.5 Grms/ 5 ~ 500Hz/ operation (3.5" H.D.D) 1.5 Grms/ 5 ~ 500Hz/ no operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
| Dimension (W x D x H) | 430mm x 305mm x 44mm |
| I/O INTERFACE | |

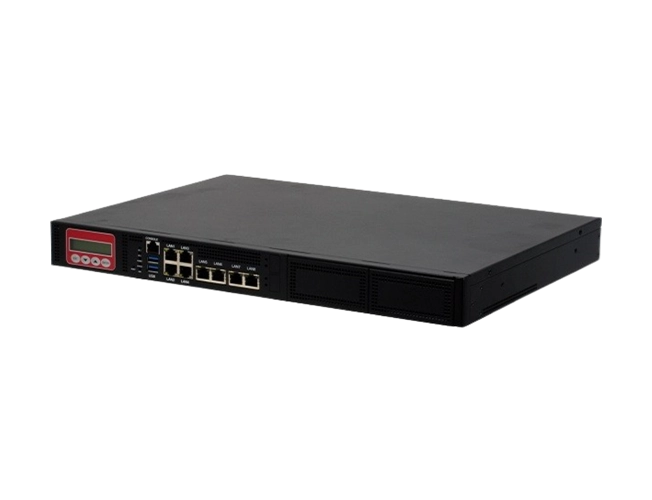

| Front Panel | Power LED x 1 Status LED x 1 Storage Active LED x 1 Bypass LED x 2 Ethernet LED x 16 USB 3.2 Type A port x 2 Parallel LCM display and 4 keypad x 1 Software Programmable Switch x 1 1 GbE RJ-45 x 8 or 1 GbE RJ45 x 6 + SFP x 2 10 GbE SFP+ x 2LAN port (Option by module) NIM Slot x 2 |

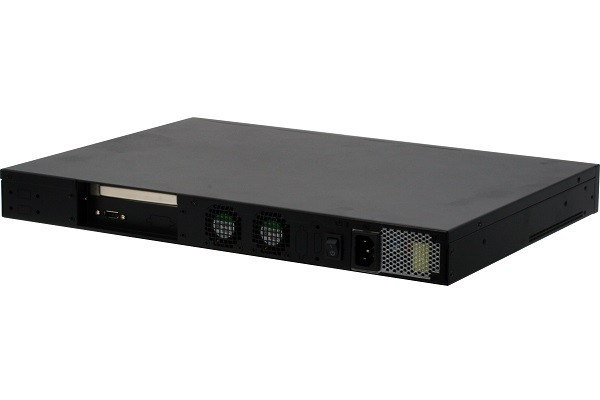

| Rear Panel | AC Power Input x 1, Power Switch x 1, (Rear Expansion Slot x 1 Optional) |
Connectivity is provided standard with eight RJ-45 ports powered by the Intel® i350AM4 chipset, which provides on-board access to Intel® Virtualization Technology, including on-chip QoS, Traffic Management, and SR-IOV. The system can be expanded to meet the specific needs of each network deployment, with two Network Interface Module slots which support the entire range of AAEON’s NIM line-up. Additionally, the system can be expanded to include two SFP+ 10Gbps ports, allowing even greater bandwidth.
