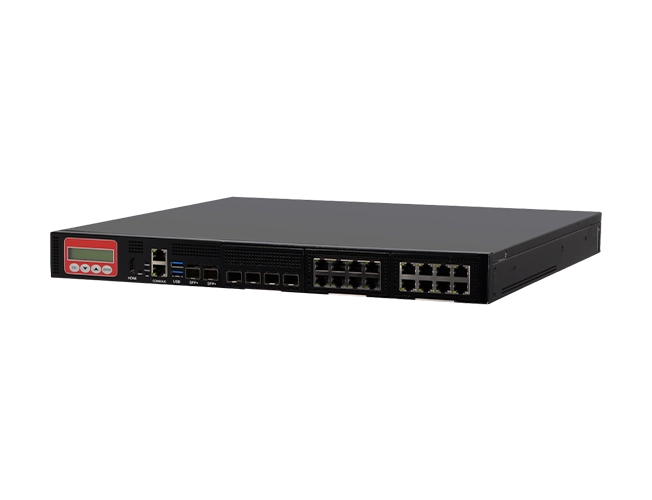

FWS-7850 1U Rackmount Network Appliance
TF:
003642-HW-AAEON-O42
Overview
The FWS-7850 is AAEON’s most innovative 1U Rackmount Network Appliance yet. Slimmer, faster, and more powerful than its counterparts, the system utilizes multiple high-speed networking channels and the performance hybrid architecture of 12th and 13th Gen Intel® Core™ socket-type CPUs for a plethora of networking solutions.
| PLATFORM | |
| Form Factor | 1U Rackmount Network Appliance |
| processor | 12th/13th Generation Intel® Core™ Processors |
| Chipset | Intel® W680 |
| System Memory | DDR5 U-DIMM x 4, up to 128GB (ECC) |
| NETWORK | |
| Ethernet | 10GbE SFP+ x 2 (Intel® X710-BM2 x 1) |
| Bypass | Dependent |
| NIM Slot | 3 |
| DISPLAY | |
| Connector | HDMI port x 1 |
| STORAGE | |
| HDD | 2.5” HDD Bay x 2 |
| EXPANSION/INTERNAL INTERFACE | |
| Mini-Card | M.2 2280 M-Key x 1 (PCIe [x4]) |
| USB | USB 3.2 Gen 1 x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| Watchdog Timer | 1~255 |
| Software Button | 1 |
| TPM | TPM 2.0 SPI |
| GPIO | Reserve internal pin header 8-bit Digital I/O interface (4-in /4-out) |
| Fan | Smart Fan x 3, optional system fan x 1 |
| MTBF (hours) | TBD |
| Color | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| Power Requirement | 1U 300W Redundant PSU x 1 |
| Operating Temperature | 32°F ~ 104°F (0°C ~ 40°C ) |
| Storage Temperature | -4°F~ 140°F (-20°C ~ 60°C) |
| Operating Humidity | 10%~80% relative humidity, non-condensing |
| Storage Humidity | 0%~80% @40°C; non-condensing |
| Vibration | 0.5 g rms/ 5 ~ 500Hz / operation (2.5” Hard Disk Drive) 1.5 g rms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non op |
| Dimension (W x D x H) | 16.93” x 15.75” x1.73”(430mm x 400 mm x 44mm ) |
| I/O INTERFACE | |

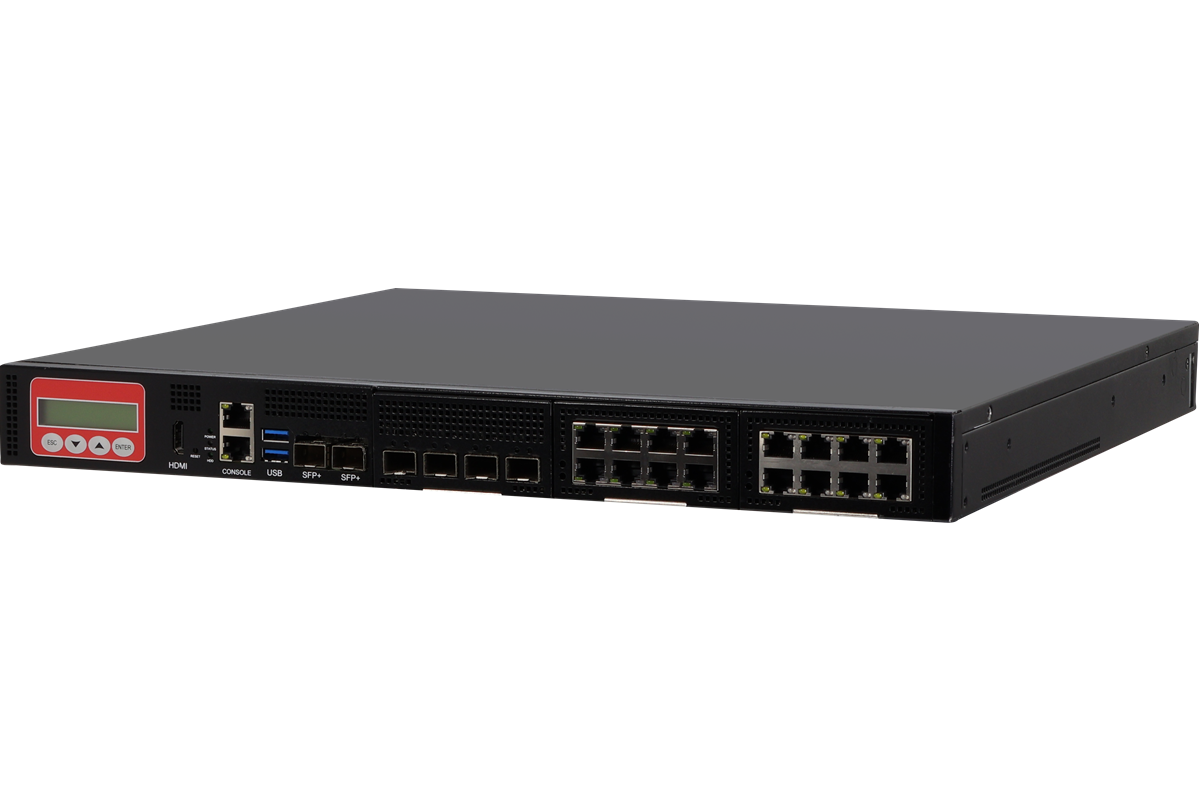

| Front Panel | 10GbE SFP+ x 2 Power LED x 1 Status LED x 1 HDD Active LED x 1 USB 3.2 Gen 1 x 2 HDMI x 1 RJ-45 Console x 1 LCM display with keypad x 1 Software Programmable Button x 1 NIM Slot x 3 |

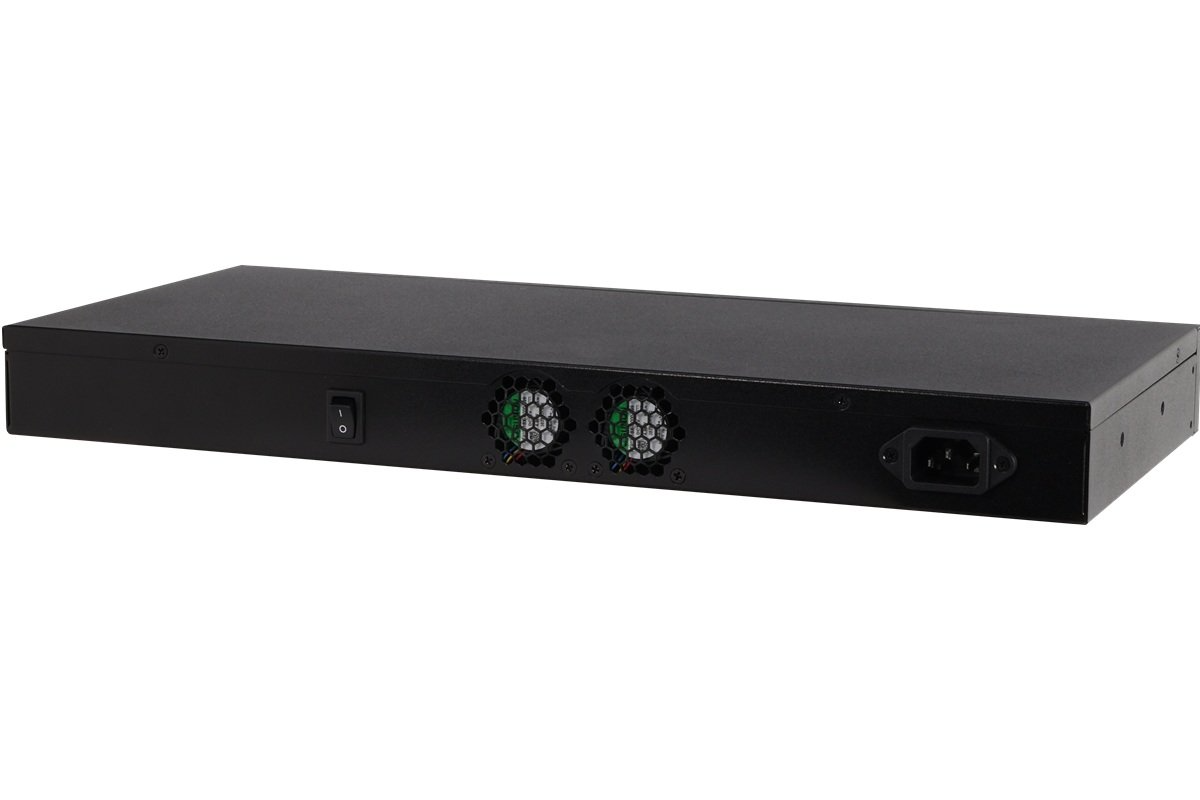

| Rear Panel | AC Power Input x 1 Power Switch x1 Rear expansion slot x 1 (PCIe [x8]): Optional |
NIM expansion, broader interface support, and customizable hardware give you all the tools required to consolidate your networking needs into one reliable platform.
