FWS-8600 2U Rackmount Network Appliance
003646-HW-AAEON-O46
Overview
The FWS-8600 2U Rackmount Network Appliance is built to handle powerful network applications, including UTM, SDN and NFV. Additionally, it features support for the Second Generation Intel Xeon Scalable Processor (formerly Cascade Lake) with Intel Deep Learning Boost, allowing the FWS-8600 to meet the high-data needs of AI edge and cloud networks, including AIOT.
| PLATFORM | |
| Form Factor | 2U Rackmount Network Platform |
| processor | Dual 2nd Gen Intel® Xeon® Scalable Processors, up to 56 cores, 112 threads |
| Chipset | Intel® C621 Chipset |
| System Memory | DDR4 2133/2400/2666 R-DIMM x 16 (8 DIMM per CPU), Up to 512 GB |
| NETWORK | |
| Ethernet | Intel® i211 Gigabit Ethernet x 2 |
| Bypass | Depend on NIM module |
| NIM Slot | NIM x 4 (Project based up to 8 slots) |
| DISPLAY | |
| Graphics Controller | Optional support via Mini-PCIe module or IPMI |
| Connector | Optional VGA port via module |
| STORAGE | |
| HDD | SATA III Port x 6 External Hotswappable 3.5" HDD Bay x 4 Internal 3.5" HDD Bay x 1, option with 2.5" HDD Bay x 2 |
| CF/CFast/mSATA | M.2 2260 M-key x 1 mSATA slot x 1 (share same slot with Mini-Card) |
| EXPANSION/INTERNAL INTERFACE | |
| PCIe Slot | Optional PCIe [x16] slots x 2, via riser card |
| Mini-Card | Mini Card slot (full-size) x 1 (PCIe/SATA, USB2.0) |
| IPMI | Optional IPMI via AAEON Module (Project based) |
| USB | USB 3.2 Gen1 x 2 (Optional 2*10 pin USB 3.2 Gen1 x 2 Box Header 2.0mm) |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| Watchdog Timer | 1~255 steps by software programmable |
| Software Button | GPIO Programmable push button x 1 |
| TPM | (Optional TPM2.0 9665 on board) |
| GPIO | (4 bits input, 4 bits output optional) |
| Fan | 5 x Hotswappable FAN |
| MTBF (hours) | 192,691 Hours |
| Color | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| Power Requirement | 550 ~ 600W Redundant Power |
| Operating Temperature | 32°F ~ 104°F (0°C ~ 40°C ) |
| Storage Temperature | -4°F~ 140°F (-20°C ~ 60°C) |
| Operating Humidity | 10%~80% relative humidity, non-condensing |
| Storage Humidity | 0%~80% @40°C; non-condensing |
| Vibration | 0.5 Grms/ 5 ~ 500Hz / operation (3.5” Hard Disk Drive x 5) 1.5 Grms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
| Dimension (W x D x H) | 17.48" x 22.83" x3.46" (444mm x 580mm x 88mm) |
| I/O INTERFACE | |

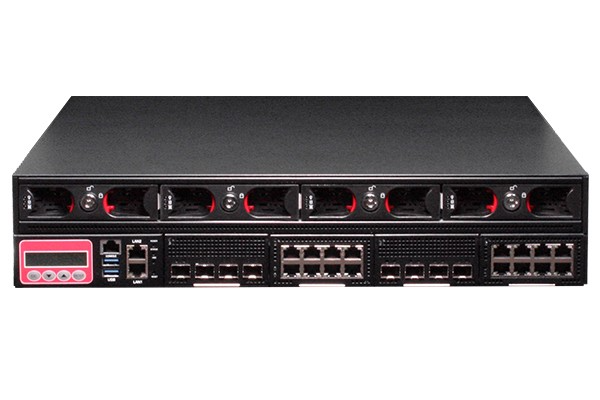

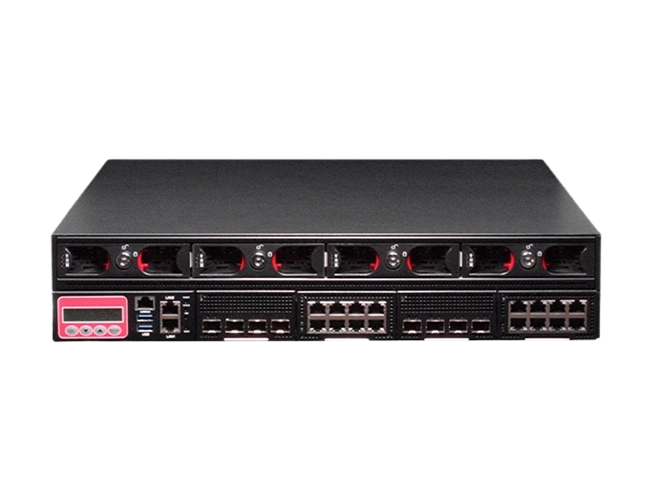

| Front Panel | Power LED x 1 Status LED x 1 HDD Active LED x 1 USB 3.2 Gen 1 Ports x 2 RJ-45 Console x 1 Parallel LCM display and 4 keypad x 1 Software Programmable Button x1 RJ-45 LAN x 2 IPMI x 1 (Project based) |
| Rear Panel | AC Power Input x 2, Power Switch x 1, VGA port (Optional), Rear Expansion Slot x 2 ( PCIe [x16] Optional) |

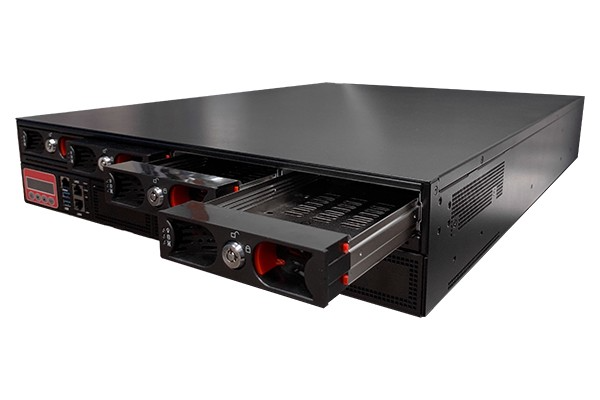

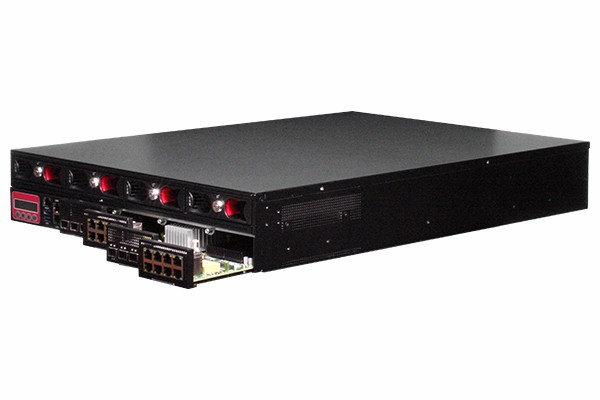

The FWS-8600 can support LAN throughput up to 300~400 Gbps, according to AAEON testing. It also features four lockable hard drive bays, support for up to 512GB of RDIMM ECC RAM, and four NIM slots. With manufacturer support from AAEON, the FWS-8600 can be configured and built to your network needs. The FWS-8600 is the solution for your AI driven IoT network needs.
