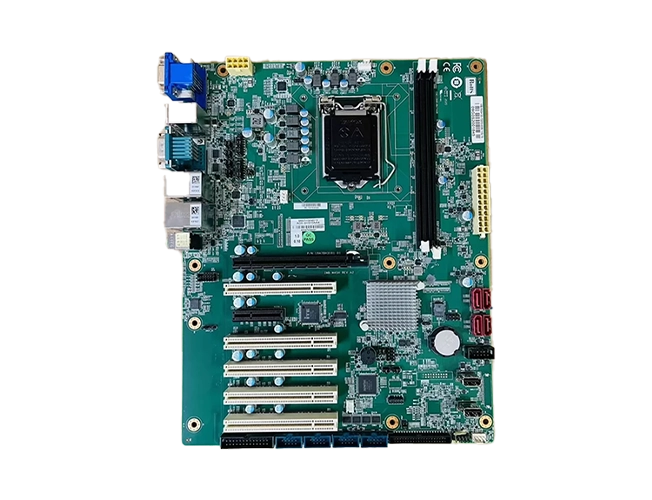

Industrial ATX Motherboard with 8th/9th Gen Intel® Core™ i9/i7/i5/i3 Processor
Specification
| Vendor Name | ADLink |
| System Architecture Form Factor | ATX |
| СPU Generation/Family | Coffee Lake |
| Processor Supported | Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium, Intel Core i9 |
| Socket | LGA1151 |
| Chipset | Intel Q470E |
| Memory Type | DDR4 2400, DDR4 2666, DDR4 2933 |
| Socket Type | 4xDDR4 DIMM 288pin |
| Maximum Memory | 128 GB |
| Graphic Controller | Integrated in CPU |
| Interfaces | DisplayPort, HDMI, VGA |
| USB | 12, USB 2.0: 4, USB 3.1: 8 |
| GPIO | 4xDigital In / 4xDigital Out |
| SATA 3 Channels | 6 |
| Audio Controller | Realtek ALC887 |
| Audio Output | Line-out |
| Internal Ports: | LPT, TPM, 24-pin ATX, 4x10-pin RS-232, 2x4-pin USB 2.0, GPIO, 2x19-pin USB 3.0, 8-pin ATX, 6xSATA 3 |
| Connectors: | 22xDB9, DB15 VGA, HDMI, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 6xUSB, Audio (in/out/Mic), Display Port |
| Temperature: | 0 ... 60 °C |
| Input Voltage DC: | 12 ... 12 V |
Description
ADLINK IMB-M45H ATX industrial motherboard supports the 8th/9th Generation Intel Core i9/i7/i5/i3 processor in the LGA1151 package, and the Intel H310 chipset. This model supports ubiquitous high-speed data transfer interfaces such as PCIe Gen3, USB 3.1 Gen1 and SATA 6 Gb/s (SATA III), with dual-channel DDR4 2400/2666 MHz memory up to 64 GB in two DIMM slots. Delivering a scalable high performance platform for diverse applications like motion controllers, the IMB-M45H supports 1xPCIe Gen3 x16 lanes, 1xPCIe Gen2 x4 lanes and 5xPCI for a wide range of user configurations. On top of that, ADLINK’s advanced rugged I/O and power design ensures exceptional compatibility, long-term stability, and reliability, while meeting the requirements of EN55032/55035 Class B standards.
