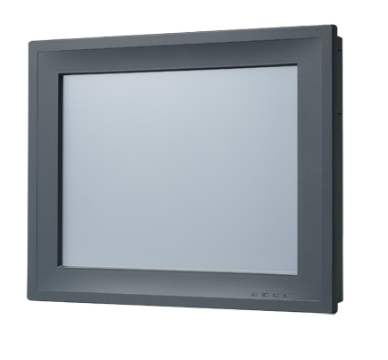

Advantech 15" Fanless Panel PC with Intel Atom Quad-Core Processor
-
NG # 004940-HW-Advantech-040
Manufactured by:
The PPC-3150 is a 15" fanless panel PC equipped with a high-performance Intel Atom E3845 quad-core, 1.91 GHz, processor that supports both a wide operating temperature range (-20 ~ 60 °C) and wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 1 x USB 3.0, 1 x isolated RS-422/485, and dual Intel Gigabit Ethernet, ensures easy integration and connectivity. With the inclusion of 1 x PCI/PCIe expansion slot, PPC-3150 can be integrated with fieldbus protocols or proprietary cards for increased application potential.
Specification
Manufacturer Advantech Short Description The PPC-3150 is a 15" fanless panel PC equipped with a high-performance Intel Atom E3845 quad-core, 1.91 GHz, processor that supports both a wide operating temperature range (-20 ~ 60 °C) and wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 1 x USB 3.0, 1 x isolated RS-422/485, and dual Intel Gigabit Ethernet, ensures easy integration and connectivity. With the inclusion of 1 x PCI/PCIe expansion slot, PPC-3150 can be integrated with fieldbus protocols or proprietary cards for increased application potential. CPU Cores 2 CPU Family Intel Core Base CPU Speed 2.1 to 3.0 GHz Brightness 400+ nit Resolution 1024 x 768 Screen Size 10.1-15" Video Output Display Port, VGA LAN Ports 1-4 Serial Ports 3-4 USB 3.0 3-4 Max Memory 16 GB Operating System Windows 7, Windows 10, Linux Effective Memory Speed 1866 MHz, 2400 MHz Form Factor Panel PC Native Storage Type 2.5" SSD Mounting VESA Memory 1 slot SODIMM 1866/2133/2400 max 16GB Watchdog TImer 255 levels Display Type 15" TFT LED Display Size 15" Max Resolution 1024 x 768 Luminance 500 Viewing Angle 88(left), 88(right), 88(up), 88(down) Backlight Lifetime 70,000hr Contrast Ratio 2500 Light Transmission 85% +-3% Humidity 10-95% at 40C non condensing Operating Temperature 0-50C Storage Temperature -40-60C Shock IEC 60068-2-27 EMC CE, FCC class B, BSMI Weight 5.4 kg Dimension 312.5 x 391.4 x 55.35mm OD
Description
The PPC-3150 is a 15" fanless panel PC equipped with a high-performance Intel Atom E3845 quad-core, 1.91 GHz, processor that supports both a wide operating temperature range (-20 ~ 60 °C) and wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 1 x USB 3.0, 1 x isolated RS-422/485, and dual Intel Gigabit Ethernet, ensures easy integration and connectivity. With the inclusion of 1 x PCI/PCIe expansion slot, PPC-3150 can be integrated with fieldbus protocols or proprietary cards for increased application potential.
