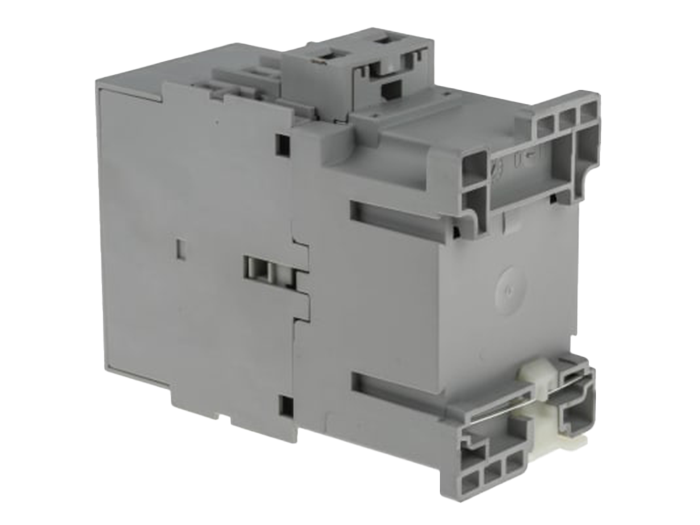

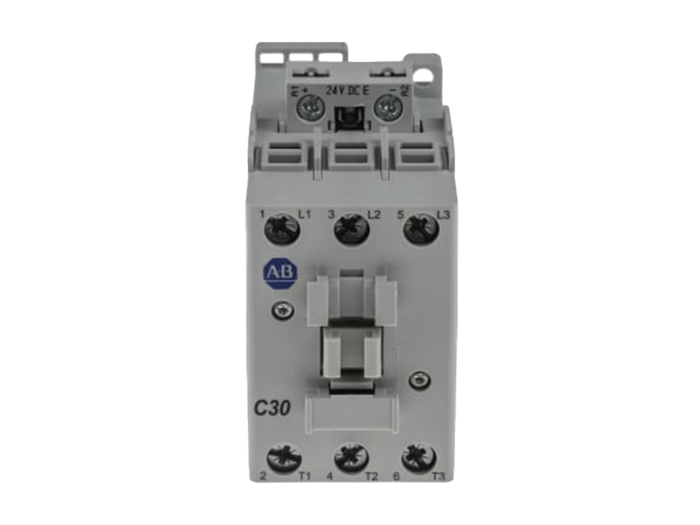

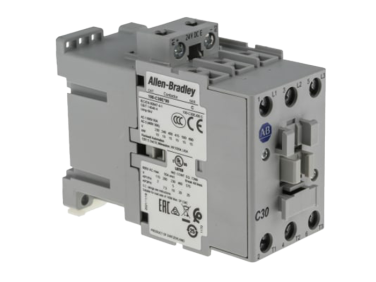

Allen Bradley 100 Series 100C Contactor, 24 V dc Coil, 3-Pole, 30 A, 15 kW, 3NO, 690 V ac

  • NG # 004056-HW-ALLEN-O56

Manufactured by:

This seller generally responds in under 48 hours

The compact yet powerful 100-C series of contactors by Allen Bradley provides exceptional performance with enhanced reliability and efficiency.


Specification

Coil Voltage24 V dc
Number of Poles3
Contact Voltage Rating690 V ac
Contact Current Rating30 A
Series100C
Range100 Series
Power Rating15 kW
FunctionMotor Control
Normal State Configuration3NO
Width45mm
Length81mm
Depth104mm
Minimum Operating Temperature-25°C
Maximum Operating Temperature+60°C

Description

These versatile IEC contactors can easily handle the high starting currents of modern motors and other loads with their high switching power. They are also designed to save panel space with their smaller frame. They offer high connection reliability and ease-of wiring due to having two separate power connections per pole, and have low power consumption, to save you valuable time and money. They are also RoHs compliant and are comprised of environmentally friendly materials, ensuring that you can make a better choice for your personnel and the planet.
