Allen Bradley Guardmaster 440T Safety Interlock Switch, 2NO/2NC, Keyed, Stainless Steel
-
NG # 004042-HW-ALLEN-O42
Manufactured by:
Allen Bradley Guardmaster - RKSE series security keys mounted on electrical control unit. Provide enhanced security and stability for your machine guard safety process and protect personnel with the Prosafe RKSE Series Rotary Key Switch box by Allen Bradley Guardmaster.
Specification
Lock Style Keyed Normal State Configuration 2NO/2NC Lock Type Interlock Maximum AC Voltage 750V Connection Type M20 Housing Material Stainless Steel Range Prosafe IP Rating IP65 Number of Head Directions 1 Series 440T Length 143mm Maximum Operating Temperature +40°C Minimum Operating Temperature -10°C Width 80mm Maximum Current 20A
Description

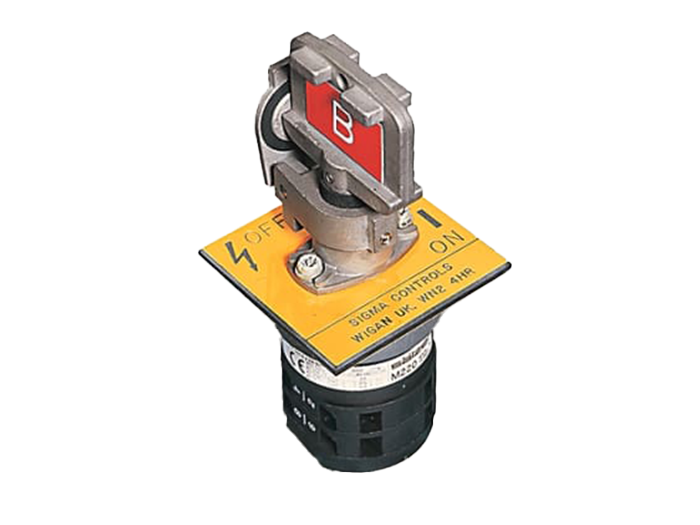

This trapped key unit isolates power to machinery when the coded key is removed, ensuring that personnel cannot access dangerous areas where machinery may be in motion. This unit is perfectly designed for safety applications which require a pre-defined sequence of operations to access machinery. This type of reliable mechanical interlocking device is usually used in environments where electrical interlock systems may be unsuitable or expensive to install and maintain, such as areas with explosive atmospheres.
