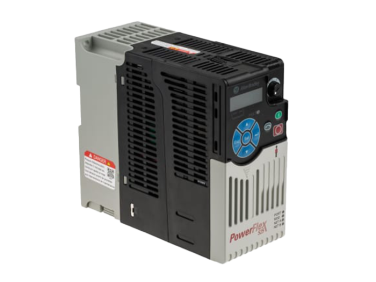

Allen Bradley Inverter Drive, 1.5 kW, 3 Phase, 400 V ac, 4 A, PowerFlex 525 Series
-
NG # 004065-HW-ALLEN-O65
Manufactured by:
Allen Bradley PowerFlex 525 – Three Phase Inverter Drives
Specification
Power Rating 1.5 kW Phase 3 Supply Voltage 400 V ac Current Rating 4 A For Use With Networked Machine Series PowerFlex 525 Field Bus Communication Type DeviceNet IP Rating IP20, IP30 Output Frequency 500Hz STO Yes Drive Type Vector Control Mounting Type DIN Rail Filter Included Yes Control Panel Yes Function Motor Control Overall Length 72mm Overall Width 152mm Standards Met ACS 156, ATEX, CE, CE Marine (RINA), C-Tick, cUL, GOST R, KCC, RoHS, Semi F47, TUV, UL Overall Depth 172mm Special Features Enhance Safety, Excellent Reliability, Flexible Control Interface Ethernet
Description
Experience dependable and versatile motor control and greater ease-of-use with the PowerFlex 525 Three Phase Inverter Drives by Allen Bradley. These AC drives are a cost-effective, ideal solution for networked machines and system integration and are highly suitable for applications such as conveyors, fans, pumps, and mixers.
