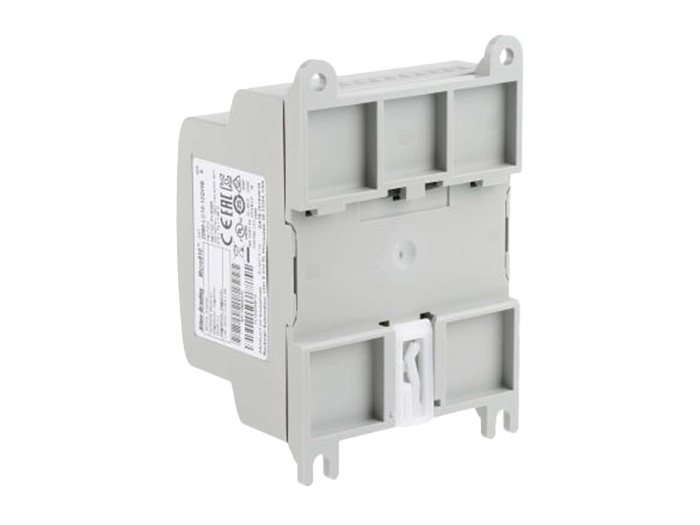

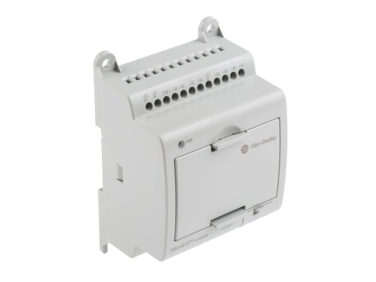

Allen Bradley Micro810 Series PLC CPU, Analogue, Digital Output, 8-Input, Analogue, Digital Input
-
NG # 004014-HW-ALLEN-O14
Manufactured by:
Micrologix 810 PLC - CPU. The Micro810 12 Point controller is an economical brick-style controller with embedded inputs and outputs. It can accomodate a USB adapter and an LCD module. It can also accomodate any 24V dc output power supply that meets minimum specifications such as the optional Micro800™ power supply.
Specification
Manufacturer Series Micro810 Number of Inputs 8 Output Type Analogue, Digital Input Type Analogue, Digital Number of Outputs 4 Voltage Category 24 V dc Network Type USB Kit Included Yes Dimensions 91 x 75 x 59 mm Program Capacity 2 kB Depth 59mm Length 91mm Width 75mm Number of Communication Ports 1 Memory 4 kB Maximum Operating Temperature +65°C Minimum Operating Temperature -20°C
Description
The Micro810 controller functions as a smart relay with high current relay outputs, but with the programming capabilities of a micro PLC. As part of the Micro800 family, the Micro810 controller shares programming environment, plug-ins and accessories
