Allen Bradley Micro850 Series PLC CPU for Use with Micro800 Series, Relay Output, 14-Input, AC Input
-
NG # 004022-HW-ALLEN-O22
Manufactured by:

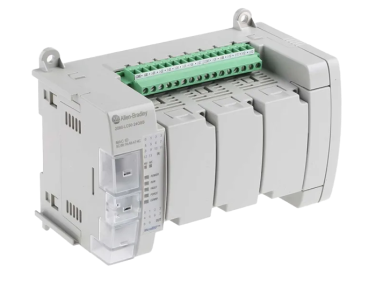

Allen Bradley Micro850 Programmable Logic Controller Experience superior I/O performance, customisation, and versatility with the Micro850TM Programmable Logic Controller by Allen Bradley, designed to be the leading controller of the Micro800 family.
Specification
Manufacturer Series Micro850 Number of Inputs 14 Output Type Relay For Use With Micro800 Series Input Type AC Number of Digital Inputs 10 Voltage Category 24 V dc Number of Outputs 10 Number of Digital Outputs 14 Network Type Ethernet, USB Interface Ethernet Length 158mm Maximum Operating Temperature +65°C Mounting Type DIN Rail Number of Communication Ports 2 Minimum Operating Temperature -20°C Dimensions 158 x 90 x 80 mm Depth 80mm Output Current 16 mA Communication Port Type RS232, RS485, Serial Width 90mm
Description
These expandable controllers are specially designed to handle larger, stand-alone machine control applications which require greater I/O capabilities and flexible communications. They feature space-saving Plug-in, Expansion I/O modules, and removable terminal blocks for enhanced convenience. These programmable controllers are also equipped with the same form factor, Plug-in support, instruction/data size and embedded motion capabilities as the Micro830 devices. Micro850 PLC’s include extra communication connection options through an embedded 10/100 Base-T Ethernet port. They are expandable up to a maximum of 132 digital I/O points to give you optimal performance and functionality. For ease-of-installation Micro800 system control devices share common software and accessories.
