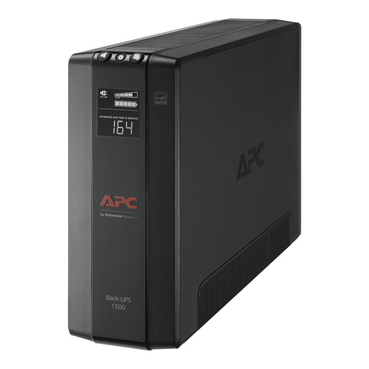

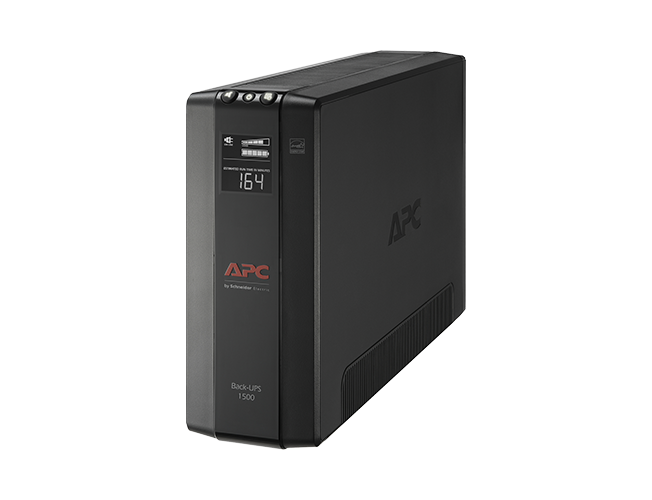

APC Back-UPS Pro, 1500VA, Tower, 120V, 10 NEMA 5-15R outlets, AVR, LCD
-
NG # 00352-HW-SCHNEIDER-052
-
MF # BX1500M
Manufactured by:
This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 1500VA tower UPS has 10 total outlets, 5 of which are battery backup, and 5 that are surge protection only.
Specification
| Lead time | Usually in Stock |
|---|
Run time for load W information_stroke Min-max: 90-900 W | 2min 48s
|
|---|---|
Max. Capacity Used information_stroke |
100 %
|
| Main Input Voltage | 120 V |
| Main Output Voltage | 120 V |
| Kw Rating | 900 W |
| rated power in VA | 1500 VA |
| Product or Component Type | Uninterruptible power supply (UPS) |
| Input Connection Type | NEMA 5-15P |

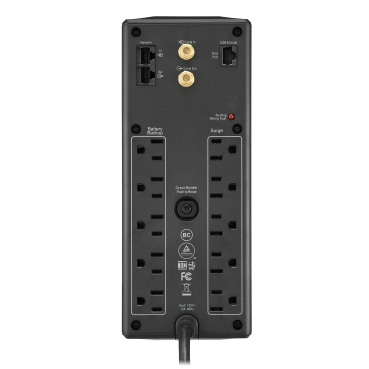

| output connection type | 5 NEMA 5-15R 5 NEMA 5-15R surge |
| Cable length | 6 ft (1.8 m) |
| Battery Type | Lead-Acid battery |
| Range of Product | Back-UPS Pro |
| Run Time |
|
|---|---|
| Efficiency |
|
| Included Battery Modules | 0 |
| Battery Slots Empty | 0 |
| Typical recharge time | 16 h |
| RBC Quantity | 1 |
| Battery Voltage | 24 V |
| Battery Charge Power (Watts) | 11 W rated |
| Extendable Run Time | 0 |
| Replacement battery |
|
| Provided equipment | User Manual USB cable |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Height | 9.84 in (25 cm) |
|---|---|
| Width | 3.94 in (10 cm) |
| Depth | 15.04 in (38.2 cm) |
| Net Weight | 24.3 lb(US) (11 kg) |
| Mounting preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Input Frequency | 60 Hz +/- 3 Hz |
|---|---|
| Plug standard | NEMA 5-15P |
| Efficiency at full load | 88...139 V |
| Maximum Input Current per Phase | 12 A |
| Switching current capacity | 15 A |
| Max Configurable Power (Watts) | 900 W |
|---|---|
| Output Frequency (sync to mains) | 60 Hz sync to mains |
| Topology | Line Interactive |
| Wave type | Stepped approximation to a sinewave |
| Maximum configurable power in VA | 1500 VA |
| Transfer Time | 8ms typical : 10 ms maximum |
| Product Certifications | California (CEC) Battery Charger ENERGY STAR V2.0 (USA) TUV C-US certified |
|---|---|
| Equipment protection policy | Lifetime : $250000 |
| Ambient air temperature for operation | 32…104 °F (0…40 °C) |
|---|---|
| Relative Humidity | 0…95 % |
| Operating altitude | 0...3000 ft |
| Ambient Air Temperature for Storage | 5…104 °F (-15…40 °C) |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…5000 ft (0.0000000000…1524.0000000000 m) |
| Acoustic level | 45 dBA |
| Online Thermal Dissipation | 67.6 Btu/h |
| control panel | Multi-function LCD status and control console |
|---|---|
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rating | 789 J |
|---|---|
| Filtering | Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: in |
| Data line protection | Coaxial cable for CATV/SATV/modem/audio-video |
| GTIN | 731304331780 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.70 in (34.8 cm) |
| Package 1 Width | 19.33 in (49.1 cm) |
| Package 1 Length | 8.94 in (22.7 cm) |
| Package 1 Weight | 28.0 lb(US) (12.7 kg) |
| SCC14 | 10731304331787 |
| Warranty | 3 years repair or replace |
|---|
Show less specifications
Description
The UPS has a surge energy rating of 789 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 3-year warranty and CE product certification.
