Aten 1-Local/Remote Shared Access 8-Port Multi-Interface Cat 5 KVM over IP Switch

  • NG # 006206-HW-ATEN-006

Manufactured by:

This seller generally responds in under 48 hours

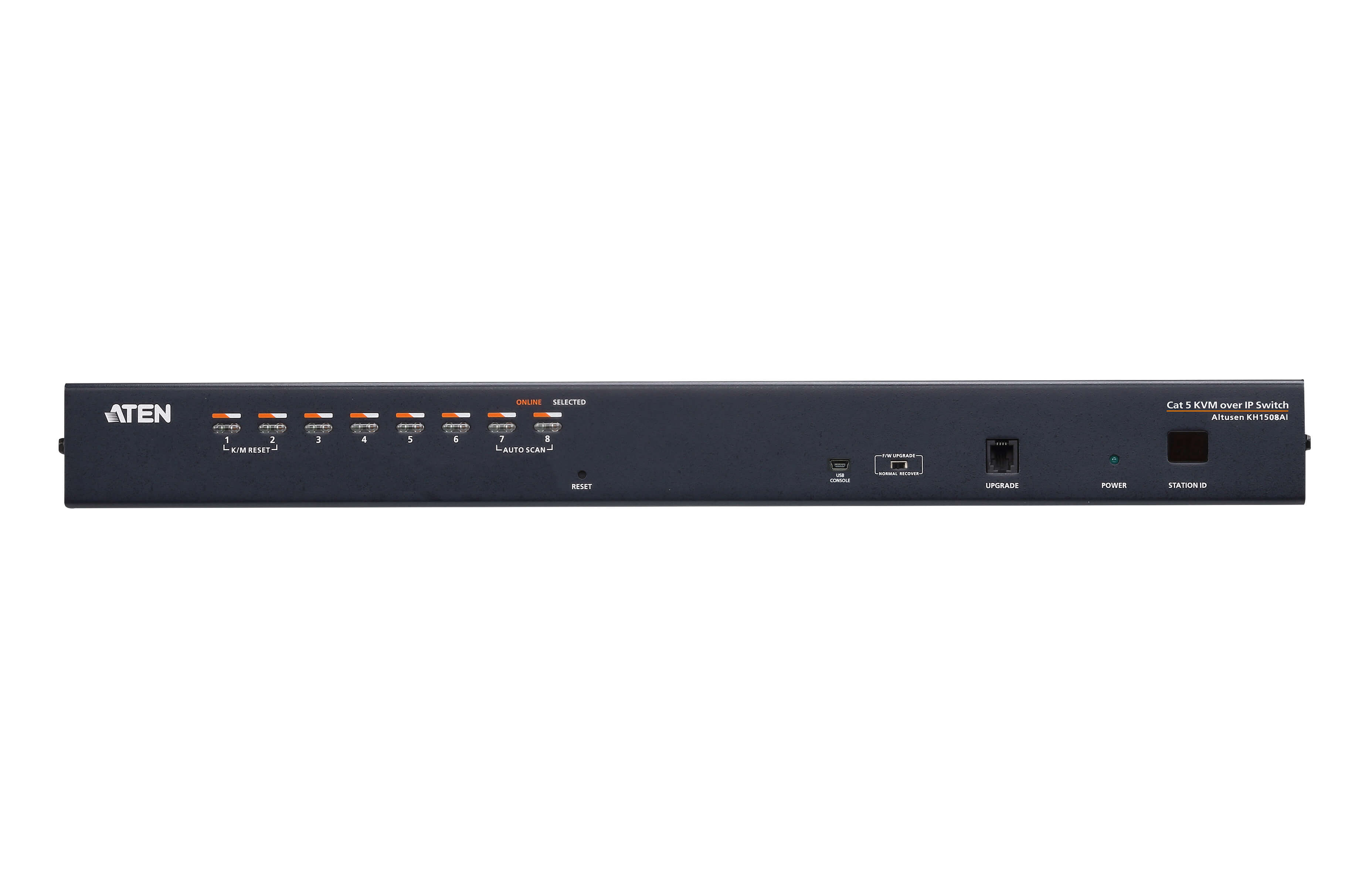

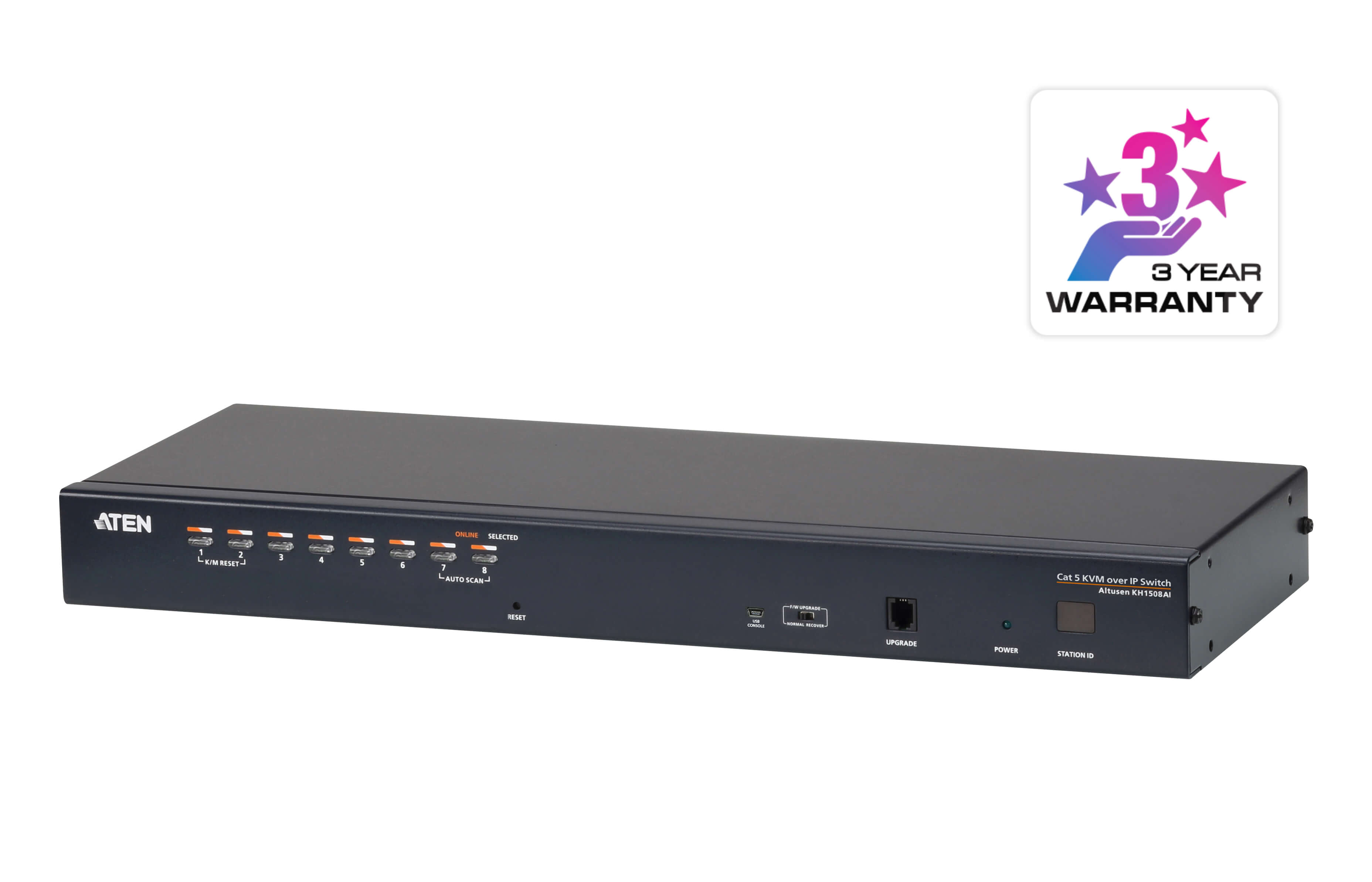

The KH1508Ai Cat 5 High-Density KVM over IP Switch offers 8 computer port configurations in a 1U-high housing for convenient rack mounting. They allow local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser.

Add to favorites | Compare this product

Specification

Hardware

  • High port density – RJ-45 connectors for up to 8 ports in a 1U housing
  • A dedicated USB port directly connects to a laptop for easy Console operation
  • One bus for remote KVM over IP access
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Local console provides PS/2 and USB keyboard and mouse support
  • Multiplatform support - Windows, Mac, Sun and Linux
  • Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60 Hz* up to 30
  • meters, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters
  • Daisy-chain up to 15 additional units – control up to 128 computers from a single console

Management

  • Up to 64 user accounts
  • Up to 32 concurrent logins
  • End session feature – administrators can terminate running sessions
  • Event logging and Windows-based Log Server support
  • Local Log Event
  • Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to reconfigure the adapters and switch
  • Port Shared Mode allows multiple users to gain access to a server simultaneously
  • Integration with ATEN CC2000 Management software
  • Power Over the NET™ integration for remote power control
  • Firmware upgradeable
  • IPv6 capable

Description

The KH1508Ai features RJ-45 connectors and Cat 5e/6 cable to link to the computers and supports multiplatform. This ensures that high quality signals can travel over long distance - up to 50m without the need for KVM extenders. Utilizing KVM adapter for the final linkup, the KH1508Ai permits any combination of PC, Mac, Sun computers, and serial devices to coexist on the installation.
