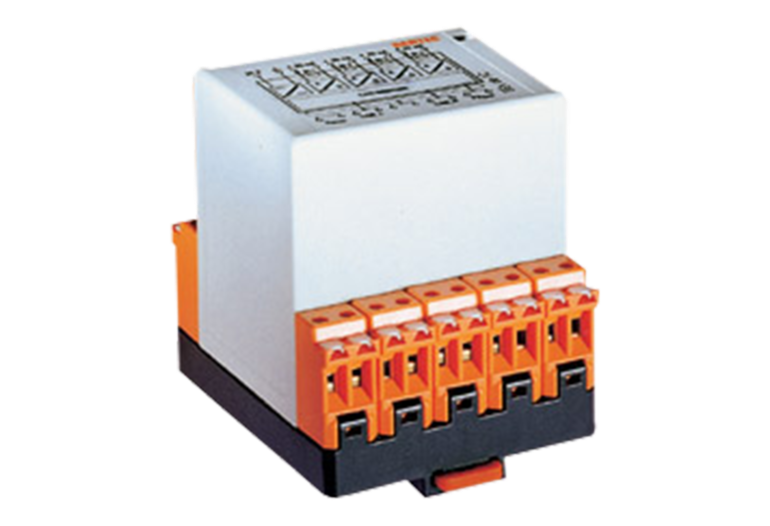

Bartec Power supply unit AC/DC 110 up to 250 V for zone 1/21

  • NG # 003909-HW-WIN-O09

Manufactured by:

This seller generally responds in under 48 hours

Add to favorites | Compare this product

Specification

Protection classModule: IP 66/IEC 60529
Terminals: IP 20/IEC 60529
MaterialHigh-quality thermoplastic
InstallationTH 35 x 15 (7.5) EN 60715
Storage temperature-20 °C to +65 °C
Weight0.600 kg
Input voltageDC 110 V to max. 320 V_x000D_ AC 100 V to max. 250 V 50/60 Hz
Output voltagesee data sheet
Output currentsee data sheet
ConnectionTerminals 2.5 mm², fine stranded

Description

This power supply unit is suitable for universal use with either AC or DC voltage on the input side. The DC output voltage is stabilised and short-circuit and overload proof to a limited extent. An additional output circuit protection is recommended.
