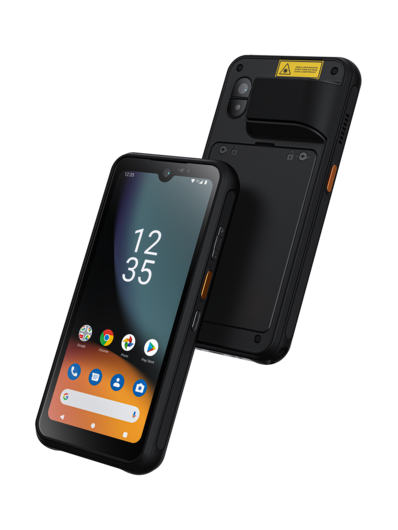

BARTEC SC9EX1 Smartscanner World's most compact 5G Smartscanner for Zone 0/Zone 1/Division 1
-
NG # 003919-HW-WIN-O19
Manufactured by:
This
seller generally responds in under 48 hours
BARTEC SC9EX1 Smartscanner world's most compact 5G Smartscanner for Zone 0/Zone 1/Division 1
Specification
Hardware Specifications
- Processor: Qualcomm® QCM6490 Octa Core 2.7 GHz
- Memory (RAM): 8 GB
- Mass Storage: 128 GB
- Display: 6.1" AMOLED
- Resolution: 1080 x 2340 pixels
- Front Glass: Gorilla® Glass Victus® (generation 8)
- Touch Function: Capacitive Touch (Stylus, bare or gloved fingertip input)
- Size (L x W x H): 168.7 mm x 83.4 mm x 30.8 mm (6.6 inch x 3.3 inch x 1.2 inch)
- Weight (with battery): 370 g (0.82 lb)
- Battery: Lithium-ion battery 3.68 V/4300 mAh (15.8 Wh)
Connectivity and Network
- SIM: Dual SIM (Nano SIM + eSIM)
- Wireless Connections: WiFi 6, 5G
- Radio Frequency Band:
- 5G NR (Bands: 1-3, 5, 7, 8, 20, 25, 28, 38, 40, 41, 48, 66, 71, 77, 78)
- LTE (Bands: 1-5, 7, 8, 12, 13, 17, 20, 28, 38, 40, 41, 48, 66, 71)
- UMTS (Bands: 1, 2, 4, 5, 8)
- GSM (Bands: 850, 900, 1800, 1900)
- WLAN-WiFi: Wi-Fi 6 IEEE 802.11a/b/g/n/ac/ax, 2x2 MU-MIMO, Dual band Simultaneous (up to 2042 Mbps data rate and 160 MHz bandwidth)
- Bluetooth: Bluetooth® 5.2 (including Low Energy long range and multiple broadcasts)
- GNSS: GPS, A-GPS, Glonass, Galileo, and BeiDou
- NFC: Read/write NFC tags (e.g., ISO 14443 Type A), contactless payments, and card emulation
Data capture and Audio
- Barcode scanner: SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology
- Back Camera: 48 MP with Auto Focus
- Front Camera: 8 MP
- Voice & Audio: Two microphones, Vibrate alert, Speaker, Bluetooth wireless headset support, High-quality speakerphone
- Notifications: Audible tone, multi-color LEDs, vibration
Additional Features and Accessories
- Operating System: Android 13TM
- Operating Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
- Protection Class (IEC 60529): IP68
- External I/O: Charging pins, USB-C Port
- Sensors: Accelerometer/Gyroscope, Magnetometer/Compass, Pressure/Barometer, Proximity and Ambient light
- Buttons: 1x on/off button, 2x programmable function button (for PTT, Emergency call or other functions), 1x volume buttons (+/-)
- Scope of Delivery: BARTEC SC9EX1 Smartscanner, Battery, Battery tool, USB-C cable, Quick Start Guide
- Required (not included): USB-C Charger (e.g., Wall Charger Type G7-S0Z0-0014/0015/0016/0017)
Description
The BARTEC SC9EX1 Smartscanner is the world’s most compact 5G smartscanner for ATEX/IECEx Zone 0/1/21 and NEC Class I, II, III, Division 1 . Featuring a seamlessly integrated Zebra® scan engine, it adds unparalleled scanning efficiency and accuracy. It shares a broad range of accessories, runs on Android 13TM, and offers comprehensive lifecycle support.
