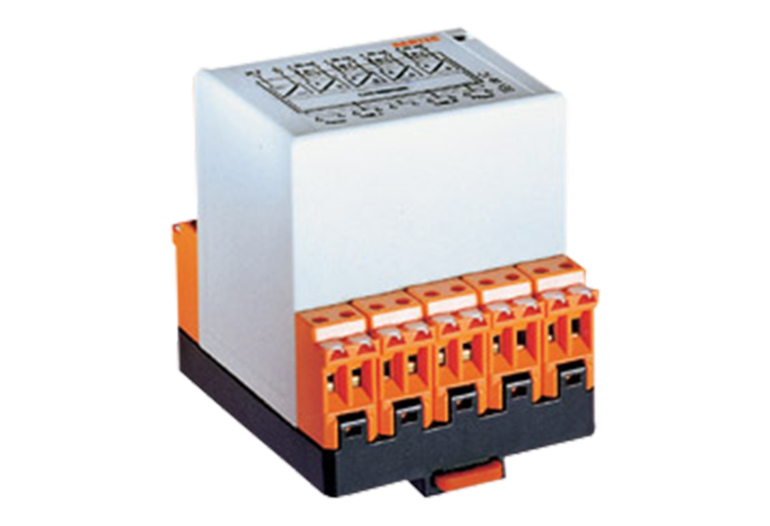

Bartec Transformer AC 24 V/500 mA for zone 1/21
-
NG # 003913-HW-WIN-O13
Manufactured by:
This
seller generally responds in under 48 hours
Specification
Protection class Module: IP 66/IEC 60529
Terminals: IP 20/IEC 60529Material High-quality thermoplastic Installation TH 35 x 7.5 (15) EN 60715 Storage temperature -40 °C to +60 °C Weight 0.900 kg Input voltage AC 230 V ± 10 %, 50 Hz Output voltage AC 24 V ± 10 % Output current max. 500 mA Power 12 VA Connection Terminals 2.5 mm², fine stranded
Description
The control transformer converts mains voltage to low voltage. Input and output are electrically isolated. Especially suitable for supplying low power AC devices in zone 1 hazardous areas.
