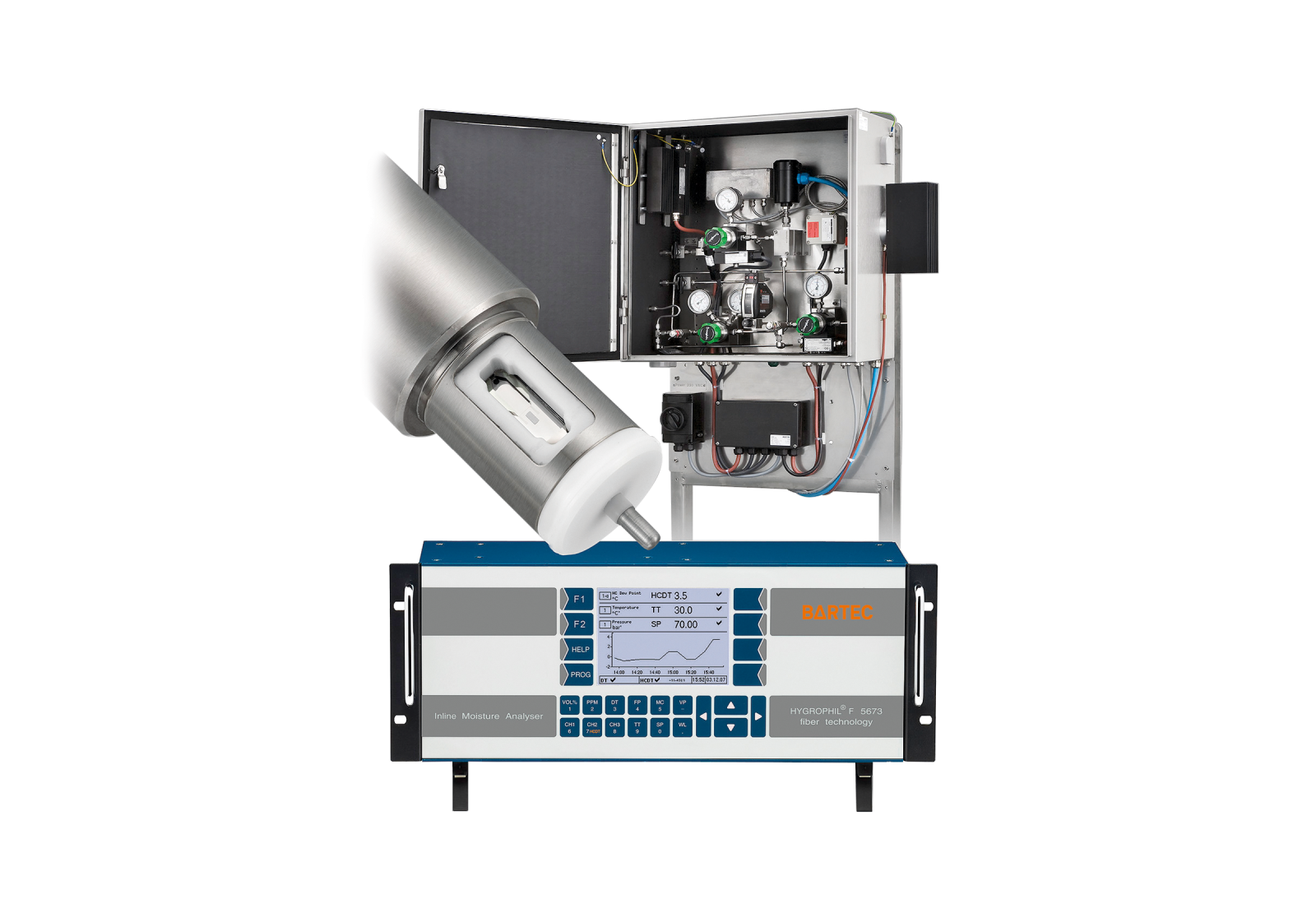

HYGROPHIL HCDT Hydrocarbon Dewpoint Analyzer
-
NG # 003926-HW-WIN-O26
Manufactured by:
Specification
Measuring Technology Fiber optic Fabry-Pérot-Interferometer
Chilled Mirror with detection by internal total reflectionMeasurement Channels 1x Trace Moisture (Water Dewpoint Temperature)
1x Hydrocarbon Dewpoint Temperature (HCDT)Moisture Sensor Calibrated Range: Dew point temperature -80 °C to 20 °C (-112 °F to 68 °F)
Accuracy: +/- 1K
Customized calibration / validation on request
Temperature Range: -30 °C to 60 °C
Pressure Range: 0 to 20 MPa (0 to 2900 psi)
Protection Type: IP65 (in built-in state)HCDT Sensor Measurement Range (Standard): -20 °C to +5 °C (-4 °F to 41 °F)
Measurement Range (Extended): -30 °C to + 20 °C (-22 °F to 68 °F)
Customized calibration / validation on request (e.g. 5 mg/m³)
Accuracy: +/- 1K
Pressure Range: max. 4 MPa (max. 580 psi)
Protection Type: IP65Interfaces 3x Analog Outputs (0/4…20 mA)
1x Analog Outputs (0/4…20 mA Ex-i)
MODBUS TCP/IP
MODBUS RTU (RS232/RS485)
PROFIBUS
RS232HMI Graphic Display (320 x 240)
Red backlit touch-screenAmbient conditions Evaluation Unit: 0 °C to 50 °C (32 °F to 122 °F)
Moisture Sensor: -30 °C to 60 °C (-22 °F to 140 °F)
HCDT Sensor: -20 °C to 60 °C (-4 °F to 140 °F)Explosion Protection ATEX
IECEx
CSA
EAC (on request)Process Integration Sensor Standard Sample Conditioning System
Sample Conditioning System 5985-72 (incl. CE Declaration of Conformity)
Customized Sample Conditioning SystemReady for Hydrogen Hydrogen conent in Natural Gas ≤ 10 Mol %: on request
Hydrogen conent in Natural Gas ≤ 20 Mol %: on request
Operation in pure Hydrogen: on request
Description
HYGROPHIL® F 5673 is a high-quality, microprocessor-controlled fibre-optic hygrometer for measuring the moisture or trace humidity at low dew-point temperatures in gases and liquids. The version HYGROPHIL® HCDT is equipped with a special sensor and is used in one-channel mode for measuring the dew point of hydrocarbons.
