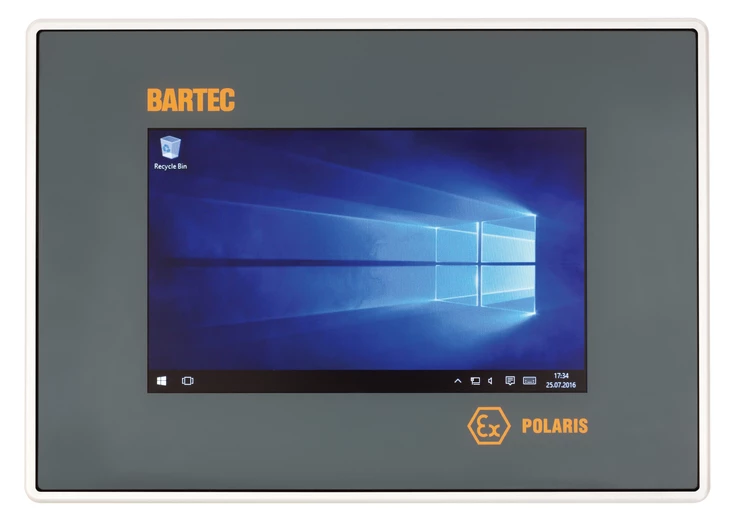

POLARIS SMART HMI 7" W for Zone 1/21
-
NG # 003947-HW-WIN-O47
Manufactured by:
The POLARIS SMART HMI 7" W is an innovative further development of the POLARIS series. The high-resolution display with LED backlighting and touchscreen allows intuitive and comfortable operation. It is optionally available in a capacitive or in a resistive version.
Specification
Structure Front-panel fitting Dimensions 240 mm x 170 mm x 80 mm Wall cut-out 226 mm x 153 mm Display 7" W TFT colour display
262,144 colours
WVGA resolution, 800 x 480 pixels
brightness 500 cd/m2
visible surface approx. 152 mm x 91 mm
contrast 600:1Interface 2 x Ex i USB 2.0
2 x Ex e USB 2.0
1 x Ethernet 100 BaseTOperating system Windows® 10 IoT or
Windows 7® Ultimate or
Windows 7® EmbeddedCPU CPU Intel® AtomTM (E 3826)
Dual Core with 2 x 1.46 GHz
RAM: 2 GB (optional: 4 GB)
4 GB internal Flash Drive
hard-drive SSD with 128 GB (MLC)
Description
The state-of-the-art LED display technology offers optimum contrast even with large viewing angles or in poor lighting conditions. As standard, the Panel PC is equipped with a third-generation processor, the Intel® AtomTM with 2 x 1.46 GHz. The open Windows operating system makes the device series unique on the market. It is also possible to work with the BMS-Graf-Pro. Connection to the control or to the process control system is facilitated by Ethernet. The front-panel insertion allows easy installation. On request, the devices are also available as ready-made system solutions in stainless-steel enclosures for wall or floor mounting. The intrinsically safe USB interfaces are accessible on the back. Intrinsically safe input devices are connected also.
