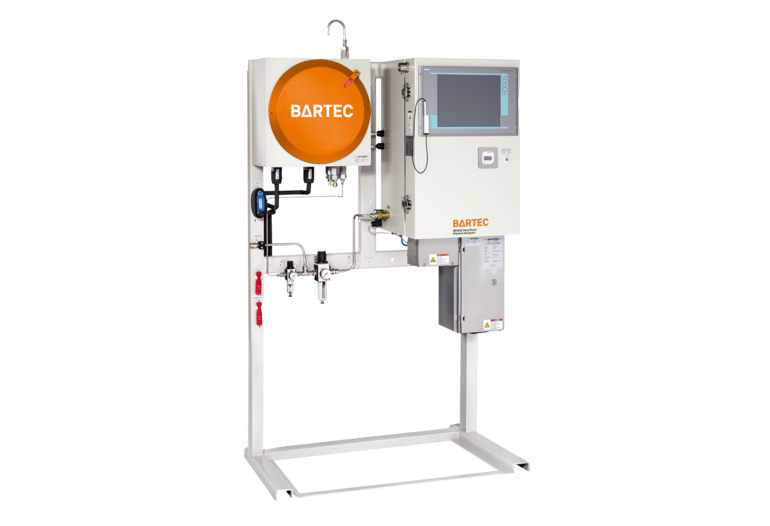

Pour Point Process Analyzer
-
NG # 003935-HW-WIN-O35
Manufactured by:
To remain competitive, today’s refiners must employ all optimization and product control techniques available. The use of online physical property analyzers is one of the key features to reach those objectives because they measure important quality properties in the process directly.
Specification
Technology automatic tilting measuring cell Method compliant with: ASTM D97, DIN EN ISO 3016, IP 15 correlates with: ASTM D5949 Automatic Tilt Method similar to ASTM D5950 Sample at inlet filtered 50 μm, free of suspended water (≤ 37 cSt at inlet temperature)
approx. 20 to 40 l/h
1 to 3 bar (14.5 to 43.5 psi)
normal: 30 to 50 °C (86 to 133 °F) min. 20 K above pour point temperatureSample at outlet atmospheric pressure Electrical data max. 8 (4 to 20 mA; 1000 Ω); active isolated on request
4 to 20 mA; 160 Ω
24 V DC; max. 0.5 A
high: 15 to 28 V DC low: 0 to 4 V DC
24 V DC; max. 0.8 ACommunication MODBUS/RTU via RS485 or RS422 or FOC is
MODBUS/TCP via FOC is
pour point temperature (others on request)
Alarm, Ready/Valid
Stream Selection, Validation Request, Reset
via Ethernet (VDSL or FOC is)Ambient conditions operation 5 to 40 °C (41 to 104 °F) storage -20 to 60 °C (32 to 140 °F)+
operation 5 to 80 % relative humidity, non-corrosive; storage 5 to 80 % relative humidity, non-corrosive
IP 54 (comparable with NEMA 13)HMI touch display 19"
remote access on request
cyber security
operating system Windows10 enterprise LTSB
Bartec Benke control software PACSProcess connections tube fittings: typically Swagelok 6mm/12mm/18mm; others on request
sample inlet up to 2 sample streams and 1 validation stream
sample outlet
vent line (if required)
coolant (if required)Weight and dimensions approx. 300 kg (without options)
approx. 1140 x 1900 x 710 mm
free space right: 150 mm/left: 100 mm
Description
The pour point of a liquid is the temperature at which it still flows but starts losing its flow characteristics by becoming semi solid. For hydrocarbons the pour point temperature depends on the content of paraffin in the liquid but also on the viscosity that changes with temperature. The pour point temperature is an important quality parameter especially for lube oils but also for gas oils and fuel oils.
