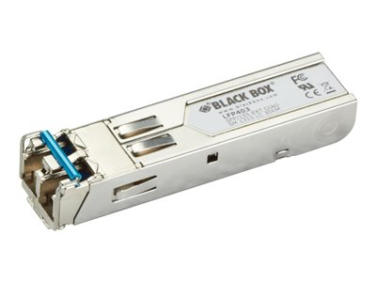

Black Box - SFP (mini-GBIC) transceiver module - TAA Compliant

  • NG # 2359-HW-BLACK-033

  • MF # LFP403

Manufactured by:

This seller generally responds in under 48 hours

Add to favorites | Compare this product

Specification

General
Link BudgetLFP401
TX Power: -7dBm
RX Sensitivity: -24dBm
Link Budget: 17dBm

LFP402
TX Power: -17dBm
RX Sensitivity: -32dBm
Link Budget: 15dBm

LFP403
TX Power: -11dBm
RX Sensitivity: -34dBm
Link Budget: 23dBm
ApprovalsCE, FCC, TUV, UL
Operating Humidity5 to 85% non condensing
Operating Temperature-40 to 185°F (-40 to 85°C)
Speed155 Mbps
Storage temperature-40 to 185°F (-40 to 85°C)
Item Specifications
Connectors(1) Duplex LC
Country of OriginTaiwan
Dimensions2.2-in. H x 0.6-in. W x 0.5-in. D (5.6 x 1.52 x 1.24-cm)
Weight0.036-lb. (0.016-kg)

Description

Modular flexible optical transceivers for data communications equipment. Reports basic link characteristics such as SFP type length of fiber link wavelength and bit rate. Extended diagnostics enable this SFP to also report information such as temperature TX and RX power voltage and bias current. Hot-pluggable interface enables you to change SFPs on the fly when your network requirements change. Compatible with SFP slots on most network devices. For details contact our FREE Tech Support.
