Black Box - USB extender - USB 2.0
-
NG # 2360-HW-BLACK-034
-
MF # IC400A-R2
Manufactured by:
Specification
General Connectivity 30 USB devices Environmental Operating temperature range: 32 to 122° F (0 to 50° C);
Operating humidity: 20 to 80%, noncondensing;
Storage humidity: 10 to 90%, noncondensingPower Local Unit: not required for normal operation, USB-powered;
Available at remote unit: 24 VDC @ 1 amp provides 4 x 600 mA for devicesRange 330 feet (100 meters) over CAT5e (or better) cable RoHS Yes Standards FCC (Class B), IC (Class B), CE (Class B);ESD Rating: EMC EN-61000-4-2:2001 4kV Contact, 8kV Air Item Specifications Connectors Local Unit: (1) USB Type-B; (1) RJ45;

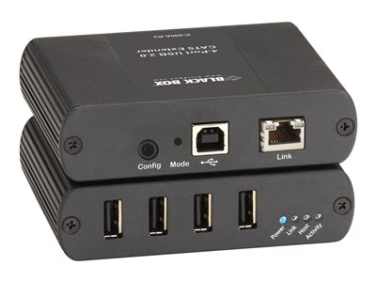

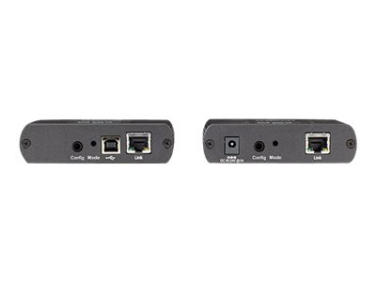

Remote Unit: (4) USB Type-A; (1) RJ45Country of Origin China Dimensions - Receiver 3.9-in. H x 3-in. W x 1-in. D (10 x 7.6 x 7.5-cm) Dimensions - Transmitter 3.9-in. H x 3-in. W x 1-in. D (10 x 7.6 x 7.5-cm) Weight 2.2-lb. (1-kg)
Description

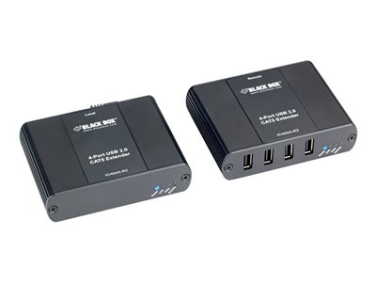

Extend a USB 2.0 connection beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over CATx UTP cable to four USB peripherals. Get USB connectivity anywhere. Install your USB devices anywhere! Combine the 4-Port CATx USB Extender with additional USB hubs to connect up to 30 USB devices. An AC power adapter at the remote unit provides up to 600mA max to each of the 4 USB ports. Use it for any or all of the following applications Industrial control KVM extension Digital signage Remote desktop USB connections Security Web camera and access control Medical Device connectivity USB Web device sharing printing scanning storage.
