Black Box VGA Extender - video extender
-
NG # 2331-HW-BLACK-005
-
MF # AC555A-R2
Manufactured by:
This
seller generally responds in under 48 hours
Specification
| General | |
| Distance | 500 ft. (152.4 m) maximum |
| Power | External: Input: 120 VAC, 60 Hz; Output: 5 VDC, 600 mA |
| Resolution (Maximum) | 1024 x 768 |
| User Controls | Equalizer selector switch |
| Item Specifications | |
| Connectors | Local Unit: (1) HD15 (Male) in; (1) RJ45; (1) 5 VDC in; (2) HD15 (Female) out Remote Unit: (1) RJ45; (1) 5 VDC in; (2) HD15 (Female) out |
| Country of Origin | Taiwan |
| Dimensions - Receiver | 0.6-in. H x 3.3-in. W x 2.3-in. D (1.5 x 8.4 x 5.8-cm) |
| Dimensions - Transmitter | 0.6-in. H x 3.3-in. W x 2.3-in. D (1.5 x 8.4 x 5.8-cm) |
| Indicators | On each local and remote unit: (1) Power, (1) Active |
| Weight - Receiver | 0.4 lb. (0.2 kg) |
| Weight - Transmitter | 0.4 lb. (0.2 kg) |
Description

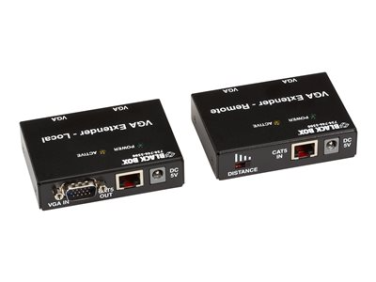

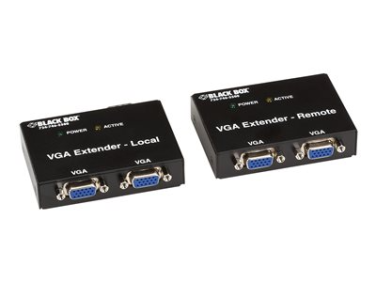

Place two remote VGA displays up to 500 feet from your PC. This unit features a simple and functional design. The transmitter (local unit) duplicates the input VGA signal and transmits it through CAT5 cable to the receiver (remote unit) which broadcasts the signal to two VGA outputs. The kit consists of a local unit (transmitter) and a remote unit (receiver).
