Cipherlab RS36 Series Touch Mobile Computer
-
NG # 004904-HW-CIPERLAB-004
Manufactured by:
This
seller generally responds in under 48 hours
Specification
| Item | RS36 | ||
|---|---|---|---|
| Performance | Operating System | Android 12 (GMS) / Android 14 | |
| CPU | Qualcomm Octa-core 2GHz | ||
| Memory | 64GB UFS Flash / 4GB LPDDR4X RAM | ||
| Expansion | Micro SD card slot with SDHC (up to 32GB) and SDXC (up to 2TB) support | ||
| SIM | 2 nano SIM/ 1 nano SIM and 1 eSIM (optional) | ||
| Operating Power | Hot-swappable and rechargeable 3.85V, Li-ion 4000mAh , Extended battery: 6000mAh | ||
| Working Hours1 | 12+ hours (standard battery), 18+ hours (extended battery) | ||
| Alert | 1 tri-color LED, 1 bi-color LED, vibrator | ||
| Interface Supported | 6-pin I/O & USB 3.1 Gen 1 Type-C with OTG | ||
| Wireless Communication | WWAN | EDGE/GPRS/GSM: 850/900/1800/1900 UMTS/HSPA+: B1/B2/B4/ B5/B6/B8 FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/ B17/B19/B20/B25/B26/B28/B66 TDD-LTE: B38/39/40/41 Support VoLTE and Worldwide Band | |
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w, IEEE 802.11ax (WI-FI 6 model only) | ||
| Additional WLAN Features | 802.11r (fast roaming), 802.11 v/k (Voice-Enterprise), MU-MIMO 2x2 (Wi-Fi 6 model only) | ||
| WPAN | Bluetooth® Class II, V5.1 dual mode, V2.1 with Enhanced Data Rate (EDR) | ||
| GPS3 | GPS/A-GPS/GLONASS/Galileo/Beidou | ||
| Data Capture | Barcode Scanning | 1D/2D imager (Standard range: SE4100/SE4770; Advanced range SE5500) | |
| RFID Read / Write | HF RFID 13 56 MHz frequency which supports 1SO14443A, ISO14443B, ISO15693, and Felica Support NFC (Peer-to-Peer, Card Reader, Card Emulation) | ||
| Camera | Rear :16 megapixels PDAF with LED flash / Front:5 megapixels2 | ||
| Physical Characteristics | Display | 5.5'' HD+ 720 (W) x 1440 (H), Transmissive IPS LCD, outdoor visibility (630 nit), optically bonded Touch Panel | |
| Touch Panel | Corning® Gorilla® Cover Glass, Capacitive touch supports stylus, bare or gloved fingertip input multi-touch, allow water rejection and wet finger | ||
| Interactive Sensor Technology | Light sensor, Proximity sensor, Motion sensor (Accelerometer, G-sensor), E-compass (Magnetometer), Gyroscope | ||
| Keypad | 1 programmable key, volume up and down keys, left and right trigger keys, power key | ||
| Audio | Speaker (80 dB at 40 cm), microphones with echo and noise cancellation | ||
| Size (LxWxH ) | 165 x 76.8 x 17.9 mm | ||
| Weight | 288g (with 4000mAh battery) / 319g (with 6000mAh battery) | ||
| User Environment | Operating Temperature4 | -20°C to 50°C / -4°F to 122°F | |
| Storage Temperature | -30°C to 70°C / -22°F to 158°F (without battery) | ||
| Humidity (non-condensed) | Operating 10% to 90% / Storage 5% to 95% | ||
| Impact Resistance | IP65 & IP68 With extended battery: 1.5m multiple drops (36 times), 500 tumbles. With standard battery: 1.5m multiple drops (36 times) & MIL-810H multiple drops (26 times), 1500 tumbles. With rubber boot: 1.8m (6 ft.) multiple drops onto concrete, 6 drops on each side. | ||
| Electrostatic Discharge | ± 15 kV air discharge, ± 8 kV contact discharge | ||
| Regularity Compliance | LTE : CE, FCC, IC, NCC, TBL, JRL, BIS, WPC, WEEE, RoHS, REACH, CA65, TSCA, BC, NrCAN, NBTC WI-FI 6 ONLY : SRRC, CCC, BSMI, NCC, CE, FCC, IC, WEEE, RoHS, REACH, CA65, TSCA, BC, NrCAN | ||
| Development Support | Android 12.0 SDK, HTML 5 API, Reader API (Java/Xamarin) | ||
| Application Software | ReMoCloud, EnDeCloud, ADC, WMDS, APPLock, Terminal Emulator, BT Printer Mate, Device Health, SIP Controller, Software Trigger, Signature Capture, EZEdit, CipherLab Assistant Service, Ping Tool, Wireless Initiator, IntelliWorker, Reader Config, Button Assignment, HF RFID Config, EZConfig, Enterprise Setting, Barcode To Setting, LogGen, Agility Intelligence, Cloud Message, EZcheck | ||
| Certified Application | ReMoCloud, EnDeCloud, SOTI MobiControl, VMware Workspace ONE, Ivanti Wavelink Velocity | ||

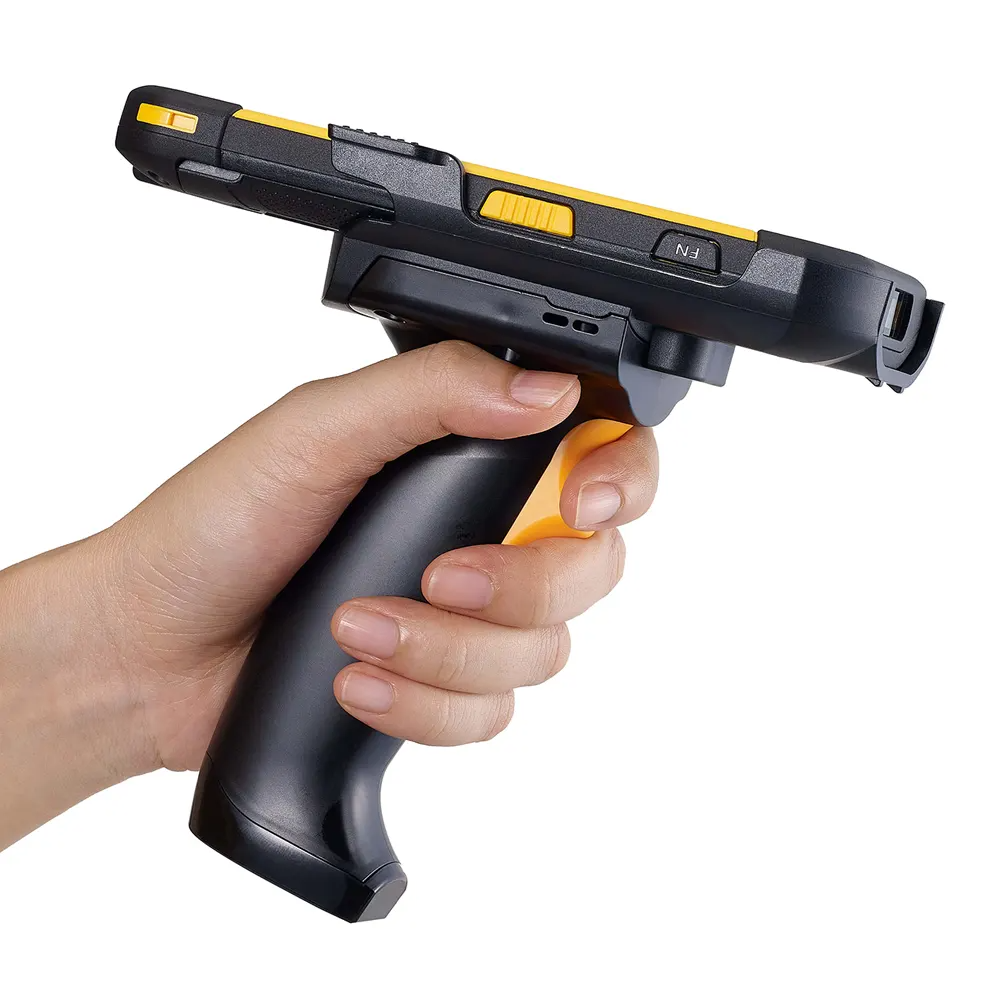

| Accessories | Charging and communication cradle, USB snap-on cable, Hand strap, Rubber boot, Pistol grip,4-slot battery charger, Multi-slot Terminal charging cradle2, UHF RFID reader2, Screen protector2 | ||
| Warranty | 1 year standard warranty | ||
Description
The RS36 features a powerful processor, high-resolution camera, Wi-Fi 6 transmission, Bluetooth 5.1 connectivity, OCR solution, sunlight-readable screen, and rugged design with IP65 and IP68 ratings. The RS36 is the perfect handheld terminal for mobile and frontline employees.
