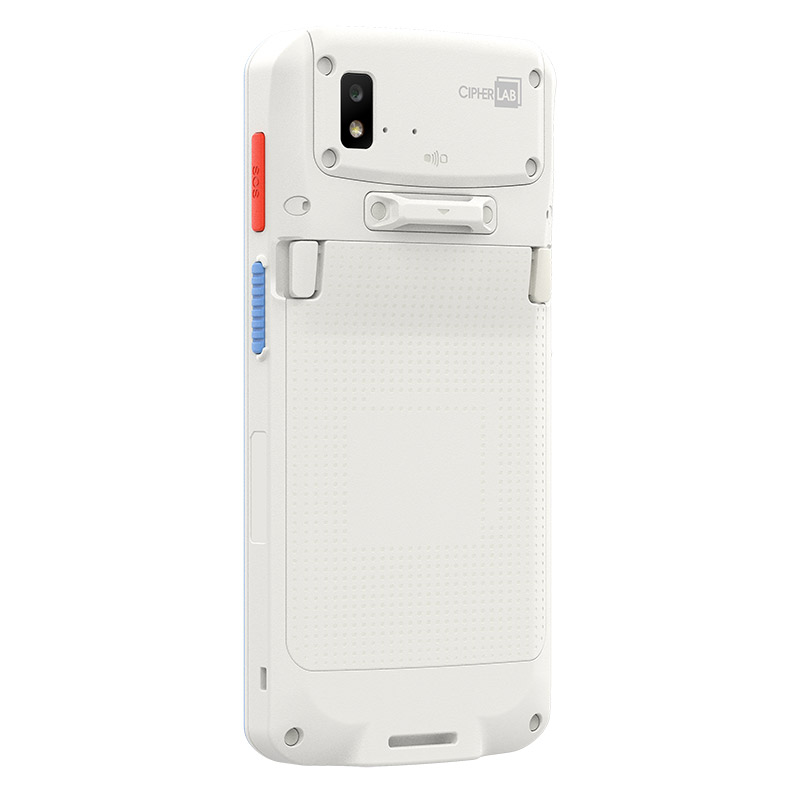

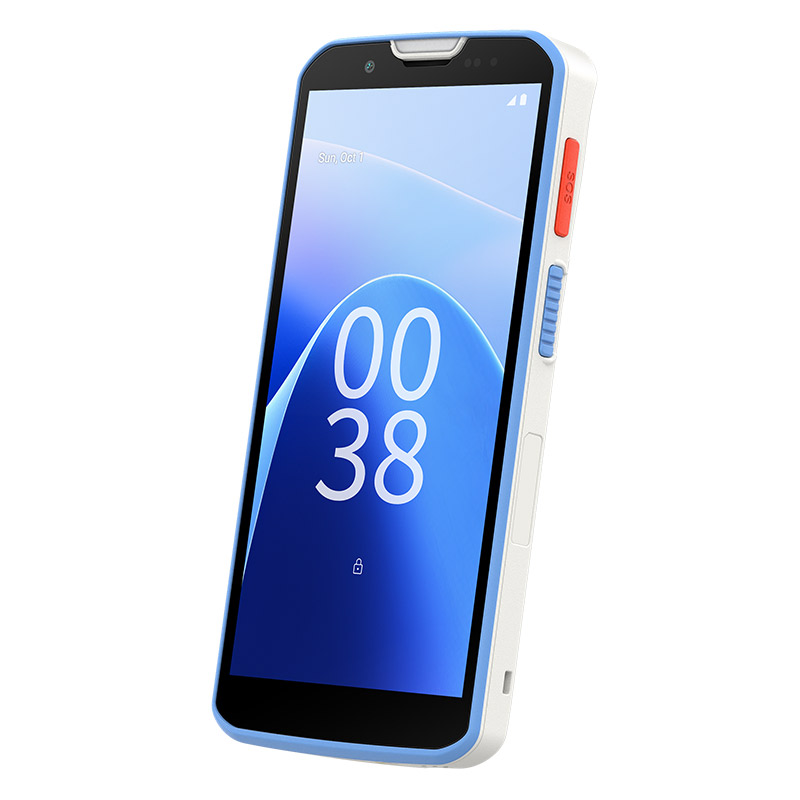

Cipherlab RS38H Series New 5G Healthcare Touch Mobile Computer
-
NG # 004901-HW-CIPERLAB-001
Manufactured by:
This
seller generally responds in under 48 hours
Specification
| Item | RS38H | |
|---|---|---|
| Performance | Operating System5 | Android 13 (GMS) upgradable to Android 18 |
| CPU | Qualcomm QCM4490 Kryo Octa-core CPU 2.4 GHz | |
| Memory | 8GB LPDDR5 SDRAM/128GB UFS3.1 ROM | |
| Expansion | Micro SD Card Slot x1 , SDHC up to 32GB, SDXC up to 1TB | |
| SIM | 1 Nano SIM/ 1 eSIM | |
| Operating Power | Hot-swappable and rechargeable Li-ion 4500mAh | |
| Working Hours2 | 14+ hours (standard battery) | |
| Fast Charging1 | Standard battery 2 hours from 0% to Full Capacity | |
| Alert | 1 tri-color LED, 1 bi-color LED, vibrator | |
| Interface Supported | 8-pin I/O & USB 3.1 Gen 1 Type-C with OTG | |
| Wireless Communication | WWAN | GSM:850/900/1800/1900 WCDMA: B1,B2,B4,B5,B6,B8, LTE:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B38/B39/B40/B41/B42/B43/B48/B66/B71 5G-NR FR1:n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29/n30/n34/n38/n39/n40/n41/n48/n66/n71/n77/n78/n79 Supports private networking (LTE/5G) |
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, support fast roaming DBS(Dual Band Simultaneous Support), WiFi6E(802.11ax), MU-MIMO2x2 | |
| WPAN | Bluetooth® 5.2, Class 2, V2.1 Enhanced Data Rate(EDR), V4 .2 Bluetooth Low Energy (BLE) | |
| GPS³ | GPS , GLONASS, Galileo, Beidou, QZSS, Dual-Band GNSS, a-GPS, supports XTRA | |
| Data Capture | Barcode Scanning | 1D/2D Imager (Standard Range SE4720) |
| RFID Read / Write | Full tags support base on NFC forum, ISO14443A&B, FeliCa, ISO15693. Support NFC (Peer-to-Peer, Card Reader, Card Emulation) | |
| Camera | Rear 16 Megapixels PDAF with LED flash / Front: 8 Megapixels fixed focus | |
| Physical Characteristics | Display | 6'' FHD + 1080(W) x 2160(H) / Outdoor visibility 630 nits (typ), optically bonded Touch Panel |
| Touch Panel | Corning® Gorilla® Victus, Two-mode supports glove and wet finger. Capacitive touch supports stylus, bare or gloved fingertip input multi-touch, allow water rejection and wet finger. Anti-fingerprint coating. | |
| Interactive Sensor Technology | Light sensor, Proximity sensor, Motion sensor (Accelerometer, G-sensor), E-compass (Magnetometer, Barometer), Gyroscope | |
| Keypad | 1 programmable key, volume up and down keys, left and right trigger keys, power key | |
| Audio | Dual Speaker (85dB at 40cm), 3 microphones with echo and noise reduction | |
| Size (LxWxH ) | 165.4 x 78.5 x 15 mm | |
| Weight | 268g (with 4500mAh battery) | |
| User Environment | Operating Temperature4 | -20°C to 50°C / -4°F to 122°F |
| Storage Temperature | -30°C to 70°C / -22°F to 158°F (without battery) | |
| Humidity (non-condensed) | Operating 10% to 90% / Storage 5% to 95% | |
| Impact Resistance | IP65 & IP68 1000 tumbles at 0.5 m; 1000 tumbles at 1 m with rubber boot, Standard: 1.5 m (5 ft.) multiple drops to tile over concrete per MIL STD 810H With rubber boot: 1.8 m (6 ft.) multiple drops to concrete over room temperature per MIL STD 810H | |
| Electrostatic Discharge | ± 15 kV air discharge, ± 8 kV contact discharge | |
| Regularity Compliance | LTE : CE, FCC, IC, NCC, TBL, JRL, BIS, WPC, WEEE, RoHS, REACH, CA65, TSCA, BC, NrCAN, NBTC WI-FI 6 ONLY : SRRC, CCC, BSMI, NCC, CE, FCC, IC, WEEE, RoHS, REACH, CA65, TSCA, BC, NrCAN | |
| Development Support | Android 13.0 SDK, HTML 5 API, Reader API (Java/Xamarin/.NET MAUI) | |
| Application Software | Reader Config, Terminal Emulation, Button Assignment, Device Health Dashboard, LogGen, AppLock, BT Printer Mate,A-Demo, Signature Capture, HF RFID, Configuration, Ping Tool, Software Trigger key, Enterprise Settings, SIP Controller, BarcodeToSetting, EZConfig, Ezedit, Chrome, OCR | |
| Certified Application | SOTI MobiControl, AirWatch, Ivanti, ReMoCloud, EnDeCloud | |

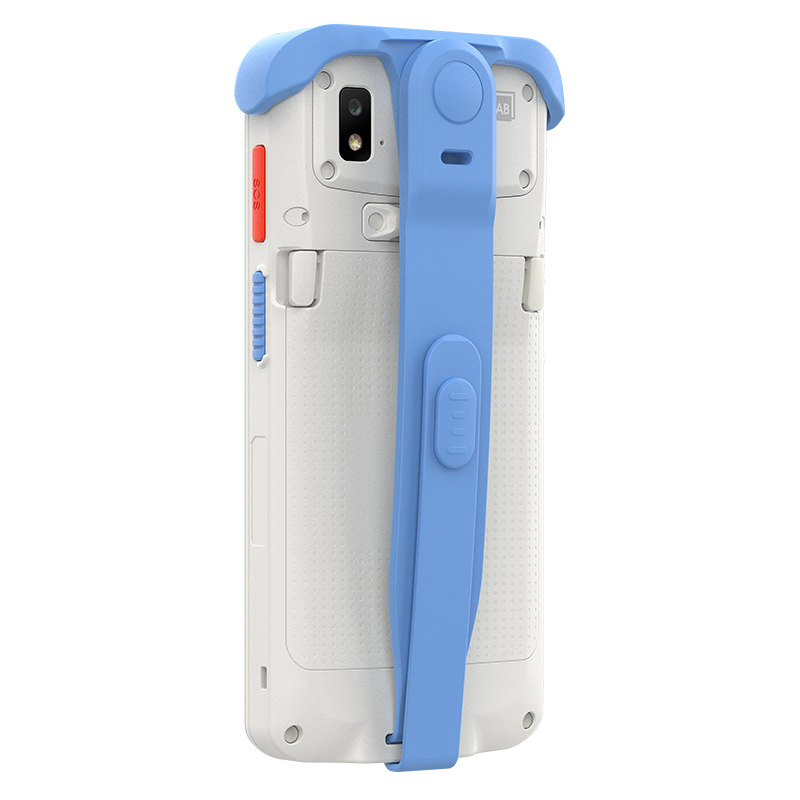

| Accessories | single charging cradle, workstation connect cradle, 4-slot battery charger, 4-slot battery and 4 terminal charger, 5-slot terminal charger, Hand strap, Screen protector, carrying clip, USB Type-C plug | |
| Warranty | 1-year standard warranty | |
Description
Built for 24/7 clinical use, the RS38H features a durable design, including a Corning® Gorilla® Glass 6" touchscreen with a bright 630-nit display for easy information access. The device is resilient enough to withstand accidental drops and tumbles from 1.5 meters.
