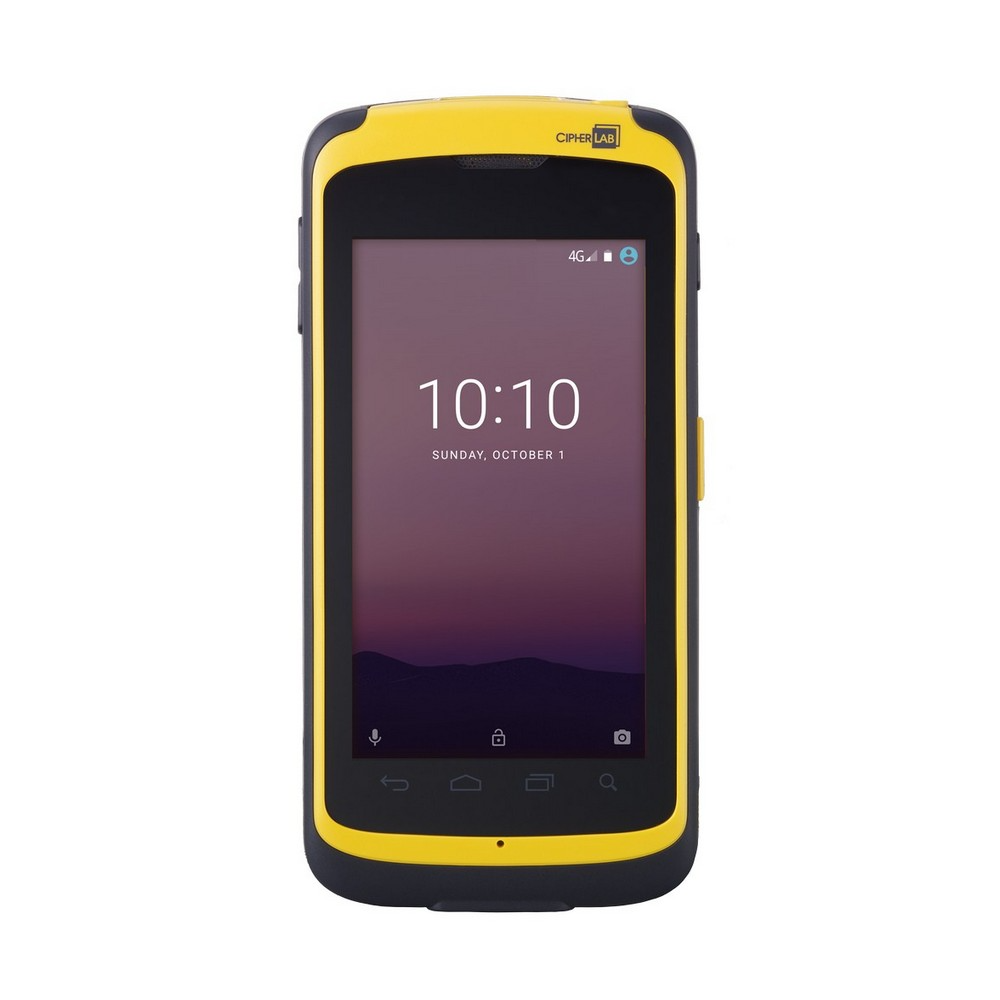

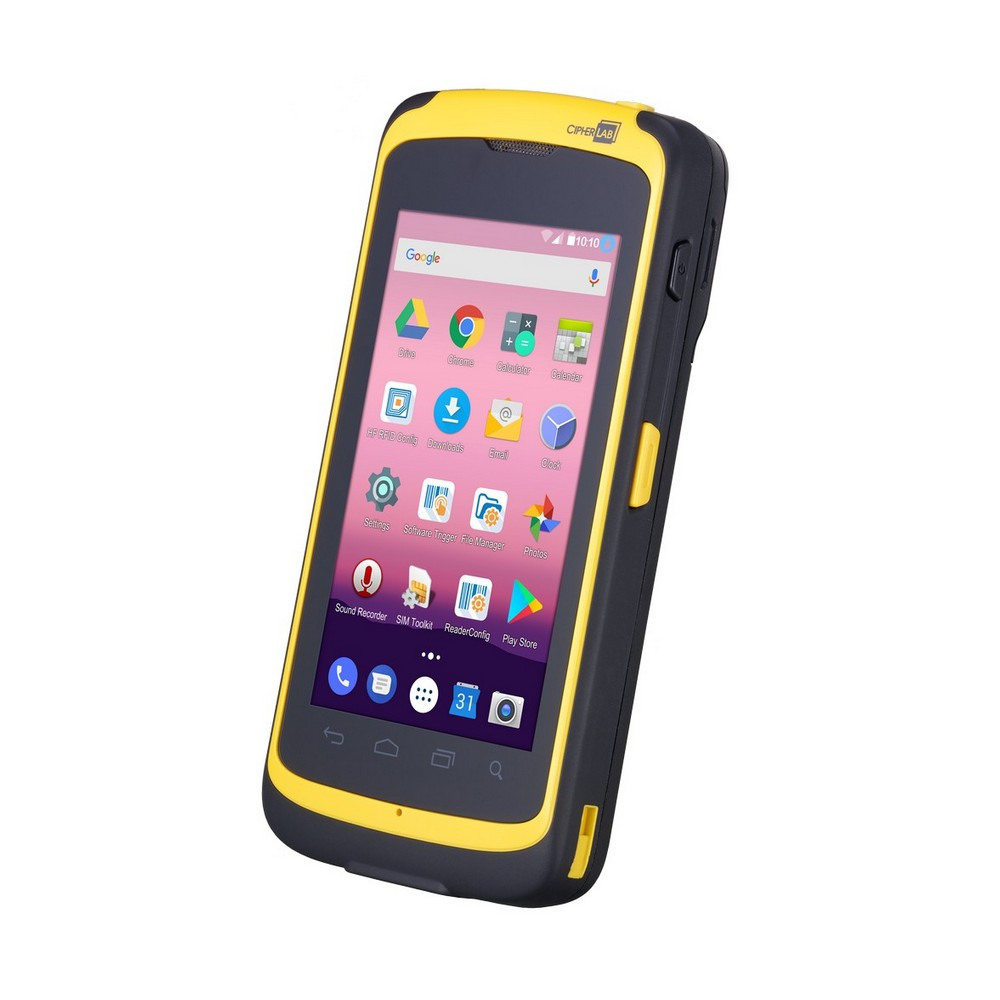

CipherLab RS51 Series Rugged Touch Mobile Computer
-
NG # 004906-HW-CIPERLAB-006
Manufactured by:
CipherLab's RS51 series is the device that perfectly blends commercial smartphone usability and enterprise functionality. The 4.7" display with bare/gloved finger and stylus inputs enhances user experience with operation convenience.
Specification
| Item | RS51 | |
|---|---|---|
| OS | Android 8.1 with GMS (Upgradeable to later Android Version)1 | Android 11.0 with GMS |
| CPU | Octa-core 1.8GHz | |
| Memory | 16GB Flash / 2GB RAM; On request: 32GB Flash / 4GB RAM, 64GB Flash / 4GB RAM | 64GB Flash / 4GB RAM |
| Expansion | Micro SD card slot with SDHC support (up to 32GB) and SDXC (up to 64GB) | |
| SIM / SAM | 2 SIM slots and 1 SAM slot | |
| Operating power | Replaceable and rechargeable 3.8V 4000 mAh Li-ion battery / 3.75V 5300 mAh Li-ion battery | Replaceable and rechargeable 3.75V 5300 mAh Li-ion battery |
| Working hours2 | Minimum 12 hours | Minimum 16 hours |
| Wireless communication | WWAN3: World All-Mode (2G) GSM: 850/900/1800/1900 (3G) CDMA: BC0, BC1, BC10 (3G) UMTS/HSPA/HSPA+: B1 (2100), B2 (1900), B4 (1700), B5 (850), B8 (900) (4G) FDD LTE: B1 (2100), B2 (1900), Band3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B17 (700), B20 (800), B25 (1900), B26 (850), B28 (700) (4G) TDD-LTE: Band38, Band39, Band40, Band41 WLAN: IEEE 802.11 a/b/g/n/ac/e/d/h/i/r/k/v/w WPAN: Bluetooth®Class I, V4.2, BLE, dual mode, V2.1 with Enhanced Data Rate (EDR) GPS: Built-in GPS, AGPS, GLONASS, BeiDou, Galileo | |
| Barcode scanning | 2D imager/Mid-range 2D imager | |
| RFID read / write | HF RFID 13.56 MHz frequency which supports ISO14443A, ISO14443B, ISO15693, Felica Support NFC (Peer-to-Peer, Card Reader, Card Emulation) | |
| Camera | Autofocus 13 megapixels (F2.0) with user-controllable flash | |
| Display | 4.7'' HD 720 (W) x 1280 (H); capacitive touch supports bare/wet/gloved finger and stylus inputs | |
| Size | 162 x 80 x 26 mm | |
| Weight | 330 g / 365 g | 365 g |
| Impact resistance | 1.8 m (6 ft.) multiple drops onto concrete, 6 drops on each side; 1000 tumbles at 1m; IP65/ IP67 | |
Description
Streamlines data capture with simply one device. It supports various data collection of 1D/2D barcodes, RFID, and NFC applications. On top of that, RS51 is built with the most reliable Wi-Fi and 4G/LTE connections for constant backend system data transmission and real-time communication. Additionally, accessories are backward compatible with RS50 series which provides a lower overall Total Cost of Ownership (TCO) and maximize the device investment.
