Darveen 10.4ā³ SPC-9100 IP66 Stainless Steel Panel PC with IntelĀ® CeleronĀ® J6412 Processor
TF:
006537-HW-DARVEEN-037
Overview
The 10.4-inch SPC-9100 stainless steel panel PC, powered by IntelĀ® CeleronĀ® J6412 processor, is specifically designed for the food processing and pharmaceutical industries.
| Display | |
| Size | 10.4 inch |
| Touch Type | Projected capacitive multi touch 5-wire resistive touch |
| Transmitiance | 87% (capacitive) / 80% (resistive) |
| Control Interface | USB |
| Surface Hardness | ā„7H for capacitive; ā„3H for resistive |
| Resolution | 1024 x 768 |
| Luminance | 400 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 70 (left), 70(right), 60 (up), 70 (down) |
| LED Lifetime | 30,000 hrs |
| Color | 16.7 M |
| System | |
| CPU | IntelĀ® CeleronĀ® J6412 (2.0 GHz) processor |
| Memory | 1x SO-DIMM DDR4-3200MHz, up to 16GB |
| Storage | 1x 2.5ā³ SATA HDD/SSD (optional) 1x full length Mini PCIe for mSATA SSD |
| I/O Ports | |
| USB | 4x USB2.0 |
| Serial | 2x COM (Supports 2x RS232 or 1x RS232 and 1x RS485) |
| Ethernet | 2x GbE LAN |
| RF Communication | |
| Wi-Fi | Wi-Fi 802.11 a/b/g/n/ac (optional) |
| Bluetooth | BT4.0 (optional) |
| Power | |
| Button | Yes |
| DC Input | 9-36VDC |
| Power Consumption | 18 W |
| Power Mode | ATX |
| Operating System | |
| Windows | Windows 10, Windows 11 |
| Mechanical | |
| Dimensions (W x D x H) | 292 x 238.5 x 47 mm (11.5 x 9.39 x 1.85 inches) |
| Weight (N.W.) | 2.6 kg (5.73 lbs) |
| Mounting | VESA 100 |
| Material | Stainless steel SUS 304 or 316 (optional) |
| Environment | |
| Operating Temperature | -10ā to 50ā (14Ā°F to 122Ā°F) -20ā to 50Ā°C (-4ā to 140Ā°F)(with W.T. SSD/DRAM) |
| Storage Temperature | -40 to 80Ā°C (-40 to 176Ā°F) |
| Relative Humidity | 5% to 90%, non-condensing |
| IP Rating | IP66 compliant |

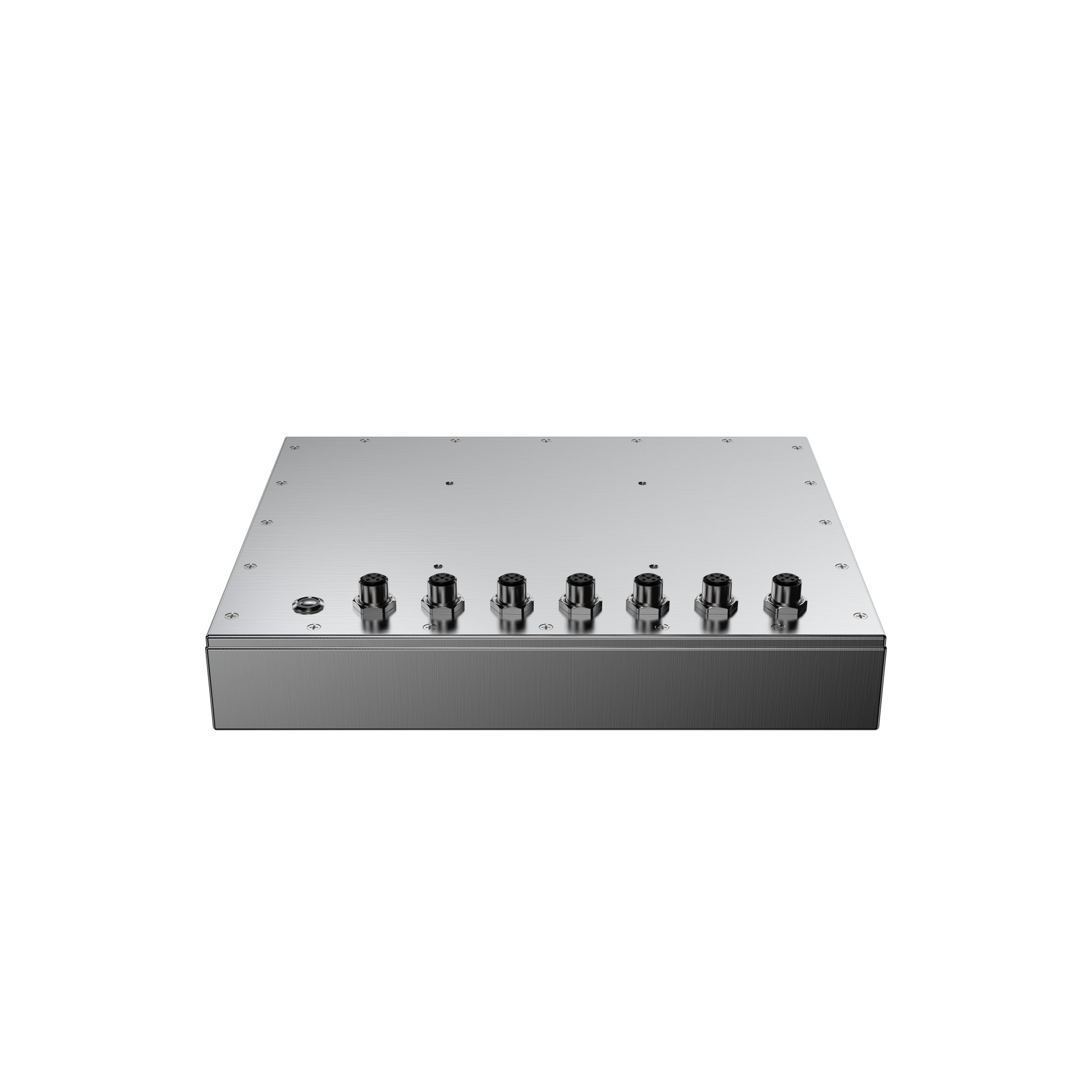

Its housing is constructed from SUS 304/316 stainless steel with a seamless design, making it easy to clean and highly durable. The SPC-9100 is compact and equipped with M12 I/O ports, meeting IP66 dust and waterproof standards, making it ideal for dusty, humid, or harsh environments.
