Darveen 13.3ā³ MPC-1133 Medical Panel PC with IntelĀ® CeleronĀ® J6412 or 8th/10th Gen IntelĀ® Coreā¢ i5 Processor
TF:
006542-HW-DARVEEN-042
Overview
The MPC-1133 is a medical all-in-one machine with a lightweight body and white appearance, featuring an isolated power design ideal for medical application environments.
| Display | |||
| Size | 13.3 inch | ||
| Touch Type | projected capacitive multi touch (optional) | ||
| Transmitiance | 87% (capacitiveļ¼ | ||
| Control Interface | USB | ||
| Surface Hardness | ā„7H AG AF | ||
| Resolution | 1920 x 1080 | ||
| Luminance | 300 nits | ||
| Contrast Ratio | 1000:1 | ||
| View Angles | 85 (left), 85 (right), 85 (up), 85 (down) | ||
| LED Lifetime | 30,000 hrs | ||
| Color | 16.7 M | ||
| System | |||
| CPU | IntelĀ® CeleronĀ® ProcessorJ6412 (2.0 GHz) Quad corequad threaded processor | IntelĀ® Coreā¢ i5-8260U(1.6 GHz) quad-coreeight-thread processor | IintelĀ® Coreā¢ i5-10210U(1.6 GHz) quad-coreeight-thread processor |
| Memory | 1x SO-DIMM DDR4-2666MHz, up to 16GB | 1x DDR4 2666 SO-DIMM(up to 32GB) | 1x DDR4 2666 SO-DIMM(up to 32GB) |
| Storage | 1x 2.5ā³ SATA HDD/SSD (optional) 1x full length Mini PCIe for mSATA SSD | ||

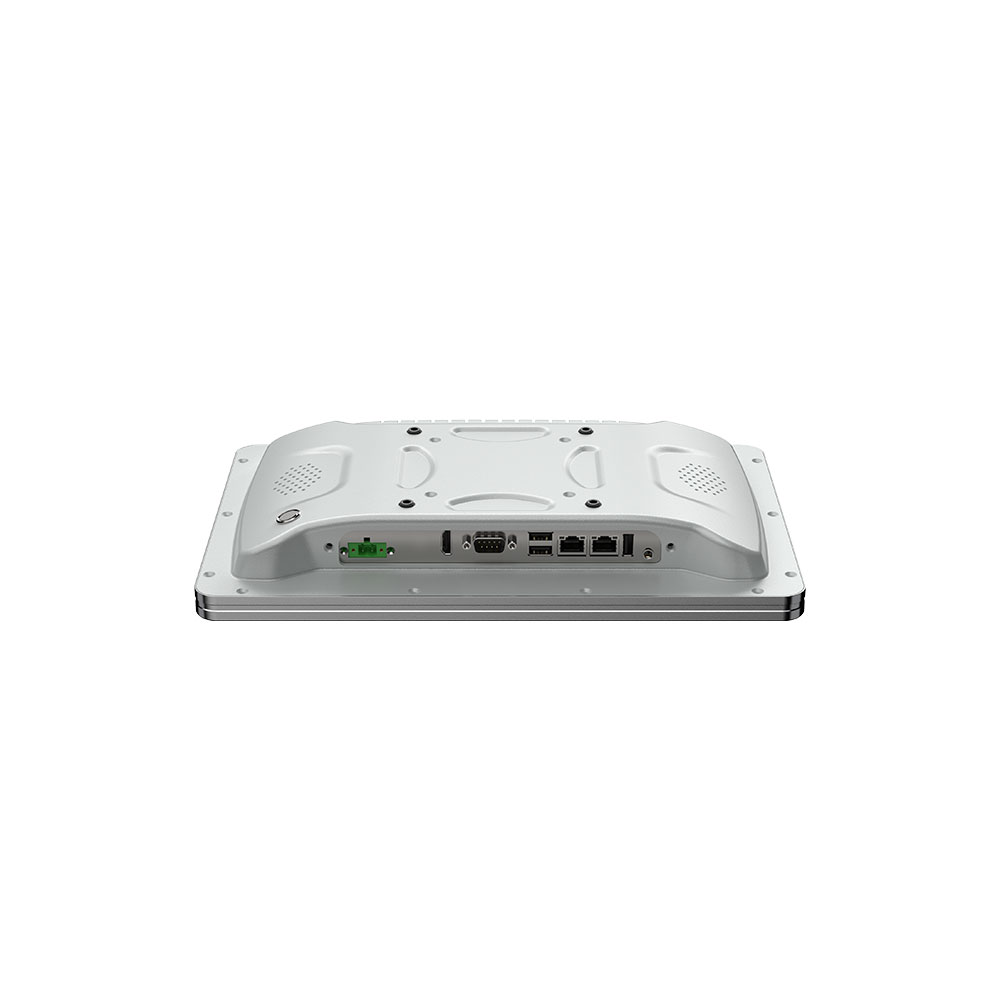

| I/O Ports | |||
| USB | 1x USB 3.0, 2x USB 2.0 | ||
| Serial | 1x COM | ||
| Ethernet | 2x GbE LAN | ||
| Display | 1x HDMI | ||
| Antenna | 2x built-in antenna | ||
| Expansion Slot | |||
| Mini PCIe | 1x full length Mini PCIe for Wi-Fi 1x full length Mini PCIe for mSATA | ||
| RF Communication | |||
| Wi-Fi | Mini PCIe expansion (optional) | ||
| Cellular | Mini PCIe expansion (optional) | ||
| Bluetooth | Mini PCIe expansion (optional) | ||
| Audio | |||
| Audio | 1x line out | ||
| Speaker | 2Ī©5W speaker | ||
| Power | |||
| Button | Yes | ||
| DC Input | 12VDC, 9 to 36VDC (optional) | ||
| Power Connector | 2-pin phoenix terminal | ||
| Power Consumption | 19 W | 25 W | 25 W |
| Power Adaptor | AC-DC, 12V@5A, 60W | ||
| Operating System | |||
| Windows | Windows 10/11 | ||
| Mechanical | |||
| Dimensions (W x D x H) | 322.4 x 200.4 x 47 mm (12.7 x 7.9 x 1.8 inches) | ||
| Weight (N.W.) | 1.6 kg (3.5 lbs) | ||

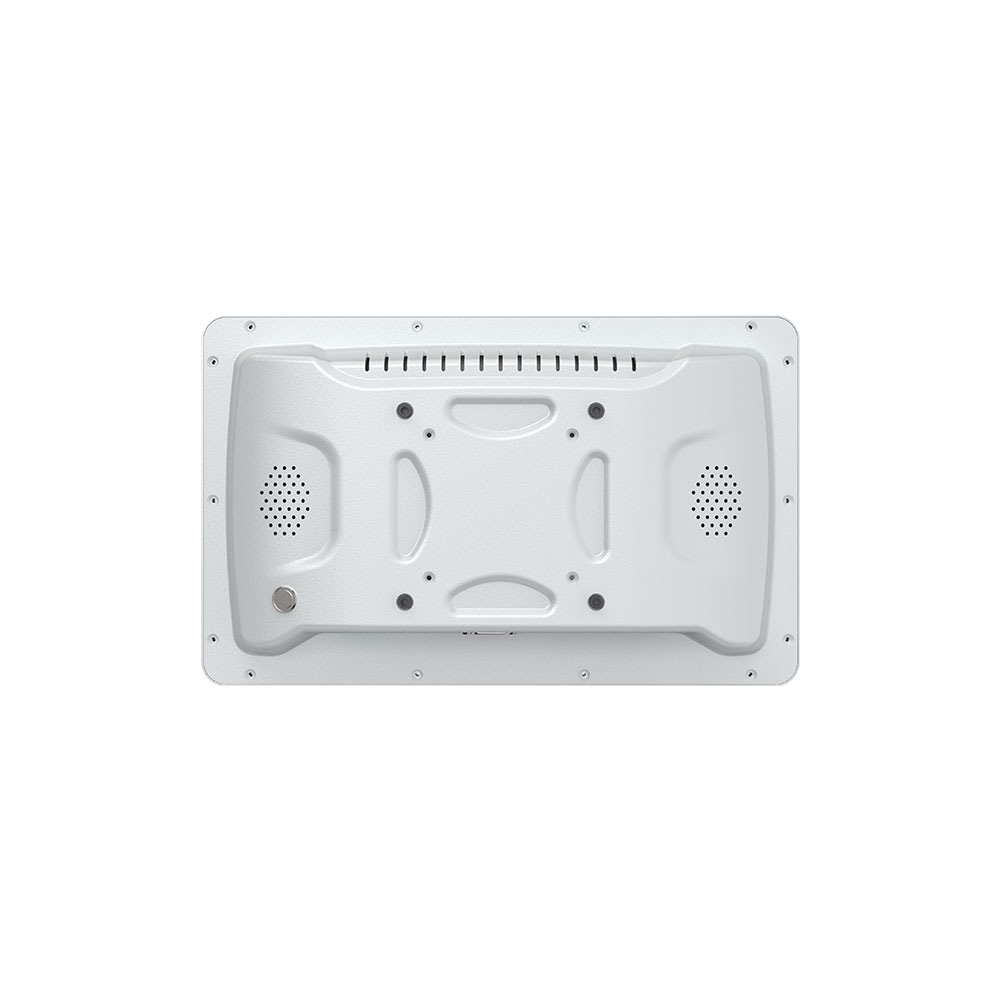

| Mounting | wall mount bracket VESA 100 | ||
| Material | Aluminum front bezel & PC/ABS rear cover | ||
| Environment | |||
| Operating Temperature | 0 to 50Ā°C(32 to 122Ā°F) | ||
| Storage Temperature | -10 to 60Ā°C (-14 to 140Ā°F) | ||
| Relative Humidity | 10% to 95% @ 40Ā°C (104Ā°F), non-condensing | ||
| Vibration | 5-500Hz, 0.026 GĀ²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | ||
| IP Rating | IP65 compliant (for front panel) | ||
| Certification | |||
| EMC | CE, FCC,EN60601-1 | ||
| Packing List | |||
| Packing | 1x MPC-1133 1x warranty card | ||
Equipped with the IntelĀ® CeleronĀ® J6412 or 8th/10th generation IntelĀ® Coreā¢ i5 processor, it meets the requirements for medical applications. This device complies with the EN60601-1 medical safety standards for electrical devices and boasts a capacitive multi-point touch screen design, making it convenient for medical staff to operate.
