Darveen 18.5ā³ SPC-9185 IP69K Stainless Steel Panel PC with 12th Gen IntelĀ® Coreā¢ or IntelĀ® CeleronĀ® Processor
TF:
006540-HW-DARVEEN-040
Overview
The 18.5-inch SPC-9185 stainless steel panel PC, powered by 12th Gen IntelĀ® Coreā¢ i5-1235U or CeleronĀ® J6412 processors, is specifically designed for the food processing and pharmaceutical industries.
| Display | ||
| Size | 18.5 inch | |
| Touch Type | Projected capacitive multi touch 5-wire resistive touch | |
| Transmitiance | 87% (capacitive) / 80% (resistive) | |
| Control Interface | USB | |
| Surface Hardness | ā„7H for capacitive; ā„3H for resistive | |
| Resolution | 1920 x 1080 | |
| Luminance | 300 nits | |
| Contrast Ratio | 1000:1 | |
| View Angles | 89 (left), 89 (right), 89 (up), 89 (down) | |
| LED Lifetime | 30,000 hrs | |
| Color | 16.7 M | |
| System | ||
| CPU | IntelĀ® CeleronĀ® J6412 (2.0 GHz) processor | Intel Ā® Coreā¢ i5-1235U (1.3 GHz) processor |
| Memory | 1x SO-DIMM DDR4-3200MHz, up to 16GB | 2x SO-DIMM DDR4-3200MHz, up to 64GB |
| Storage | 1x 2.5ā³ SATA HDD/SSD (optional) 1x full length Mini PCIe for mSATA SSD | 1x 2.5ā³ SATA HDD/SSD (optional) 1xM.2 for 2280 NVME SSD |
| I/O Ports | ||
| USB | 4x USB2.0 | |
| Serial | 2x COM (Supports 2x RS232 or 1x RS232 and 1x RS485) | |
| Ethernet | 2x GbE LAN | |
| RF Communication | ||
| Wi-Fi | Wi-Fi 802.11 a/b/g/n/ac (optional) | |
| Bluetooth | BT4.0 (optional) | |
| Power | ||
| Button | Yes | |
| DC Input | 9-36VDC | |
| Power Consumption | 24 W | 29 W |
| Power Mode | ATX | |
| Operating System | ||
| Windows | Windows 10, Windows 11 | |
| Mechanical | ||
| Dimensions (W x D x H) | 472.3 x 293 x 55 mm (18.6 x 11.5 x 2.2 inches) | |
| Weight (N.W.) | 7.3 kg (16.1 lbs) | |
| Mounting | VESA 100 | |
| Material | Stainless steel SUS 304 or 316 (optional) | |
| Environment | ||
| Operating Temperature | -10ā to 50ā (14Ā°F to 122Ā°F) -20ā to 60Ā°C (-4ā to 140Ā°F)(with W.T. SSD/DRAM) | |
| Storage Temperature | -40 to 80Ā°C (-40 to 176Ā°F) | |
| Relative Humidity | 5% to 90%, non-condensing | |
| IP Rating | IP69K certified | |

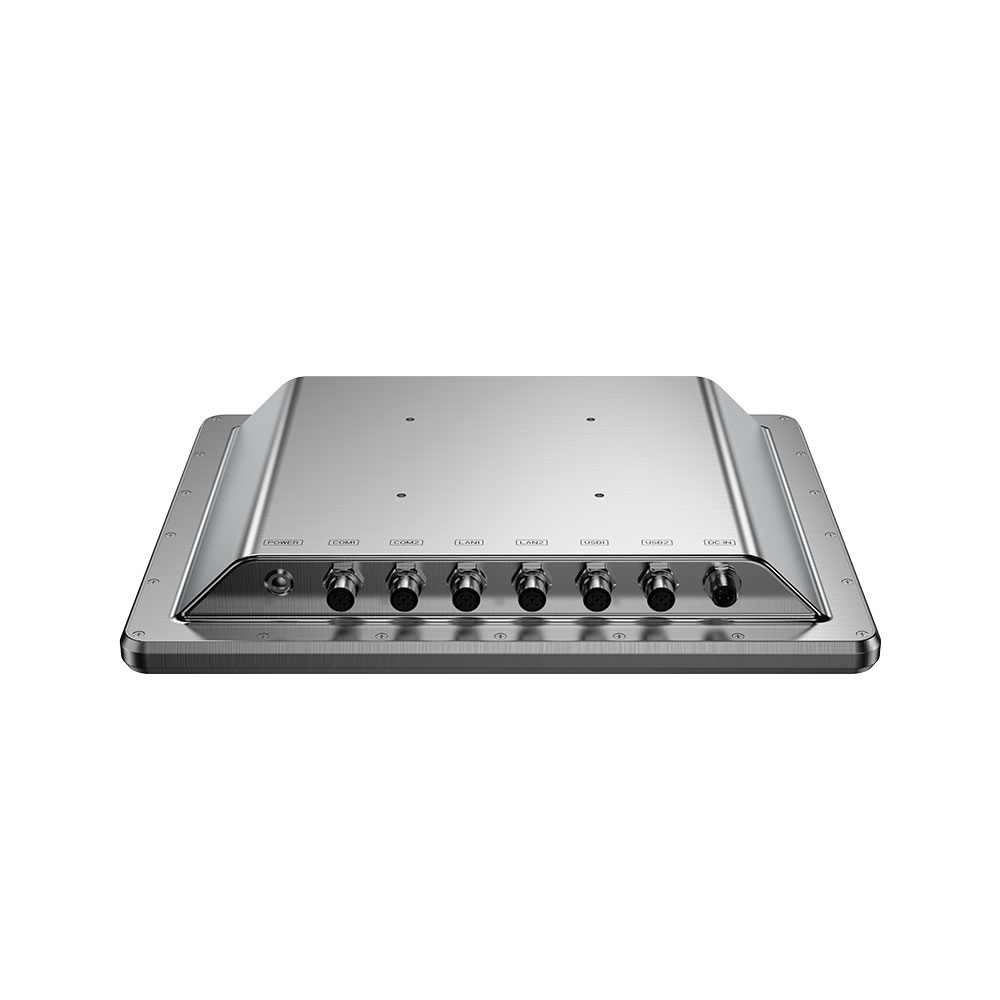

Its housing is constructed from SUS 304/316 stainless steel with a seamless design, making it easy to clean and highly durable. The narrow bezel provides a modern, sleek appearance. The SPC-9185 is equipped with M12 I/O ports, meeting IP69K dust and waterproof standards, making it ideal for dusty, humid, or harsh environments.
