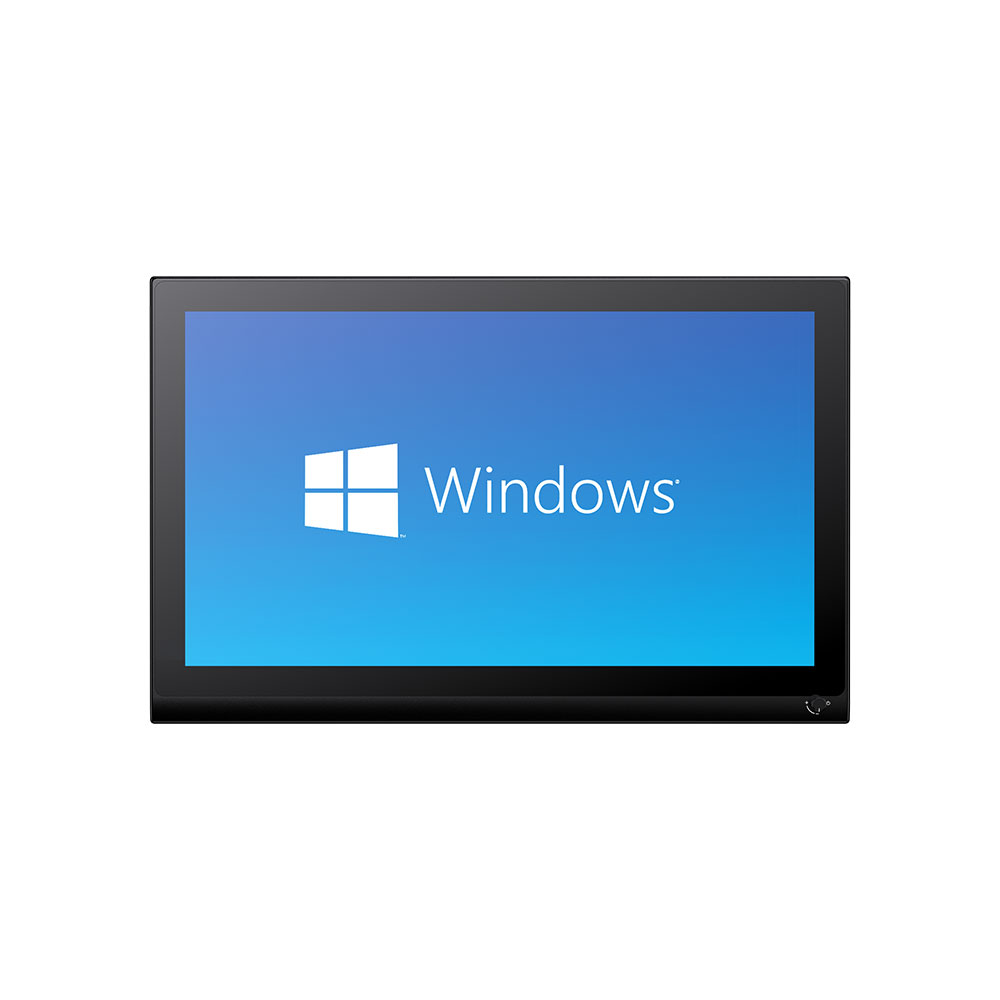

Darveen 27″ MP-270 Marine Panel PC with 10th Gen Intel® Core™ i Processor
006529-HW-DARVEEN-029
Overview
MP-270 is a fanless 27-inch marine panel PC, powered by 10th generation Intel ®Core ™i5/i7 Processor, used for high-performance computing.
| Display | ||
| Size | 27 inch | |
| Touch Type | Multi touch capacitive screen | |
| Display Type | TFT-LCD | |
| Transmitiance | 87% (capacitive) | |
| Control Interface | USB | |
| Surface Hardness | ≥7H | |
| Resolution | 1920 x 1080 | |
| Luminance | 300 nits | |
| Contrast Ratio | 1000:1 | |
| View Angles | 89 (left), 89 (right), 89 (up), 89 (down) | |
| LED Lifetime | 40,000 hrs | |
| Color | 16.7 M | |
| System | ||
| CPU | Intel® Core™ i5-10210U (1.6 GHz) quad-core eight-thread processor | Intel® Core™ i7-10710U (1.1 GHz) Six Core Twelve Thread Processor |
| Memory | 2x DDR4 2666 SO-DIMM (up to 64GB) | 2x DDR4 2666 SO-DIMM (up to 64GB) |
| Storage | 1x 2.5″ SATA HDD/SSD (optional) 1x full length Mini PCIe for mSATA SSD | |

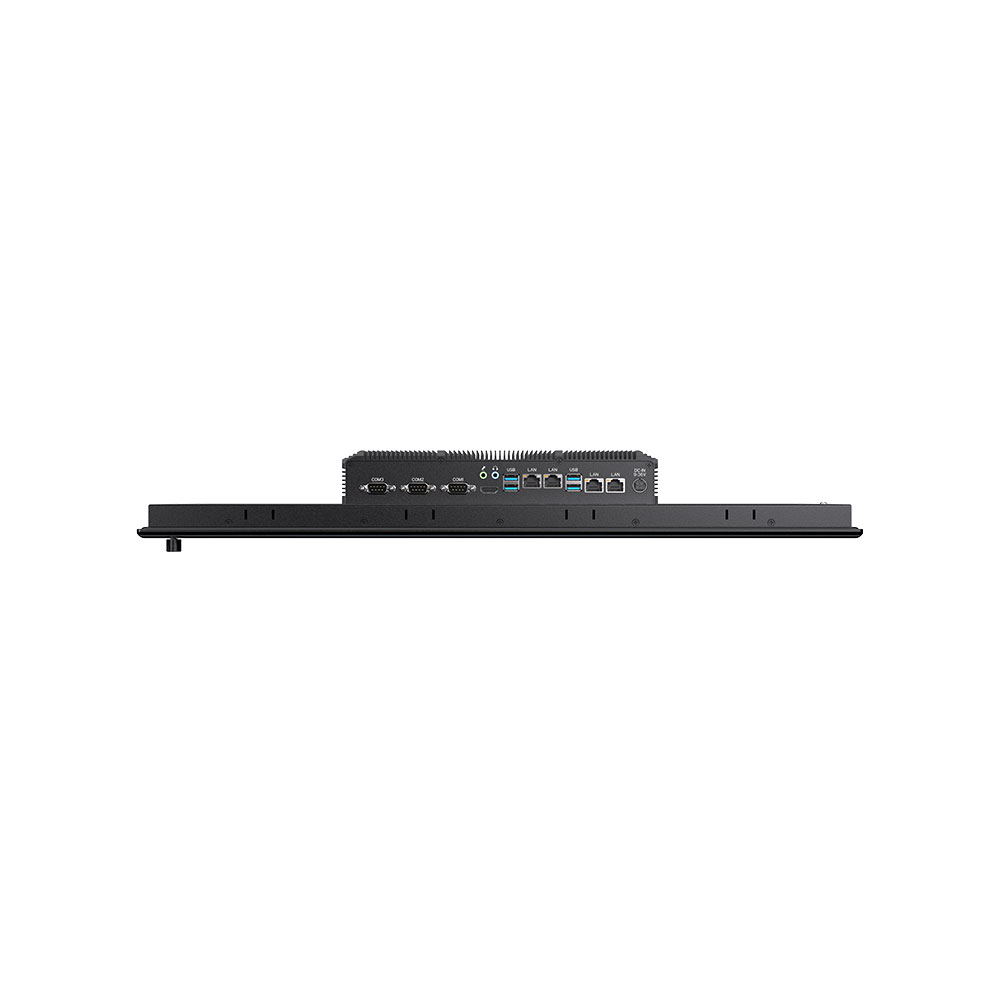

| I/O Ports | ||
| USB | 4x USB3.0 | |
| Serial | 3x COM (COM1 supports RS-232, COM2 and COM3 support RS-232/422/485) | |
| Ethernet | 4x GbE LAN | |
| Display | 1x HDMI | |
| Ethernet | 2x SMA antenna holes | |
| Expansion Slot | ||
| Mini PCIe | 1x full length Mini PCIe for Wi-Fi 1x full length Mini PCIe for mSATA | |
| Audio | ||
| Audio | Mic in, line out | |
| Speaker | 2Ω5W speaker(optional) | |
| RF Communication | ||
| Wi-Fi | Mini PCIe expansion (optional) | |
| Cellular | Mini PCIe expansion (optional) | |
| Bluetooth | Mini PCIe expansion (optional) | |
| Power | ||
| Button | Yes | |
| Remote Power On/Off | 1x Remote switch connector | |
| DC Input | 9-36VDC | |
| Power Connector | M12 | |
| Power Consumption | 29 W | 32 W |
| Ignition On/Off | 1x AC loss | |
| Power Adaptor | AC-DC, 12V@7.5A, 90W | |
| Operating System | ||
| Windows | Windows 10, Windows 11 | |
| Mechanical | ||
| Dimensions (W x D x H) | 651.8 x 411 x 74.7 mm (25.7 x 16.1 x 2.9 inches) | |
| Weight (N.W.) | 9.8 kg (22 lbs) | |
| Mounting | Panel mount, wall mount bracket VESA 100 | |
| Material | Aluminum alloy panel, all-metal chassis | |
| Environment | ||
| Operating Temperature | -10 to 50°C (14 to 122°F) | |
| Storage Temperature | -20 to 80°C (-4 to 176°F) | |
| Relative Humidity | 5% to 90%, non-condensing | |
| Vibration | 5 to 500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| IP Rating | IP65 compliant | |
It adopts a modular design, which facilitates CPU board or I/O board upgrades and ensures stable system structure and reliable industrial performance. Adopting a large-sized and high specification display screen, a multi-point touch capacitive screen, and optional AG AF treatment on the glass surface, combined with the front panel brightness adjustment knob, it is more suitable for ship applications. The aluminum alloy front panel, metal body, and excellent heat dissipation performance ensure that the electromagnetic compatibility design of the entire machine complies with the ship’s electrical specifications
