Darveen APC-8210 21.5″ Android Panel PC with Rockchip RK3588/RK3568 Processor
TF:
006536-HW-DARVEEN-036
Overview
Darveen APC-8210 is a 21.5-inch ARM-based Android Panel PC designed for industrial applications that demand high performance and multi-tasking capabilities.
| Display | ||
| Size | 21.5inch | |
| Touch Type | Projected capacitive multi touch | |
| Transmitiance | 87% (capacitive) | |
| Control Interface | USB | |
| Surface Hardness | ≥7H | |
| Resolution | 1920 x 1080 | |
| Luminance | 500 nits | |
| Contrast Ratio | 1000:1 | |
| View Angles | 85 (left), 85 (right), 85 (up), 85 (down) | |
| LED Lifetime | 30,000 hrs | |
| Color | 16.7 M | |
| System | ||
| CPU | Rockchip RK3568 Quad-core Cortex-A55 up to 2.0GHz | RK3588 quad core Cortex-A76, 2.4GHz and quad core Cortex-A55, 1.7GHz processors, NPU 6 TOPS |
| Chipset | ARM Mali-G52 GPU | ARM Mali-G610 MP4 |
| Memory | DDR4 4G (onboard) | DDR4 8GB (onboard) |
| Storage | EMMC 32G (onboard) | EMMC 64G (onboard) |
| I/O Ports | ||

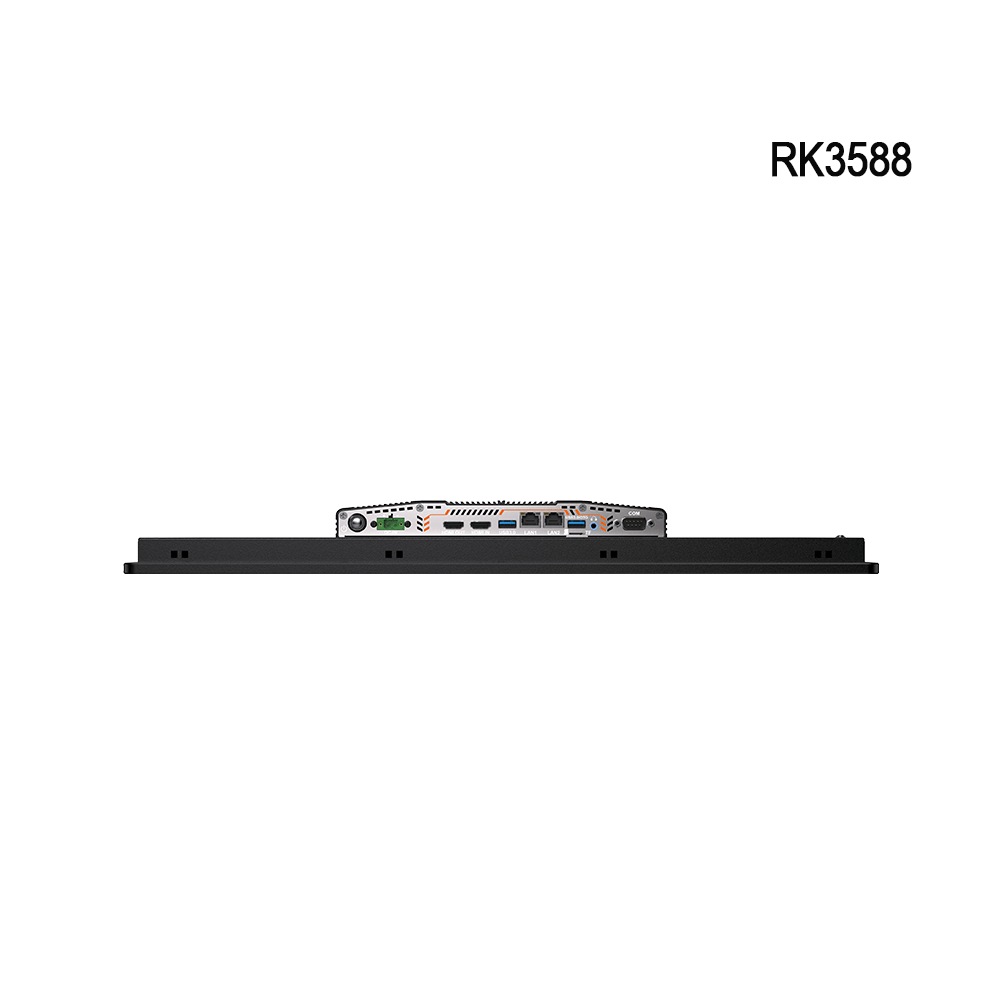

| USB | 1x USB 3.0(support OTG) 4xUSB 2.0 | 2x USB 3.0 (One supports OTG) 2x USB 2.0 (Optional) |
| Serial | 1x COM (COM1 supports RS-232) | 1x COM (COM1 supports RS-232) |
| Ethernet | 1x GbE LAN | 2x GbE LAN |
| Display | 1x HDMI out | 1x HDMI out,1x HDMI in |
| TF Card Slot | / | 1x TF Card Slot |
| Antenna | 2x SMA antenna holes | |
| RF Communication | ||
| Wi-Fi | onboard Wi-Fi 5 | onboard Wi-Fi 6 |
| Cellular | 4G/5G (Optional) | |
| Bluetooth | V4.1 | V5.3 |
| Audio | ||
| Audio | Mic in, line out | |
| Speaker | 2x speaker | |
| Power | ||
| Button | Yes | |
| DC Input | 12V | |
| Power Consumption | 20W | |
| Power Adaptor | AC-DC, 12V@5A, 60W | |
| Operating System | ||
| Linux | Ubuntu | |
| Android | Android 11 | Android 13 |
| Mechanical | ||
| Dimensions (W x D x H) | 528.4 x 326.2 x 53 mm (20.8 x 12.84 x 2.1 inches) | |
| Weight (N.W.) | 7.1 kg (15.65 lbs) | |
| Mounting | Panel mount, wall mount bracket VESA 100 | |
| Material | Aluminum alloy panel, all-metal chassis | |
| Environment | ||
| Operating Temperature | -10 to 50℃ (14 to 122°F) | |
| Storage Temperature | -20 to 60℃ (-4 to 140°F) | |
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing | |
| Vibration | 5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| IP Rating | IP65 compliant front panel | |
| Certification | ||
| EMC | CE, FCC | |
| Packing List | ||
| Packing | 1x APC-8210 12x panel mounting buckles 1x warranty card | |
| Ordering Information | ||
| Part Number | Description | |
| APC-8210-RK3568 | 21.5″ LCD, P-CAP Touch, Rockchip RK3568, 4G+32G, WiFi, DC 12V input, Phoenix 2P TB | |
| APC-8210-RK3588 | 21.5″ LCD, P-CAP Touch, Rockchip RK3588, 8G+64G, WiFi6, DC 12V input, Phoenix 2P TB | |
Powerful Rockchip RK3588 octa-core processor, it supports 8K video codec and delivers exceptional computing power for use cases such as manufacturing control systems, multimedia presentations,image recognition, and HMI optimization. The APC-8210 offers a rich set of I/O interfaces for seamless peripheral connectivity. It runs on Android 13 and is also available with Ubuntu Linux. For applications with lower power requirements, a configuration with the Rockchip RK3568 processor is also offered.
