Darveen DPC-7210 21.5″ Industrial Touch Panel PC with 10th Gen Intel® Core™ i Processor
TF:
006532-HW-DARVEEN-032
Overview
The DPC-7210 is a fanless 21.5″ industrial panel PC that supports 10th generation Intel® Core™ i5/i7 processors for high performance computing.

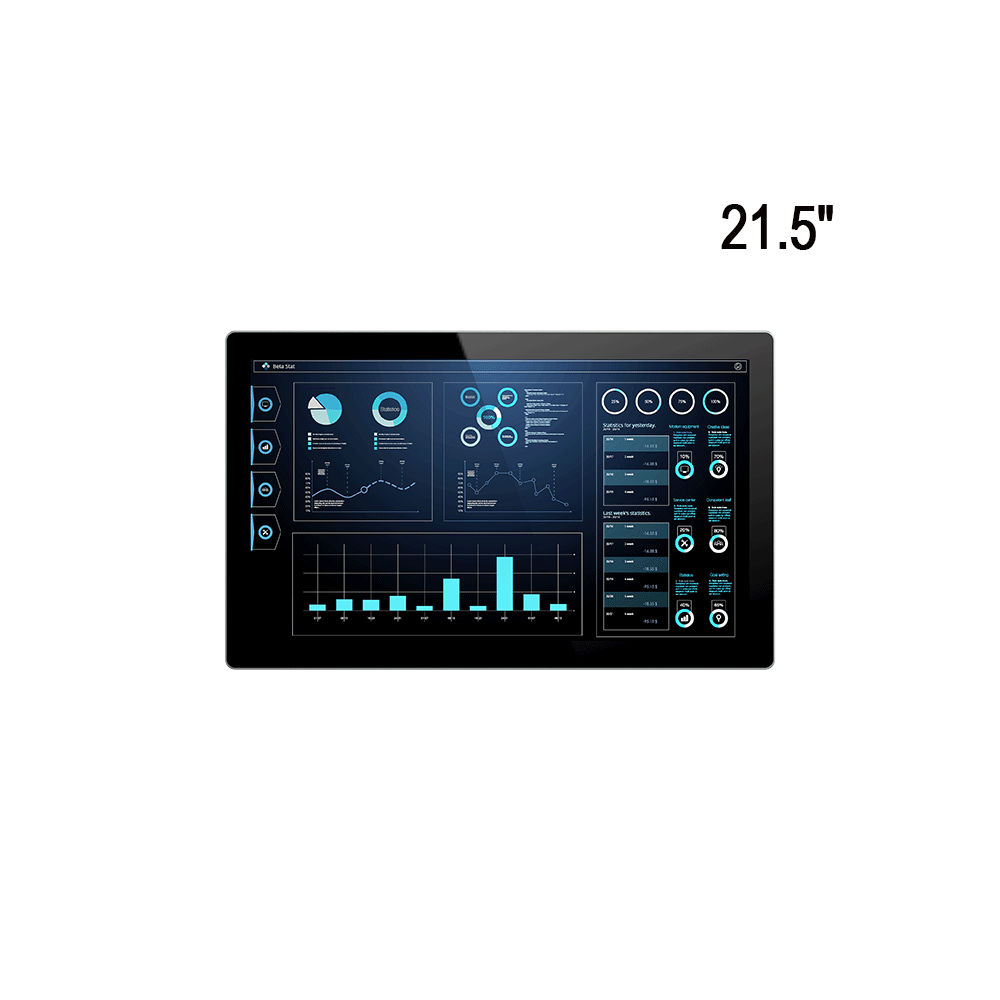

| Display | ||
| Size | 21.5 inch | |
| Touch Type | 5-wire resistive touch/Projected capacitive multi touch (optional) | |
| Transmitiance | 87% (capacitive) / 80% (resistive) | |
| Control Interface | USB | |
| Surface Hardness | ≥7H/≥3H | |
| Resolution | 1920 x 1080 | |
| Luminance | 250 nits | |
| Contrast Ratio | 1000:1 | |
| View Angles | 89 (left), 89 (right), 89 (up), 89 (down) | |
| LED Lifetime | 40,000 hrs | |
| Color | 16.7 M | |
| System | ||
| CPU | Intel® Core™ i5-10210U(1.6 GHz) quad-core eight-thread processor | Intel Core™ i7-10710U (1.1 GHz) Six Core Twelve Thread Processor |
| Memory | 2x DDR4 2666 SO-DIMM (up to 64GB) | 2x DDR4 2666 SO-DIMM (up to 64GB) |
| Storage | 1x 2.5″ SATA HDD/SSD (optional) 1x full length Mini PCIe for mSATA SSD | |

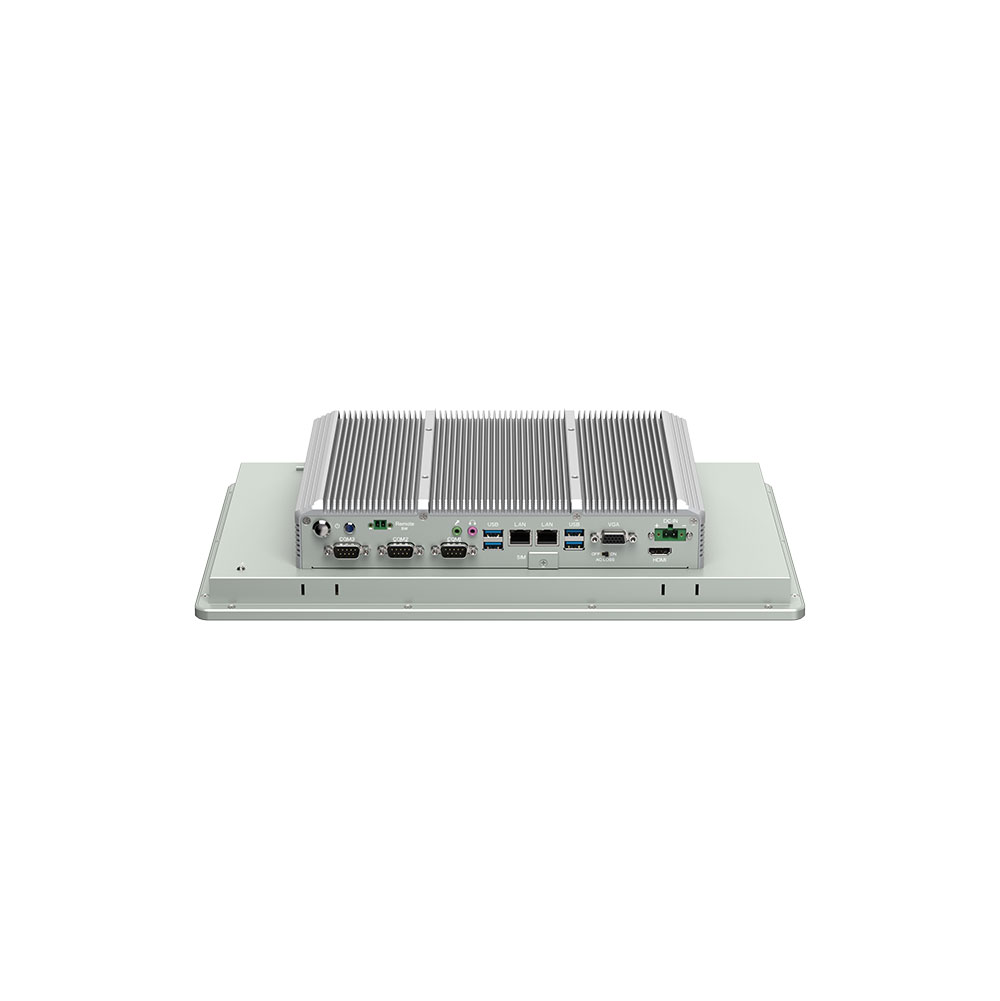

| I/O Ports | ||
| USB | 4x USB3.0 | |
| Serial | 3x COM (COM1 supports RS-232, COM2 and COM3 support RS-232/422/485) | |
| Ethernet | 2x GbE LAN | |
| Display | 1x HDMI, 1x VGA | |
| SIM Card Slot | 1x SIM slot for 4G or 5G | |
| Antenna | 2x SMA antenna holes | |
| Expansion Slot | ||
| Mini PCIe | 1x full length Mini PCIe for Wi-Fi 1x full length Mini PCIe for mSATA | |
| M.2 | 1x M.2 3042 for 4G, 1x M.2 3052 for 5G | |
| RF Communication | ||
| Wi-Fi | Mini PCIe expansion (optional) | |
| Cellular | Mini PCIe expansion (optional) | |
| Bluetooth | Mini PCIe expansion (optional) | |
| Audio | ||
| Audio | Mic in, line out | |
| Speaker | 2Ω 5W speaker | |
| Power | ||
| Button | Yes | |
| Remote Power On/Of | 1x Remote switch connector | |
| DC Input | 9-36VDC optional | |
| Power Connector | M12 | |
| Power Consumption | 29 W | 32 W |
| Power Adaptor | AC-DC, 12V@7A, 84W | |
| Operating System | ||
| Windows | Windows 10, Windows 11 | |
| Mechanical | ||
| Dimensions (W x D x H) | 528 x 326 x 73 mm (20.7 x 12.8 x 2.9 inches) | |
| Weight (N.W.) | 7.9 kg (17.4 lbs) | |
| Mounting | Panel mount, wall mount bracket VESA 100 | |
| Material | Aluminum alloy panel, all-metal chassis | |
| Environment | ||
| Operating Temperature | -10 to 50℃ (14 to 122°F) | |
| Storage Temperature | -20 to 60°C (-4 to 140°F) | |
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing | |
| Vibration | 5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| IP Rating | IP65 compliant (for front panel) | |
| Certification | ||
| EMC | CE, FCC | |
It features a modular design to allow easy CPU board or I/O board upgrades and ensures a stable system structure and reliable industrial performance. For wireless connectivity, the DPC-7210 supports Wi-Fi 6 and 4G/5G. With a choice of 4:3 and 16:9 aspect ratios and optional resistive or capacitive touchscreen, the DPC-7210 provides display versatility. The aluminum alloy IP65-rated front panel, metal body, and excellent heat dissipation offer longevity, functionality, and rust resistance for industrial applications.
