Darveen MC-346 Marine Computer with 13th Gen IntelĀ® CeleronĀ®/Coreā¢ i3/i5/i7 Processor
TF:
006526-HW-DARVEEN-026
| System | |
| CPU | Intel CeleronĀ® -7305E/Coreā¢ i3-1315UE Intel Coreā¢ i5-1345UE/Intel Coreā¢ i7-1365UE processor |
| Memory | 2x SO-DIMM DDR5-4800/5200 MT/s (up to 64GB) |
| Storage | 1x M.2 Key M 2242/2280, Nvme PCIe x4 SSD 2x removable 2.5ā³ SSD drive bays, RAID 0,1 Hot-swap |
| GPU | IntelĀ® UHD Graphics |
| TPM | Built-in onboard hardware TPM2.0-NPCT760AABYX |
| Watchdog Timer | Software programmable supports 256 levels system reset |
| I/O Ports | |
| USB Port | 2x USB 2.0, 4x USB3.0 |
| Serial Port | 4x NMEA0183 (RS-422/485), 2x DB9(RS-232/422/485) |
| Ethernet | 4x 2.5GbE LAN |
| Display Port | 2x DP++ (Up to 4K each) |
| SIM Card Slot | 1x SIM |
| GPIO | 8x GPIO with isolation |
| CAN Bus | 2x CAN2.0B (optional) |
| Expansion Slot | |
| Mini-PCIe | 1x Mini PCIe slot |
| M.2 | 1x M.2 Key M 2242/2280 Nvme, 1x M.2 E-Key 2230, 1x M.2 B-Key 3052 |
| Antenna Hole | 5x SMA-type |
| RF Communication | |
| Wi-Fi | 1x M.2 2230 E-Key (PCIe AxMac Wi-Fi 6) |
| Cellular | 1x M.2 3052 B-Key (USB3.0) |
| Bluetooth | 1x M.2 2230 E-Key (PCIe AxMac Wi-Fi 6) |
| GNSS | 1x Mini PCIe (USB2.0) |
| Audio | |
| Audio | Mic in, line out |
| Power | |
| Remote Power On/Off | 2-Pin phoenix terminal (3.81 mm) |
| DC Input | 9 to 36V DC-IN (2-Pin Phoenix terminal 5.0 mm) |
| Power Mode | AT/ATX |
| Operating System | |
| Windows | Windows 10, Windows 11 |
| Linux | Ubuntu 22.04 |
| Mechanical | |
| Dimensions (WxDxH) | 216 x 164 x 82mm (8.5 x 6.46 x 3.23 inches) |
| Weight (N.W.) | 3.5kg (7.72 lbs) |
| Mounting | Wall-mount |
| Material | Aluminum alloy |
| Environment | |
| Operating Temperature | -20 to 60Ā°C ( -4 to 140Ā°F) with SSD Airflow 0.7m/s |
| Storage Temperature | -40 to 85Ā°C ( -40 to 185Ā°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Certification | |
| EMC | CE, FCC, IEC 60945/61162-1/2, IACS E10(Pending) |

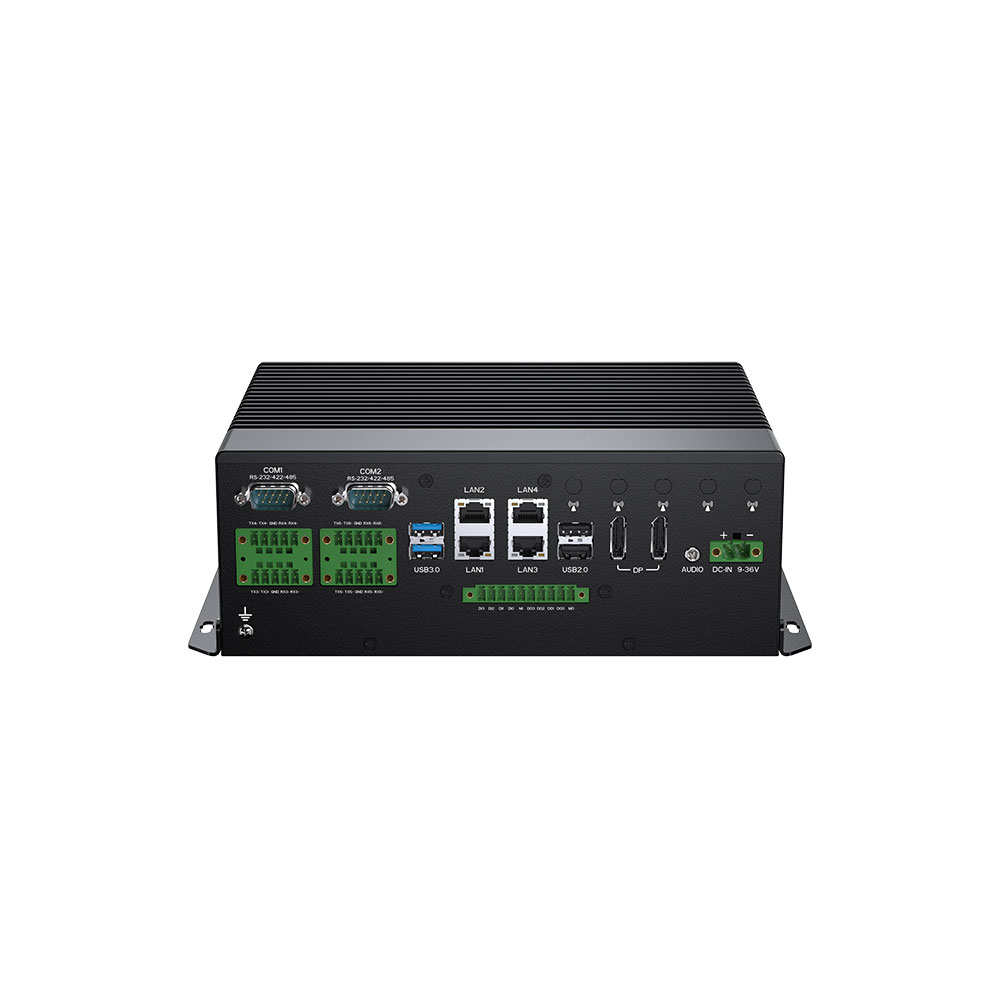

The MC-346 marine computer features a rugged aluminum enclosure and a fanless design. It is powered by the 13th Gen IntelĀ® CeleronĀ® /Coreā¢ i3/i5/i7 Processor and includes 4x NMEA 0183 (RS-422/485) ports, 8 isolated DIO, and 2x removable 2.5ā³ SSD drive bays. With 2x DP, 6xUSB, 4x LAN, and supports TPM 2.0, it offers optional Wi-Fi, Bluetooth, LTE/5G, GPS, and CAN2.0 capabilities. It is IEC 60945/61162-1/2 and IACS E10 certified(Pending).
