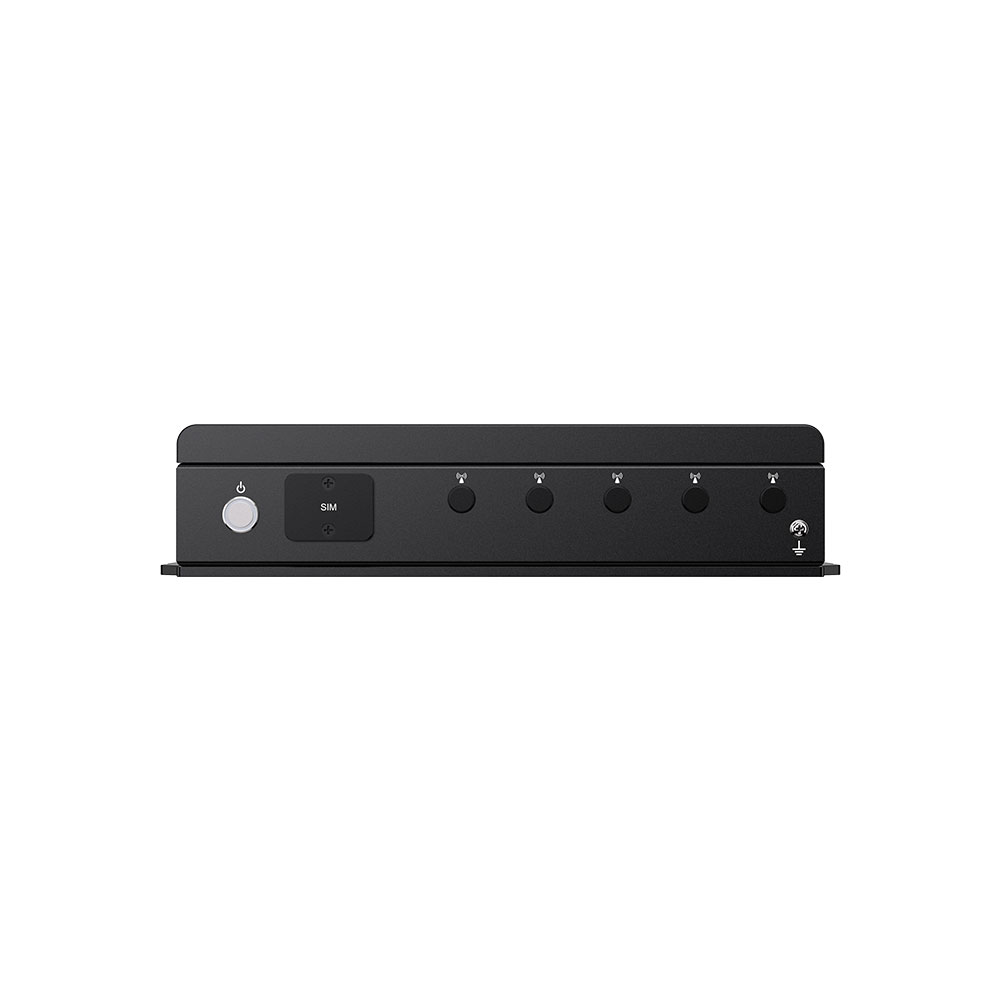

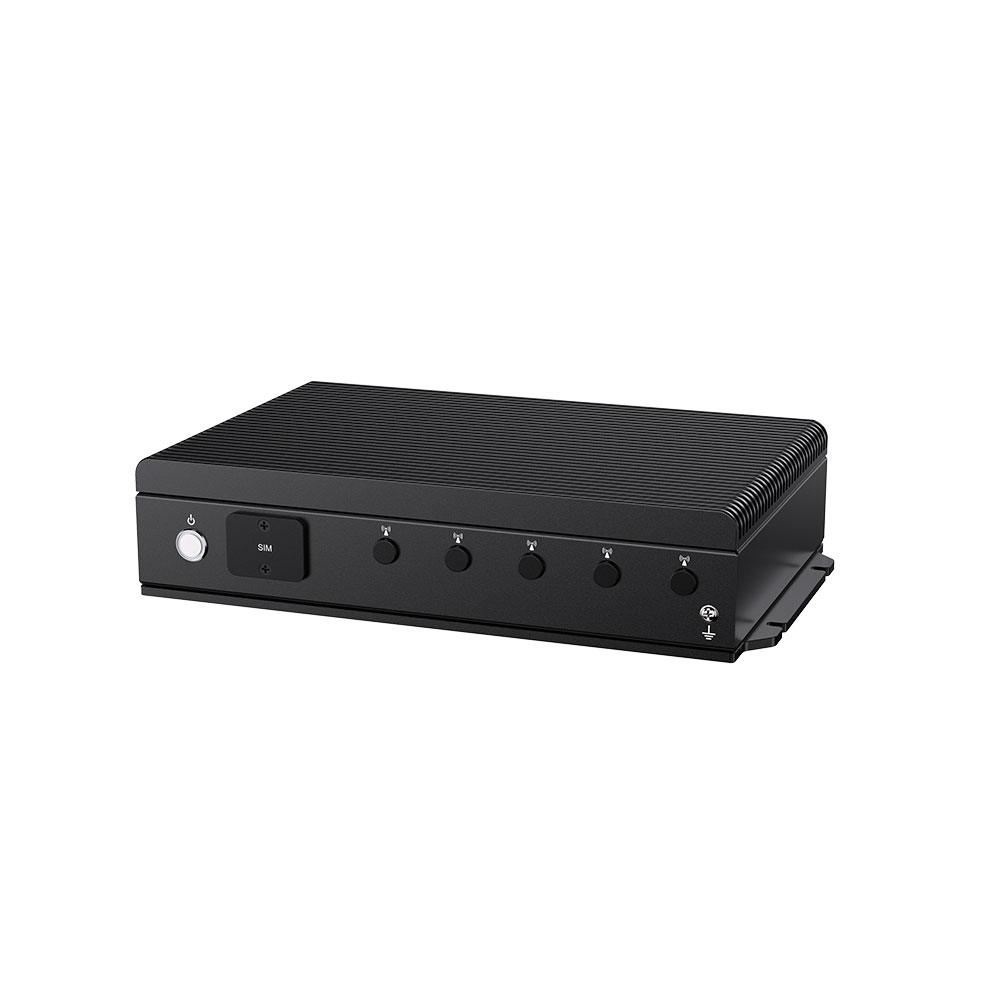

Darveen MVC-3100 Rugged In-Vehicle Computer with Intel® Elkhart Lake Celeron® J6412 Processor
TF:
006517-HW-DARVEEN-017
| System | |
| CPU | Intel® Elkhart Lake Celeron® J6412 processor |
| Memory | 1x DDR4 3200 MHz SO-DIMM up to 32GB |
| Storage | 1x M.2 2280 SATA |
| TPM | BIOS supports |
| Watchdog Timer | Software Programmable supports 256 levels system reset |
| I/O Ports | |
| USB Port | 2x USB 2.0 |
| Serial Port | 2x RS232/485 |
| Ethernet | 2 x GbE LAN |
| Display Port | 1x VGA |
| SIM Card Slot | 1x SIM card slot |
| DIO | 8x DIO with isolation |
| CAN Bus | 2 x CAN2.0B with isolation |
| Expansion Slot | |
| Mini-PCIe | 1x Mini PCIe slot (for 4G LTE/GPS), 1x Mini PCIe slot (for WiFi) |
| M.2 | 1x M.2 2280 slot (for SSD) |
| Antenna Hole | 5x SMA Holes |
| RF Communication | |
| Wi-Fi | Wi-Fi (optional) |
| Cellular | 4G (optional) |
| Bluetooth | BT (optional) |
| GNSS | GPS (optional) |
| Audio | |
| Audio | line out |
| Power | |
| Button | Power button |
| DC Input | 9 to 36VDC |
| Ignition ON/OFF | ACC (optional) |
| Power Mode | ATX/AT |
| Operating System | |
| Windows | Windows 10, Windows 11 |
| Linux | Ubuntu |
| Mechanical | |
| Dimensions (WxDxH) | 250Ă—160Ă—59mm (9.84Ă—6.3Ă—2.32 inches) |
| Weight (N.W.) | 3.5Kg (7.72lbs) |
| Mounting | Wall mount |
| Material | Aluminum |
| Environment | |
| Operating Temperature | -20 to 60°C(-4 to 140°F) |
| Storage Temperature | -40 to 85°C(-40 to 185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| IP Rating | IP65 compliant |
| Certification | |
| EMC | CE, FCC Class A |
The MVC-3100 in-vehicle box computer features an Intel®Elkhart Lake Celeron®J6412 processor, a rugged aluminum enclosure,and a fanless design with a fully sealed,IP65-rated housing. It includes IP65-protected M12 I/O connectors, operates across a wide temperature range of -20°C to 60°C, and supports 9–36V DC input with optional ACC ignition control. The system also offers flexible expansion options for Wi-Fi, Bluetooth, 4G LTE, GPS, and CAN 2.0B modules.
