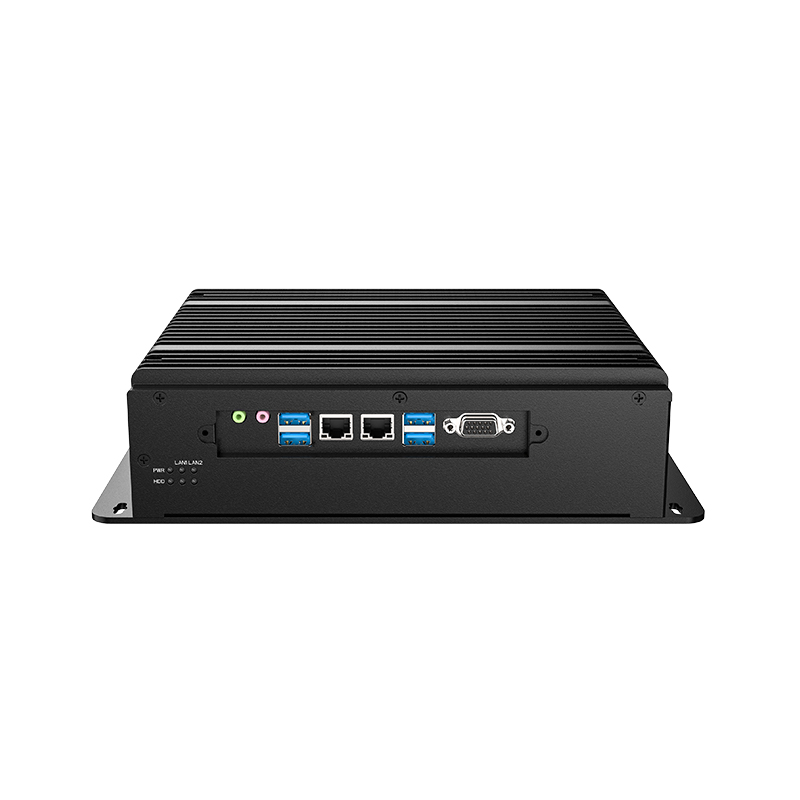

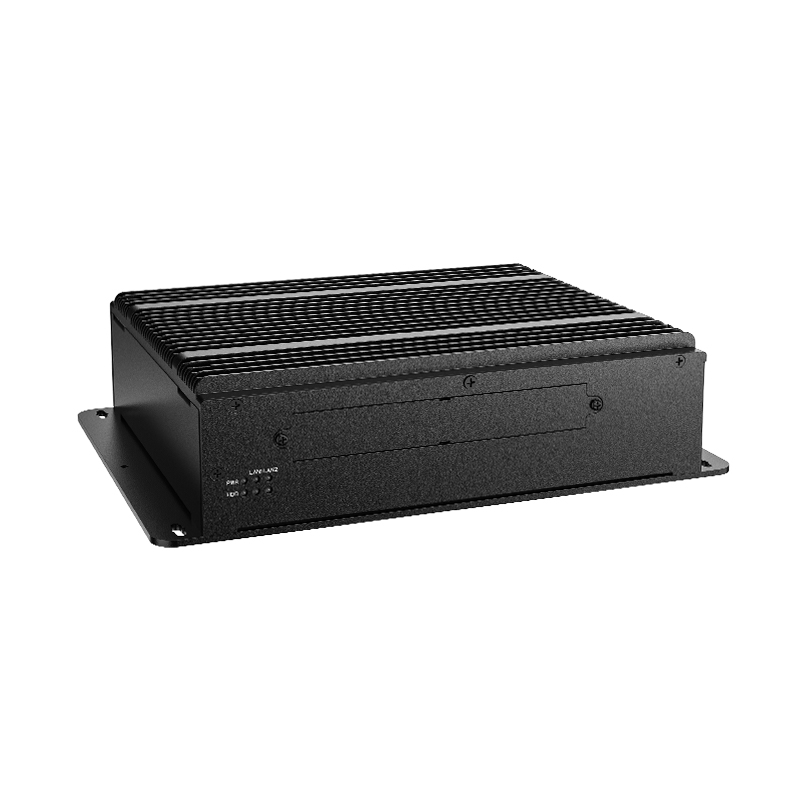

Darveen MVC-4246 Rugged Embedded Computer for Vehicle with Intel® Core-i Processor
006518-HW-DARVEEN-018
Overview
MVC series are rugged vehicle computers launched by Darveen for mining and other industries. They are equipped with Intel J1900 or Core-I low-power processor and pre-installed Windows operating system. It can fully utilize Microsoft Windows data processing capabilities in mobile vehicle and improve application and network management capabilities, while maintaining the flexibility and ease of use of multi-tasking applications.
| System | |
| CPU | Intel® Core™ I5-8265U/I7-8565U processor |
| Memory | 2x DDR4 SODIMM (Up to 32GB) |
| Storage | 1 x Mini-PCIe for mSATA |
| GPU | Intel® HD Graphics 620 |
| I/O Ports | |
| USB Port | 4x USB2.0 (M12) 4x USB3.0(Type A) |
| Serial Port | 6x COM (6 x RS-232/485) (M12, Isolated) |
| Ethernet | 2x GbE LAN (M12) 2x GbE LAN (RJ45) |
| Display Port | 1 x VGA (M12) 1 x VGA (DB15) |
| POE | 2 x PoE/PoE+(Optional, 802.3af/at) |
| CAN Bus | 2 x CAN2.0B (Optional) |
| Antenna Hole | 1 x M.2 3052 key B for 4G/5G |
| Expansion Slot | |
| Mini-PCIe | 2x mini PCIe (one is for mSATA) |
| RF Communication | |
| Wi-Fi | 802.11 a/b/g/n/ac (Optional) 802.11 a/b/g/n/ac/ax (Optional) |
| Cellular | 4G/LTE (Optional) |
| Bluetooth | BT 4.0/5.2 (Optional) |
| GNSS | GPS, Glonass, BeiDou, Galileo (Optional) |
| Audio | |
| Audio | Mic in, line out |
| Power | |
| DC Input | 9 to 36VDC |
| Power Consumption | 12W (Power adapter must be at least 72W) |
| Ignition ON/OFF | Optional, 5 to 32VDC-in, Vehicles need to have ACC signal Delay start, default 5 seconds Delay shutdown, default 10 seconds(Can be set by jumper) |
| Battery | Optional, 10~28V DC-in, Built-in 3350mAH lithium battery Delay start, default 5 seconds Delay shutdown, default 10 seconds(Can be set by jumper) |
| Power Mode | ATX/AT |
| Operating System | |
| Windows | Windows 10 |
| Linux | Ubuntu |
| Mechanical | |
| Dimensions (WxDxH) | 273.6 x 199.2 x 65.6 mm(10.78 x 7.84 x 2.58 inches) |
| Weight (N.W.) | 4kg （8.82 lbs） |
| Mounting | Desktop |
| Material | Aluminum and SGCC |
| Environment | |
| Operating Temperature | -30 to 70℃ |
| Storage Temperature | -40 to 85℃ |
| Relative Humidity | 5% to 95% (non-condensing) |
| Certification | |
| EMC | CE, FCC |
MVC series can be extended to 802.11a/b/g/n/ac, Bluetooth V4.0, full Netcom LTE, dedicated network 1.4G/1.8G LTE, GPS/GNSS/Beidou/RTK, CAN2.0B and other modules, 8~36V wide voltage DC input power management with Power ignition delay switch function, in addition, the whole series adopts high-strength and thickened metal shell, which meets the STD-MIL-810G anti-vibration and shock standard, and can still operate freely in the most severe environments.
