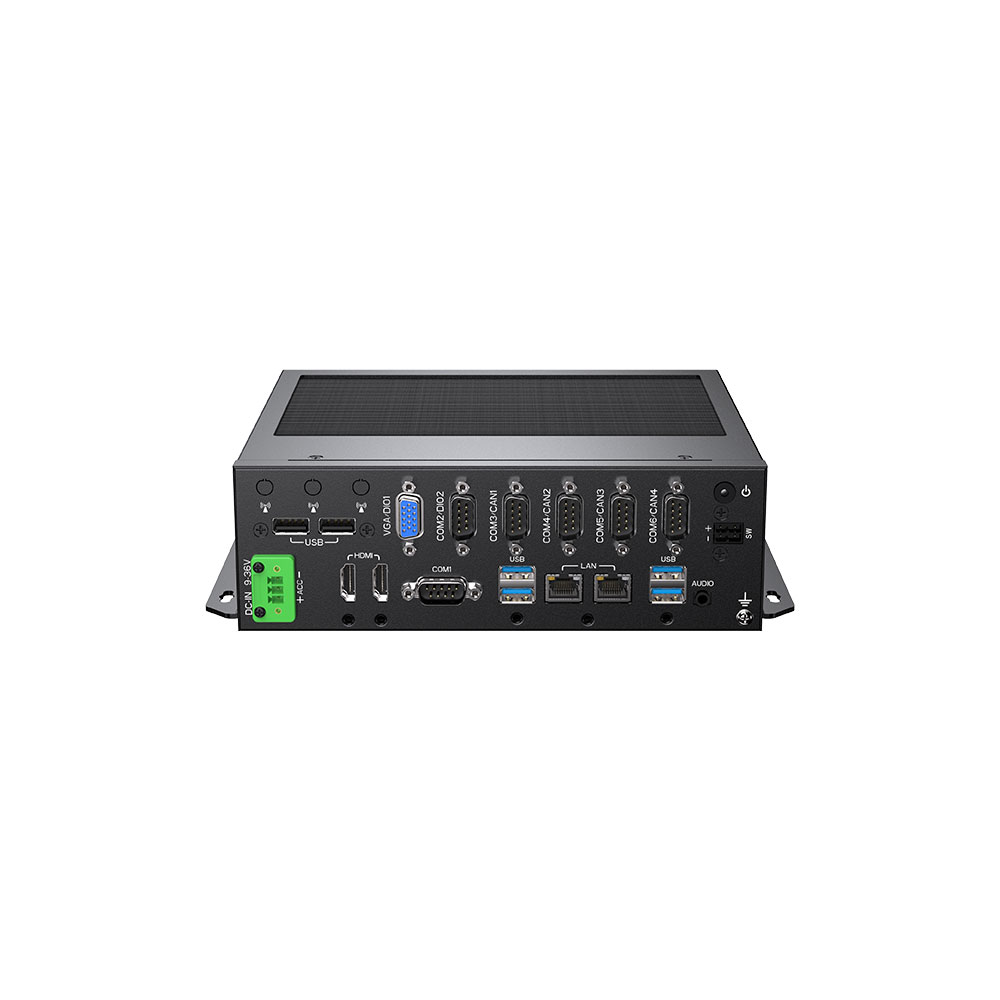

Darveen VC-2300 IntelĀ® Coreā¢ i3/i5/i7 Processor Rugged Embedded Computer for Vehicle with 6x COM, 6x USB, 2x LAN
TF:
006516-HW-DARVEEN-016
Overview
VC series are rugged vehicle computers launched by Darveen for mining and other industries. They are equipped with IntelĀ® Core-I processor and pre-installed Windows operating system. It can fully utilize Microsoft Windows data processing capabilities in mobile vehicle and improve application and network management capabilities, while maintaining the flexibility and ease of use of multi-tasking applications.
| System | |||
| CPU | IntelĀ® Coreā¢ i3-1115G4/i7-1195G7 | Intel Ā® Coreā¢ i3-1215U/i5-1235U/i7-1255U | Intel Ā® Coreā¢ i3-1315U/i5-1335U/i7-1355U |
| CPU TDP | 15 to 55W | ||
| Memory | 1x DDR4 3200 MHz SO-DIMM up to 32GB | ||
| Storage | 1x 2.5ā³ SATA HDD 1x M.2 2280 NVME, 1x MSATA | ||
| BIOS | AMI UEFI | ||
| TPM | BIOS | ||
| Watchdog Timer | Software Programmable supports 256 levels system reset | ||
| I/O Ports | |||
| USB Port | 2x USB 2.0, 4x USB3.0 | ||
| Serial Port | 6x RS-232(2x RS-232/485) | ||
| Ethernet | 2x RJ45 GbE LAN | ||
| Display Port | 2x HDMI, 1x VGA | ||
| SIM Card Slot | 1 x SIM Card slot (inside) | ||
| CAN Bus | 4 x CAN2.0B (Optional) | ||
| DIO | 16x Opto-isolated DIO (optional) | ||
| Antenna Hole | 3x SMA-type | ||
| Expansion Slot | |||
| Mini-PCIe | 1x Full length mini PCIe, Half length mini PCIe | ||
| M.2 | 1x M.2 2280 NVME | ||
| RF Communication | |||
| Wi-Fi | Mini PCle(share with MSATA) | ||
| Cellular | Mini PCIe(share with MSATA) | ||
| Bluetooth | Mini PCle(share with MSATA) | ||
| GNSS | Mini PCIe(share with MSATA) | ||
| Audio | |||
| Audio | Mic in, line out | ||
| Power | |||
| DC Input | 9-36VDC | ||
| Remote Power On/Off | 4-Pin Remote SW&Power LED | ||
| Ignition ON/OFF | ACC function (optional) | ||
| Button | Yes | ||
| Power Mode | ATX/AT | ||
| Operating System | |||
| Windows | Windows 10, Windows 11 | ||
| Linux | Ubuntu | ||
| Mechanical | |||
| Dimensions (WxDxH) | 200 x 180 x 65mm (7.87 x 7.09 x 2.56 inches) | ||
| Weight (N.W.) | 3kg (6.61 lbs) | ||
| Mounting | Wall mount | ||
| Material | Aluminum alloy | ||
| Environment | |||
| Operating Temperature | -20 to 70Ā°C (-4 to 158Ā°F) | ||
| Storage Temperature | -40 to 85Ā°C(-40 to 185Ā°F) | ||
| Relative Humidity | 10% to 95% @40Ā°C (104Ā°F), non-condensing | ||
| Certiļ¬cation | |||
| EMC | CE, FCC Class A | ||
Fanless embedded PC with 6x COM, 6x USB, 2x LAN, 4 x CAN2.0B, -20 to 70Ā°C wide temp, ideal for fleet management and harsh vehicle environments.
