Darveen VT-708K 10.1ā³ Windows Vehicle Mount Computer with IntelĀ® CeleronĀ® Processor
006512-HW-DARVEEN-012
Overview

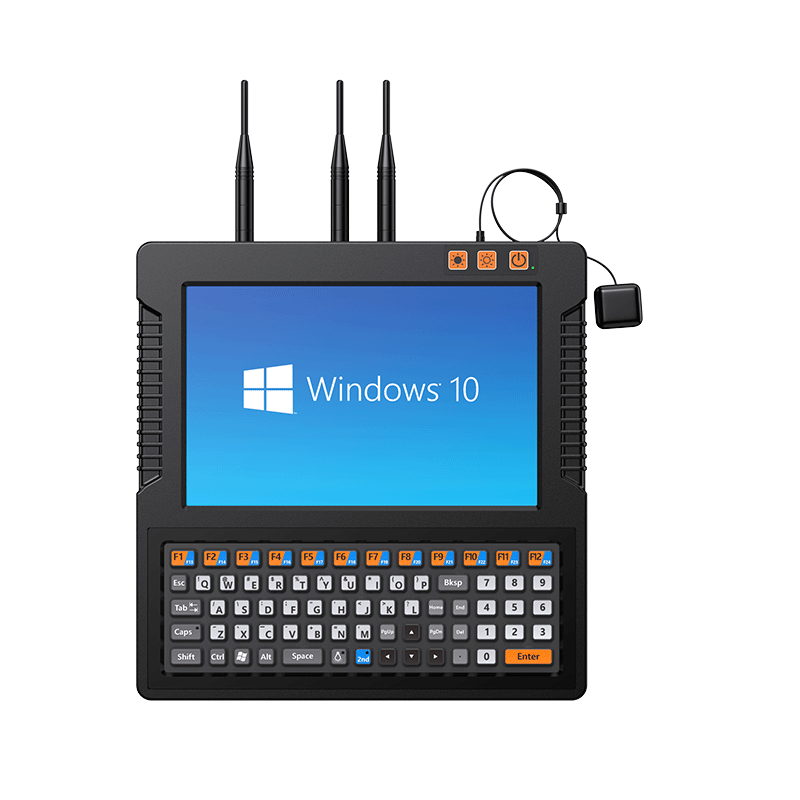

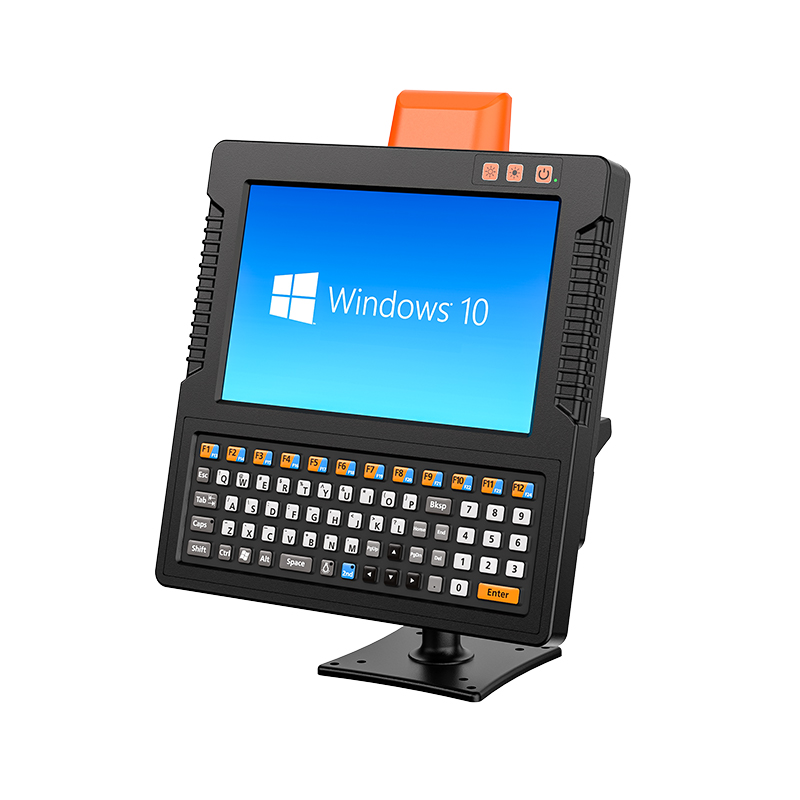

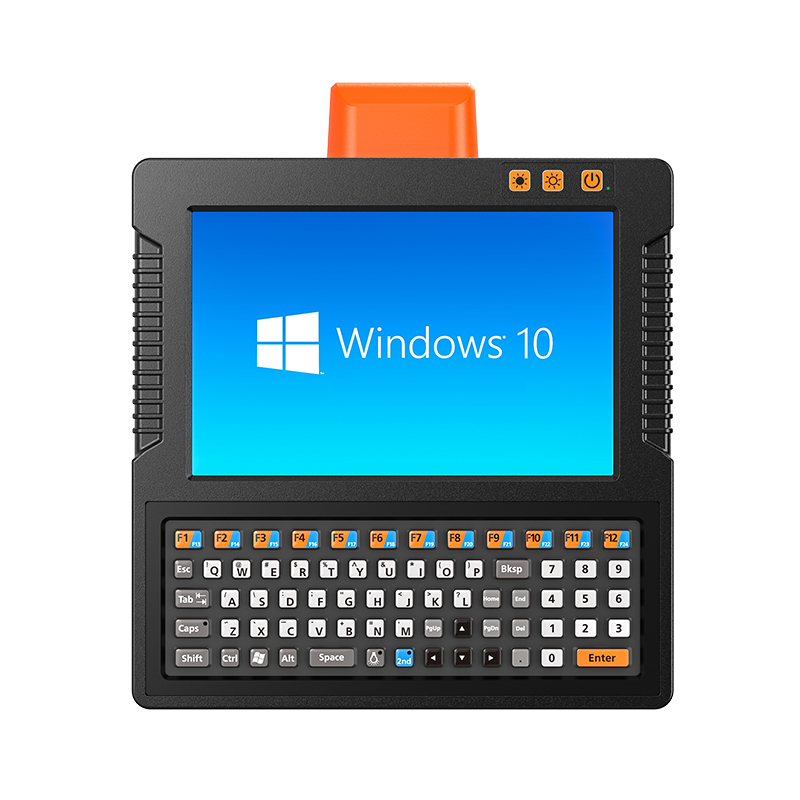

The VT-708K is a ruggedized vehicle-mounted computer powered by an IntelĀ® CeleronĀ® processor, featuring a 10.1-inch industrial resistive touchscreen with brightness up to 1,000 nits and an integrated QWERTY keyboard.
| Display | |
| Size | 10.1 inch (16:10) |
| Touch Type | 5-wire resistive touch |
| Display Type | TFT LCD |
| Resolution | 1280 x 800 |
| Luminance | 1000 nits |
| Contrast Ratio | 900: 1 |
| View Angles | 85 (left), 85 (right), 85 (up), 85 (down) |
| Color | 16.7M |
| System | |
| CPU | IntelĀ® CeleronĀ® J1900 processor (quad core, 2.0 GHz) |
| Chipset | IntelĀ® AtomĀ® and CeleronĀ® Processor SoC |
| Memory | 4GB DDR3L-1333 SO-DIMM (up to 8GB) |
| Storage | 128GB mSATA SSD (up to 512GB) |
| Graphics | IntelĀ® HD Graphics |
| BIOS | SPI BIOS |
| Keypad & Keyboard | |
| Keypad | Power on/off Brightness adjustment, Power LED indicator |
| Keypad | 70-keys QWERTY Keyboard F1-F24 FuncBon Keys, 0-9 Number and A-Z Alpha Keys All Keys LED Backlight, Independent Switch Control, Day and Night Mode |
| I/O Ports | |
| USB | 1x USB 2.0 (Type A) 1x USB 3.0 (Type A) |
| Serial | 1x RS-232/422/485 (COM1 supports 5V/12V, DB9) 1x RS-232 (COM2 supports 5V, DB9) |
| Ethernet | 1x GbE LAN |
| SIM Card Slot | 1x Nano SIM socket |
| DIO | 4x DI + 2x DO (optional, with 3.3V, replace COM2 port) |
| CAN bus | 2x CAN2.0B (optional, supports J1939 protocol, compatible-layout with COM2 port) |
| Antenna | 2-4x TNC connector for external antenna (Wi-Fi, Bluetooth, WWAN, GPS) |
| RF Communication | |
| Wi-Fi | Wi-Fi 5: 802.11a/b/g/n/ac, 2.4G/5G (optional) Wi-Fi 6E: 802.11a/b/g/n/ac/ax, 2.4G/5G (optional) |
| Cellular | 4G, LTE (optional) 5G, NSA/SA (optional) |
| Bluetooth | Bluetooth 4.0/5.3 (optional) |
| GNSS | GPS, GLONASS, Galileo, BeiDou (optional, Ublo x NEO M8N) |
| Audio | |
| Speaker | 8Ī©/2W, mono speaker |
| Power | |
| DC Input | 8 to 36VDC |
| Power Consumption | 18W (Typ.) |
| Ignition On/Off | Power on delay, default 10 seconds Power off delay, default 10 seconds (on/off delay time can be changed via BIOS setting) |
| Battery | 7.2V 3350mAh (optional) |
| Power Mode | ATX (default), AT |
| Operating System | |
| Windows | Windows 10 IoT Enterprise LTSC Windows 10 Pro |
| Mechanical | |
| Dimensions (W x D x H) | 280 x 285 x 73 mm (11.02 x 11.22 x 2.87 inches) |
| Weight (N.W.) | 3.8 kg (8.38 lbs) |
| Mounting Mode | VESA 75 and 100 |
| Material | Die-casting aluminum with heavy duty metal |
| Environment | |
| Operating Temperature | -20 to 60ā (-4 to 140Ā°F) |
| Storage Temperature | -40 to 70ā (-40 to 158Ā°F) |
| Relative Humidity | 95% @ 70Ā°C (158Ā°F), non-condensing |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP Rating | IP65 compliant (I/O interface must be closed) |
| Certification | |
| EMC | CE, FCC |
It offers the choices of Windows-based OS, ensuring compatibility with most applications and optimizing network management systems. The VESA 75 and 100 mounts make installation in forklifts, cranes, trucks easy, while flexible WiFi 6E, Bluetooth V5.3, 4G LTE/5G, GNSS, and CAN2.0B expansion options ensure always connected. Furthermore, it has an 8 to 36V wide-range DC input with power ignition function, allowing it to adapt to different power systems. It complies with the MIL-STD-810G military standards for shock and vibration resistance, and it is IP65 rated for protection against dust and water, ensuring its reliability in challenging environments.
