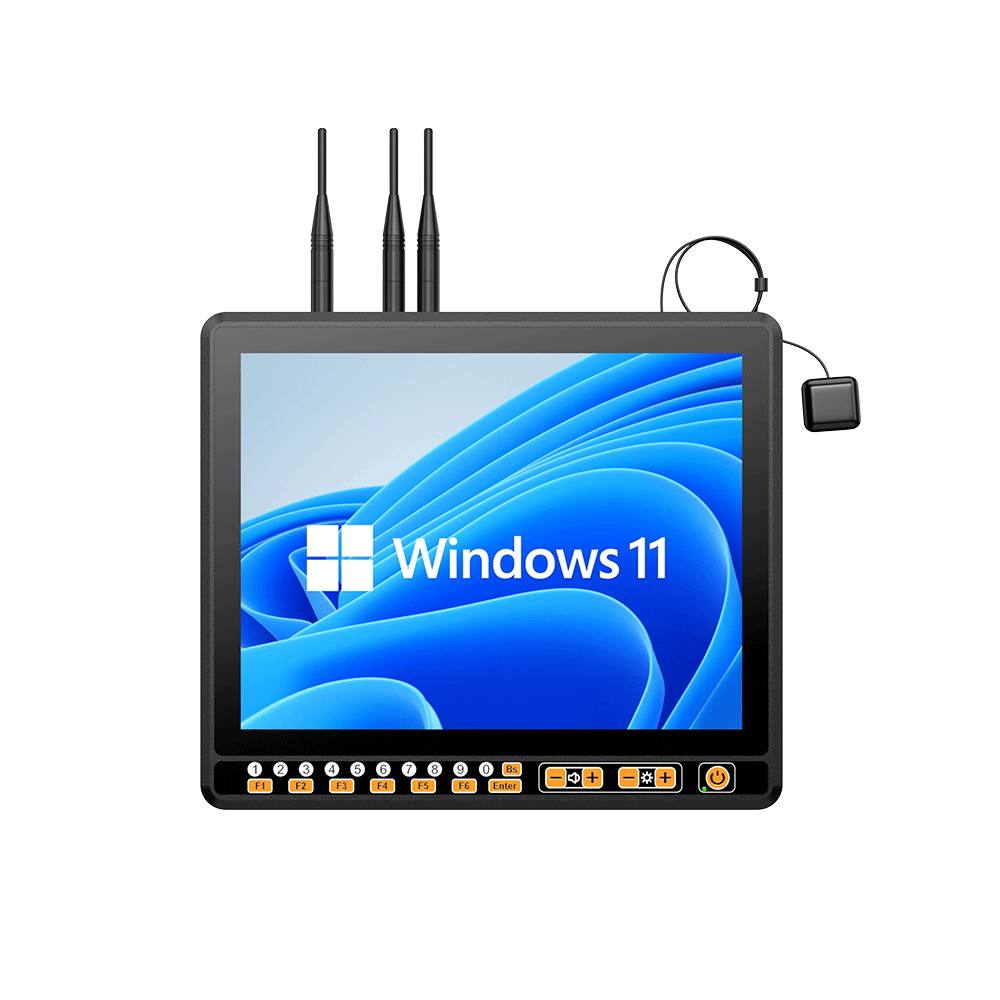

Darveen VT-979 15ā³ Windows Vehicle Mount Computer with IntelĀ® 12th Gen Core-i Processor
TF:
006506-HW-DARVEEN-006
Overview
The VT-979 is a ruggedized vehicle-mounted computer with an Intel Alder Lake platform processor and Windows 11 OS, offering full Windows computing power in a mobile environment.
| Display | |
| Size | 15 inch (4:3) |
| Touch Type | Projected capacitive multi touch, 5-wire resistive touch (optional) |
| Display Type | TFT LCD |
| Resolution | 1024 x 768 |
| Luminance | 1000 nits |
| Contrast Ratio | 1000: 1 |
| View Angles | 89 (left), 89 (right), 89 (up), 89 (down) |
| Color | 16.7M |
| System | |
| CPU | IntelĀ® Core i5-1235U, IntelĀ® 7, 10-core(2P8E), Max Turbo 4.4GHz |
| Chipset | IntelĀ® 12th GEN Alder Lake Platform |
| Memory | 8GB DDR4-2666 SO-DIMM (up to 32GB) |
| Storage | 256GB M.2 2280 SATA SSD (up to 2TB) |
| Graphics | IntelĀ® IrisĀ® Xe Graphics |
| BIOS | AMI UEFI BIOS |
| Keypad & Keyboard | |
| Keypad | Power on/off Brightness and volume adjustment 0-9 numeric, Enter and Backspace F1-F6 user-defined function keys Power LED indicator |
| I/O Ports | |
| USB | 6x USB 3.0 (Type A) |
| Serial | 1x RS-232 (COM1, DB9) |
| Ethernet | 2x GbE LAN |
| SIM Card Slot | 1x SIM socket |
| Display | 1x HDMI (Type A) 1x DP++ (Type A) |
| Audio | 3.5mm Audio Jack (Mic-in/Line-out) |
| Antenna | 2-8x TNC connector for external antenna (Wi-Fi, Bluetooth, WWAN, GPS) |
| RF Communication | |
| Wi-Fi | Wi-Fi 6E: 802.11a/b/g/n/ac/ax, 2.4G/5G/6G (optional) Wi-Fi 7: 802.11a/b/g/n/ac/ax/be, 2.4G/5G/6G (optional) |
| Cellular | 4G, LTE (optional) 5G, NSA/SA (optional) |
| Bluetooth | Bluetooth 5.3 (Depend on Wi-Fi 6E, optional) Bluetooth 5.4 (Depend on Wi-Fi 7, optional) |
| GNSS | GPS, GLONASS, Galileo, BeiDou (optional, Ublo x NEO M8N) |
| Audio | |
| Speaker | 8Ī©/2W, dual studio speakers |
| Power | |
| DC Input | 8 to 36VDC |
| Power Consumption | 25W (Typ.) |
| Power Mode | ATX (default), AT |
| Operating System | |
| Windows | Windows 11 IoT Enterprise LTSC Windows 11 Pro Windows 10 Pro Windows 10 IoT Enterprise LTSC |
| Mechanical | |
| Dimensions (W x D x H) | 355 x 304 x 69 mm (13.97 x 11.96 x 2.71 inches) |
| Weight (N.W.) | 4.8 kg (10.58 lbs) |

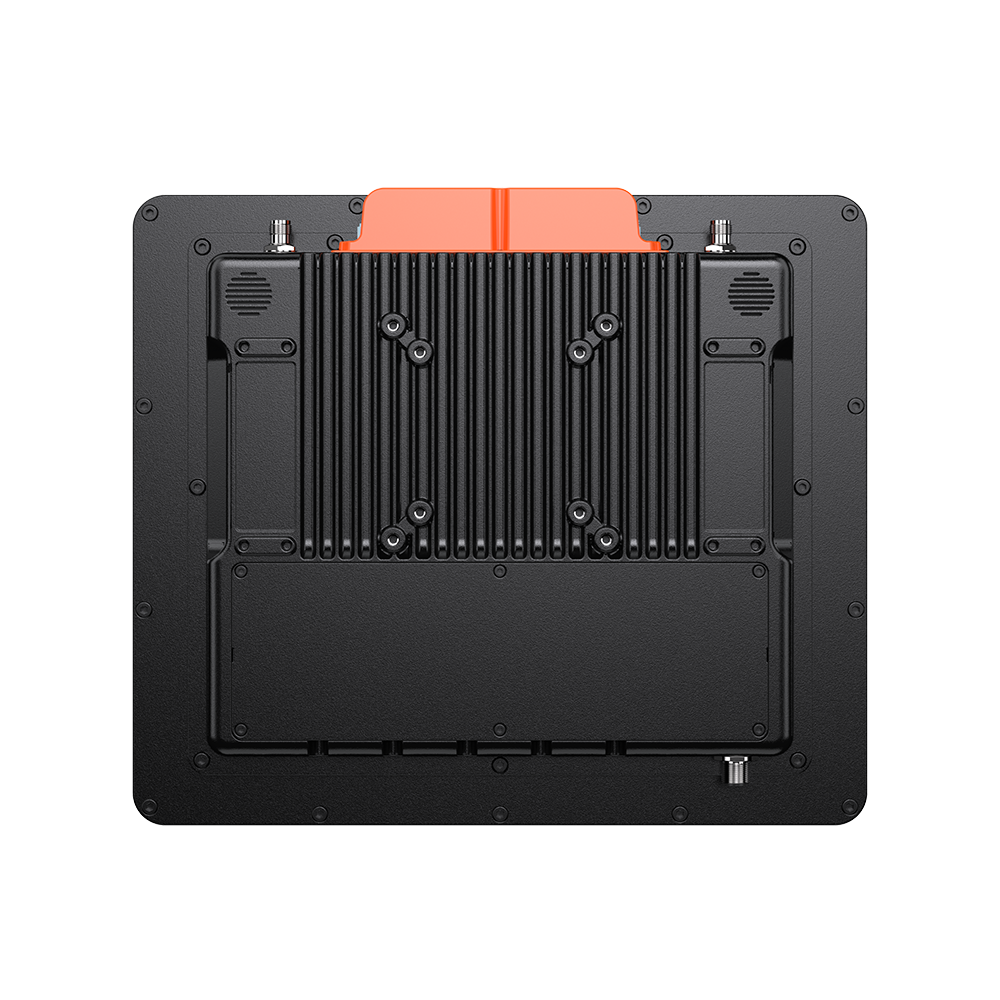

| Mounting Mode | VESA 75 and 100 |
| Material | Die-casting aluminum with heavy duty metal |
| Environment | |
| Operating Temperature | -30 to 60ā (-22 to 140Ā°F) |
| Storage Temperature | -40 to 70ā (-40 to 158Ā°F) |
| Relative Humidity | 95% @ 70Ā°C (158Ā°F), non-condensing |
| Shock | MIL-STD-810H Method 514.8 Procedure I |
| Vibration | MIL-STD-810H Method 516.8 Procedure I |
| IP Rating | IP66 compliant (I/O interface must be closed) |
| Certification | |
| EMC | CE, FCC |
It features a 15-inch industrial touch screen, WiFi 7, Bluetooth 5.4, 4G/5G, GNSS, and 8 to 36V DC input, making it suitable for warehousing, logistics, and container trucks. It meets MIL-STD-810H for anti-shock/vibration and IP66 for dust/water resistance, allowing operation in demanding environments.
