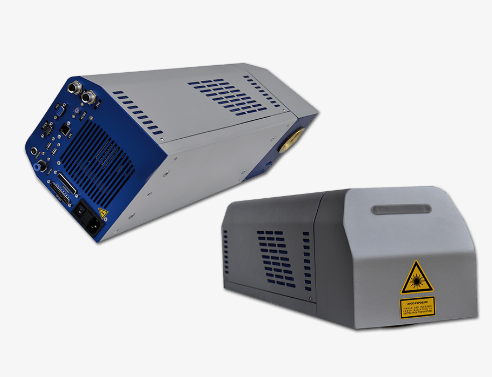

Datalogic EOX Scanner

  • NG # 005028-HW-DATALOGIC-028

Manufactured by:

This seller generally responds in under 48 hours

Extremely reliable, Datalogic EOX family offers high quality permanent marking on a  widest range of material.


Specification

Product TypeCO₂ Laser Marker (not a barcode scanner)
Power Options10 W or 30 W
Lens OptionsF-100 mm or F-200 mm
Laser SpecsClass 4 CO₂, 10.6 µm wavelength, 3 mW aiming beam
ControllerEmbedded: 4-axis control, I/O, encoder & photocell connectors
Dimensions & Weight~180 × 185 × 634 mm; ~17 kg
Power Supply100–240 VAC, 50–60 Hz
Operating Temp15 °C to 35 °C
ThroughputUp to 12,000 pcs/hour; 75 m/min production line speed
IntegrationAll-in-one device with integrated PC; remote control via USB/network
SupportEaseOfCare services available; technical documentation provided

Description

Its configuration offers extreme flexibility for the integration both in production line as well as in stand-alone systems.
EOX embedded controller and the advanced features of its marking platform, EOX offers permanent coding and marking opportunity in a variety of applications.
The eox is available at 10 W and 30 W.
